Here you will find all available parts and drawings of the 'Bosch 0601921723 (GBM7,2VE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

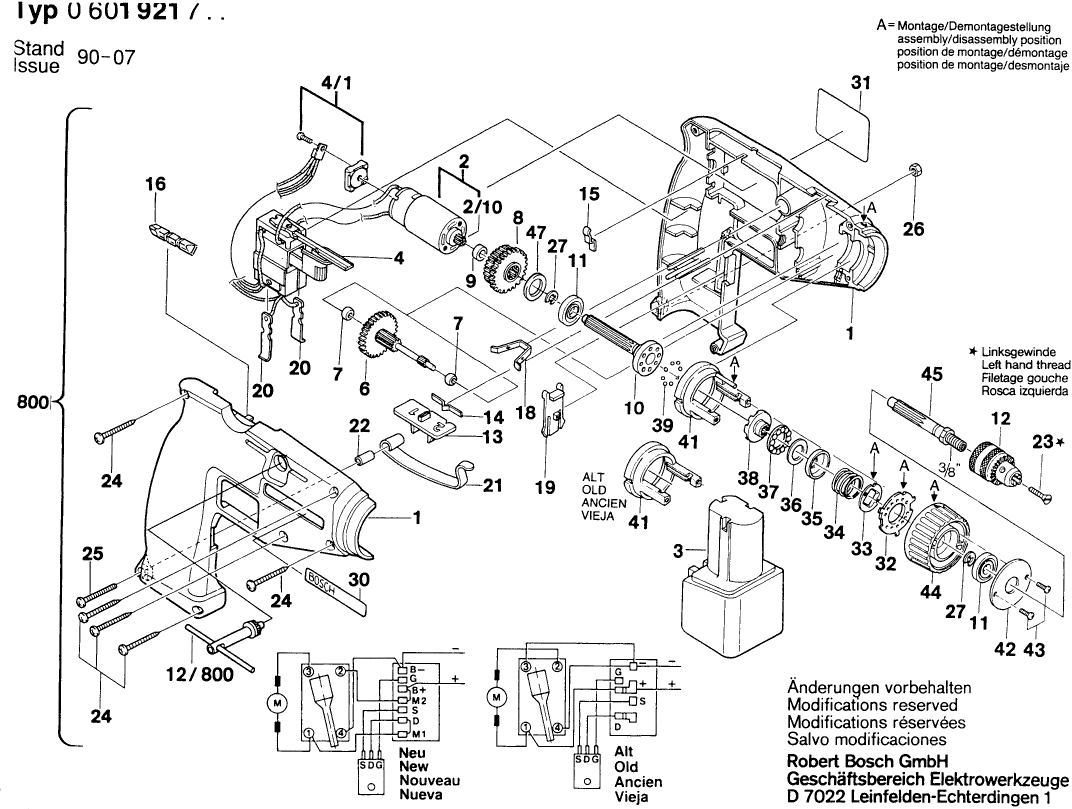

Technical drawing of model Bosch 0601921723 (GBM7,2VE)
Spare parts list of model Bosch 0601921723 (GBM7,2VE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609340022 | 58.79 | 71.14 | |
| DC motor 7,2V | ||||
| 2 | 1609340003 | 29.75 | 36.00 | |
| Pinion | ||||
| 2/10 | 2606316112 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 3 | 1609340000 | |||
| On-Off Switch | ||||
| 4 | 2607200302 | 47.53 | 57.51 | |
| Heat Sink | ||||
| 4/1 | 2605715000 | 4.18 | 5.06 | |
| Toothed Shaft | ||||
| 6 | 1609340005 | 14.94 | 18.08 | |
| Sintered-Metal Bushing | ||||
| 7 | 2600302002 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 8 | 1609340007 | 13.13 | 15.89 | |
| Sintered-Metal Bushing | ||||
| 9 | 2600301011 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 10 | 1609340023 | |||
| groove ball bearing | ||||
| 11 | 1900900270 | 18.94 | 22.92 | |
| Key Chuck | ||||
| 12 | 1608571058 | 0.83 | 1.00 | |
| Chuck Wrench | ||||
| 12/800 | 1607950042 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 13 | 1609340010 | 1.24 | 1.50 | |
| Ratchet Spring | ||||
| 14 | 1609340011 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 15 | 1609340012 | |||
| Screwdriver Blade | ||||
| 16 | 1609200147 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 18 | 2601250003 | |||
| Locking Lever | ||||
| 19 | 1609340014 | 1.24 | 1.50 | |
| Contact Spring | ||||
| 20 | 2601324012 | 1.49 | 1.80 | |
| Spring Clip Ø 6,2 MM | ||||
| 21 | 1609340016 | 2.71 | 3.28 | |
| Spacer Sleeve | ||||
| 22 | 1609340017 | 1.24 | 1.50 | |
| Countersunk-Head Screw | ||||
| 23 | 2609110721 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 24 | 1609340019 | 1.24 | 1.50 | |
| Socket head cap screw | ||||
| 25 | 2910021130 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 26 | 2915011005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 27 | 1609340020 | |||
| Manufacturer's nameplate | ||||
| 30 | 1601110217 | 1.24 | 1.50 | |
| Nameplate | ||||
| 31 | 1601110272 | 0.83 | 1.00 | |
| Nameplate | ||||
| 31 | 1601110351 | 0.83 | 1.00 | |
| Perforated Panel | ||||
| 32 | 1609340024 | 8.06 | 9.75 | |
| Locating Washer | ||||
| 33 | 1609340025 | 1.73 | 2.09 | |
| Compression Spring | ||||
| 34 | 2604618000 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 35 | 1609340027 | |||
| No longer available, no replacement | ||||
| 36 | 1609340028 | |||
| No longer available, no replacement | ||||
| 37 | 1609340029 | |||
| Disc Cam | ||||
| 38 | 1609340030 | 25.28 | 30.59 | |
| Ball | ||||
| 39 | 1903230007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 41 | 1609340032 | |||
| No longer available, no replacement | ||||
| 42 | 1609340033 | |||
| Socket head cap screw DIN 84-AM5x8-8.8 | ||||
| 43 | 2910021150 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 44 | 2605190014 | |||
| Threaded Spindle | ||||
| 45 | 1609340035 | 47.68 | 57.69 | |
| Sticker | ||||
| 46 | 2601110230 | 1.49 | 1.80 | |
| Shim | ||||
| 47 | 1609340053 | 1.73 | 2.09 | |
| Fast Charger | ||||
| 650 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 650 | 2607224431 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 650 | 2607224435 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 650 | 2607224701 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 650 | 2607224703 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 650 | 2607224427 | 110.30 | 133.46 | |
| Fast Charger | ||||
| 650 | 2607224443 | 98.18 | 118.80 | |
| No longer available, no replacement | ||||
| 800 | 0601921723 | |||
