Here you will find all available parts and drawings of the 'Bosch 0601932770 (GBM7,2VE-1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

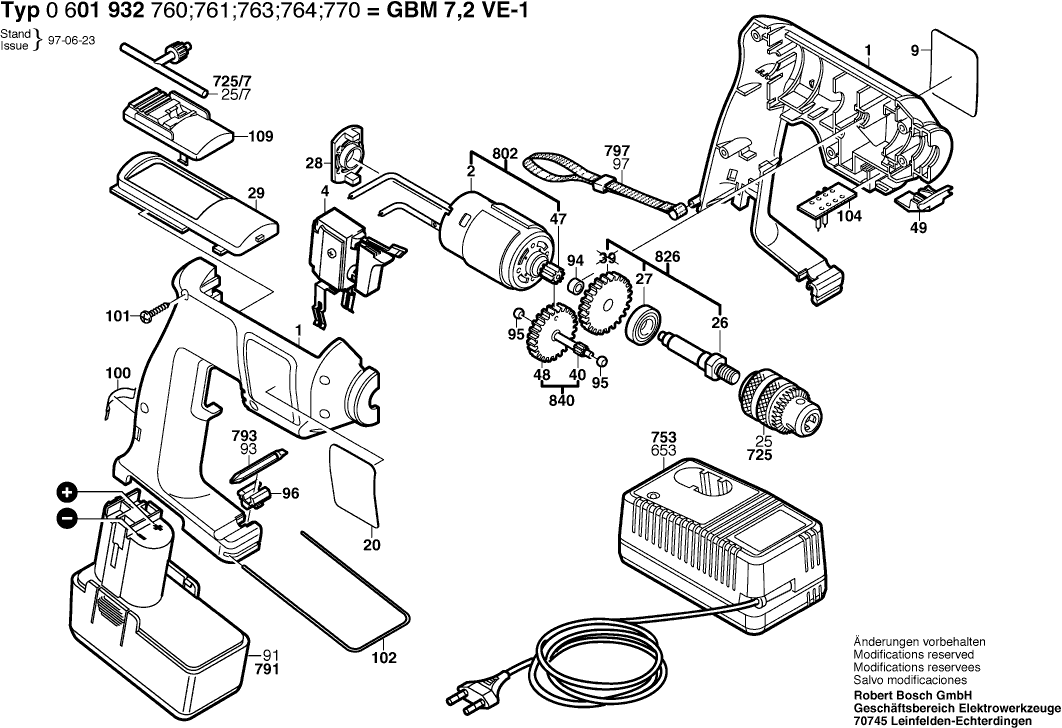

Technical drawing of model Bosch 0601932770 (GBM7,2VE-1)
Spare parts list of model Bosch 0601932770 (GBM7,2VE-1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle Cover BLUE | ||||
| 1 | 2605104402 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 4 | 2607200309 | |||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118392 | 1.94 | 2.35 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118393 | 1.94 | 2.35 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 27.81 | 33.65 | |
| Adapter Insert | ||||
| 28 | 2605719007 | 1.49 | 1.80 | |
| Insert Piece BLACK | ||||
| 29 | 2605510115 | 4.70 | 5.69 | |
| Pinion | ||||
| 47 | 2606316120 | 7.46 | 9.03 | |
| Cylindrical Gear Z=63 | ||||
| 48 | 2606316119 | 7.58 | 9.17 | |
| Insert Piece | ||||
| 49 | 2605510117 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.49 | 1.80 | |
| Support | ||||
| 96 | 2608040131 | 2.08 | 2.52 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 2.08 | 2.52 | |
| Screw | ||||
| 101 | 2603490022 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| Contact retainer | ||||
| 104 | 2608018004 | 5.81 | 7.03 | |
| Support | ||||
| 108 | 2602180001 | 1.00 | 1.21 | |
| Toolholder | ||||
| 109 | 2608040078 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 725 | 2608571032 | |||
| Chuck Wrench | ||||
| 725/7 | 1607950053 | 1.00 | 1.21 | |
| Fast Charger | ||||
| 753 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 753 | 2607224701 | 122.80 | 148.59 | |
| Slide-In Accu Package 7,2V,1,5Ah,NiCd | ||||
| 791 | 2607336141 | 55.25 | 66.85 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| DC motor 7,2V | ||||
| 802 | 2607022917 | 20.42 | 24.71 | |
| Drilling Spindle 3/8" | ||||
| 826 | 2606135918 | 13.93 | 16.86 | |
| Intmd. Transmission Hsg Z= 12/63 | ||||
| 840 | 2606308916 | 13.93 | 16.86 | |
