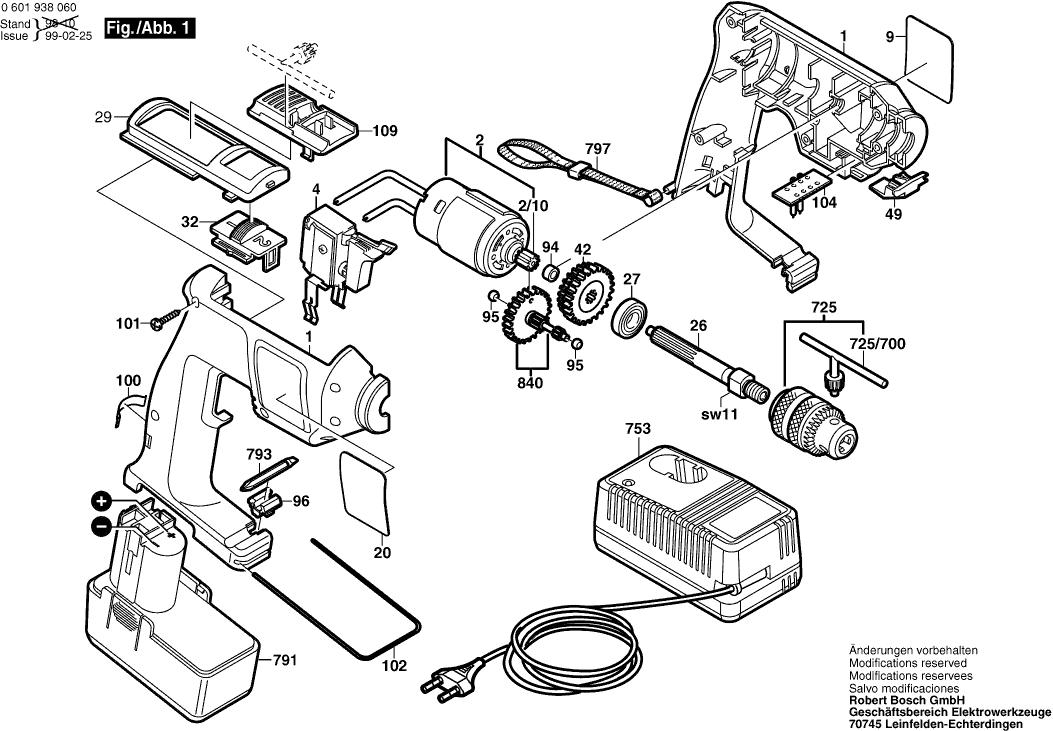

Technical drawing of model Bosch 0601938060 ( GBM7,2V-2 )
Spare parts list of model Bosch 0601938060 ( GBM7,2V-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104421 | 12.41 | 15.02 | |
| DC motor 9,6-12V | ||||
| 2 | 2607022928 | 36.85 | 44.59 | |
| Pinion Z=11 | ||||
| 2/10 | 2606316112 | 3.31 | 4.01 | |
| On-Off Switch | ||||
| 4 | 2607200317 | 20.42 | 24.71 | |
| Sticker SUNNY SIDE | ||||
| 9 | 2601118534 | 0.83 | 1.00 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601118535 | 0.83 | 1.00 | |
| Drilling Spindle 3/8" | ||||
| 26 | 2606309915 | 13.93 | 16.86 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Insert Piece BLACK | ||||
| 29 | 2605510137 | 1.94 | 2.35 | |
| Adjusting Slide BLACK | ||||
| 32 | 2601099056 | 1.18 | 1.43 | |
| Cylindrical Gear Z=58/67 | ||||
| 42 | 1609340007 | 11.88 | 14.37 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.18 | 1.43 | |
| Support | ||||
| 96 | 2608040131 | 1.70 | 2.06 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Screw 4x16 | ||||
| 101 | 2603490022 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| Toolholder | ||||
| 109 | 2608040078 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 725 | 2608571032 | |||
| No information available, not orderable | ||||
| 725/700 | 1607950053 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Slide-In Accu Package 7,2V,1,5Ah,NiCd | ||||
| 791 | 2607336141 | 55.25 | 66.85 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Toothed Shaft Z=10/19/81 | ||||
| 840 | 1609340005 | 12.41 | 15.02 | |
| No information available, not orderable | ||||
| 899 | 0601938070 | |||
