Here you will find all available parts and drawings of the 'Bosch 0601144508 ( GBM450RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

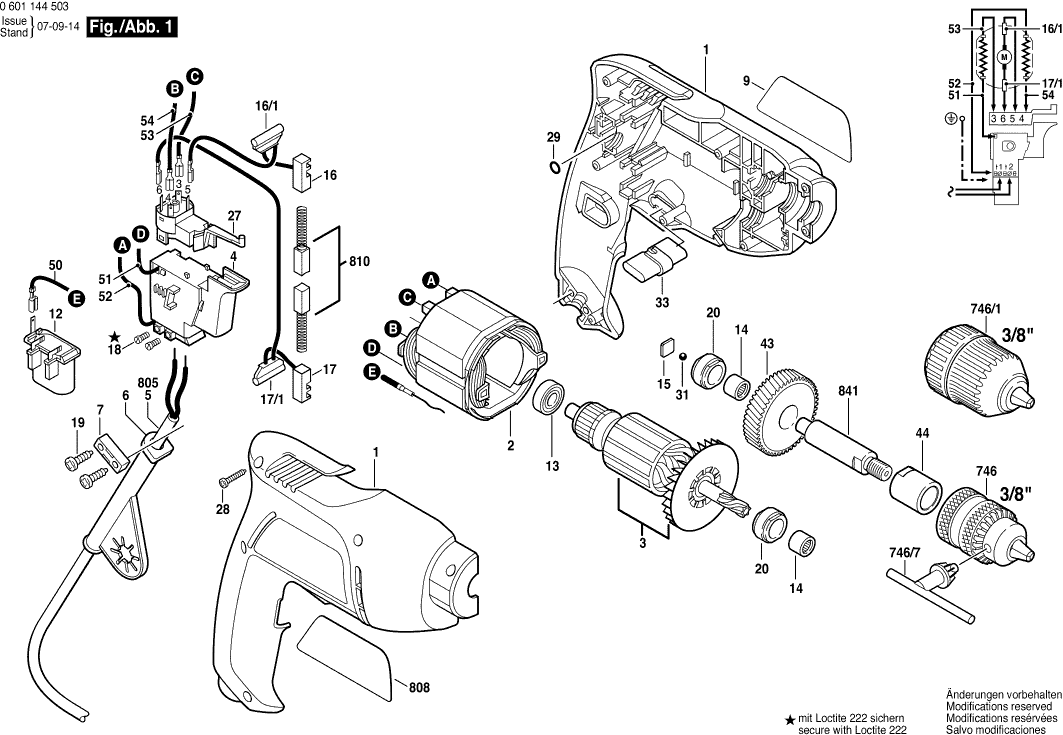

Technical drawing of model Bosch 0601144508 ( GBM450RE )
Spare parts list of model Bosch 0601144508 ( GBM450RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104590 | 10.73 | 12.98 | |
| Field 220-240V | ||||
| 2 | 2604220625 | 13.93 | 16.86 | |
| Armature 220-240V | ||||
| 3 | 2604011203 | 29.75 | 36.00 | |
| Switch | ||||
| 4 | 2607200398 | 18.19 | 22.01 | |
| Grommet Ø6,9 MM | ||||
| 6 | 2600707059 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 2609130751 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing 8x19x6 | ||||
| 13 | 2600905046 | 8.45 | 10.22 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 14 | 2600917003 | 2.24 | 2.71 | |
| Pressure Plate | ||||
| 15 | 2609110019 | 1.94 | 2.35 | |
| Suppressor Box | ||||
| 16/1 | 2604465108 | 3.31 | 4.01 | |
| Suppressor Box | ||||
| 17/1 | 2604465107 | 1.94 | 2.35 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| Bearing Piece | ||||
| 20 | 2609110018 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 27 | 2607200416 | 10.73 | 12.98 | |
| Tapping Screw | ||||
| 28 | 2603435065 | 1.18 | 1.43 | |
| O-Ring 5,0x1,5 MM | ||||
| 29 | 1900210000 | 1.18 | 1.43 | |
| Ball DIN 5401-5 G28 | ||||
| 31 | 1903230009 | 0.83 | 1.00 | |
| Protection cover | ||||
| 33 | 2609100002 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 43 | 2609110021 | |||
| No longer available, no replacement | ||||
| 44 | 2600301013 | |||
| Earth Conductor | ||||
| 50 | 2609120006 | 1.94 | 2.35 | |
| Connecting Cable | ||||
| 51 | 2604448212 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 52 | 2604448060 | |||
| Connecting Cable | ||||
| 53 | 2609120004 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 54 | 2609120005 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 746 | 1608571047 | |||
| Chuck Wrench SG2 | ||||
| 746/7 | 2607950007 | 5.33 | 6.45 | |
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2604321904 | 7.58 | 9.17 | |
| Drilling Spindle 3/8" | ||||
| 841 | 2609110023 | 11.88 | 14.37 | |
