Here you will find all available parts and drawings of the 'Bosch 0601144503 (GBM450RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

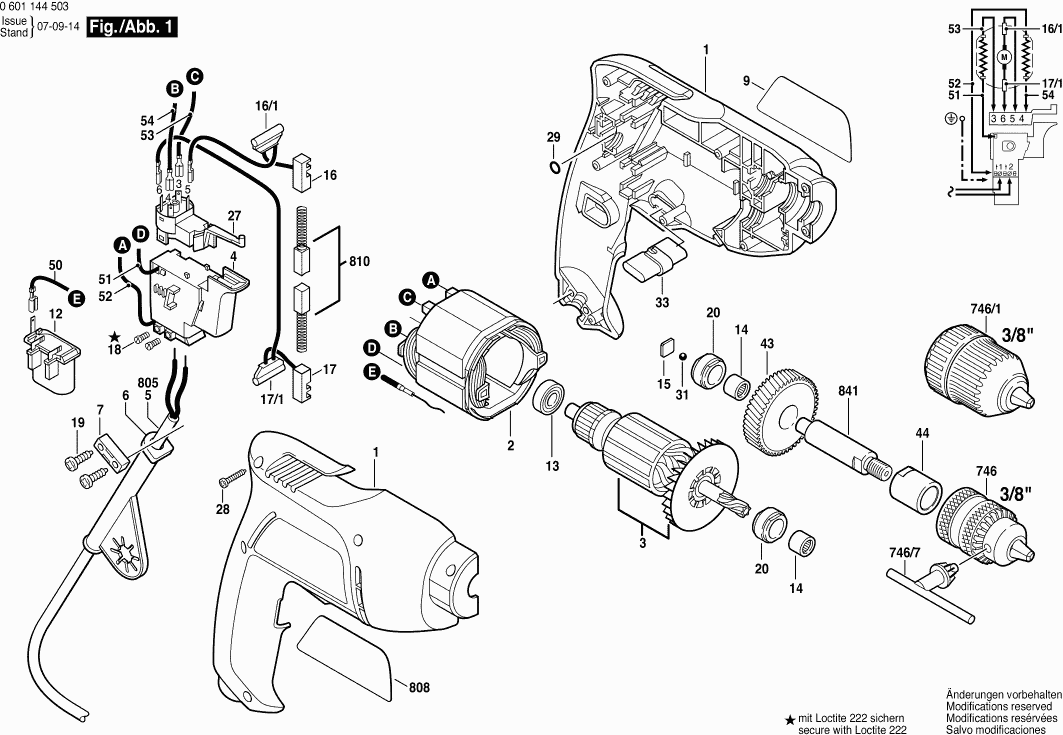

Technical drawing of model Bosch 0601144503 (GBM450RE)
Spare parts list of model Bosch 0601144503 (GBM450RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104590 | 11.65 | 14.10 | |
| Field | ||||
| 2 | 2604220625 | 15.26 | 18.46 | |
| Armature | ||||
| 3 | 2604011203 | 31.65 | 38.30 | |
| Switch | ||||
| 4 | 2607200398 | 20.39 | 24.67 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609130751 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing | ||||
| 13 | 2600905046 | 10.90 | 13.19 | |
| Needle-Roller Bearing | ||||
| 14 | 2600917003 | 2.86 | 3.46 | |
| Pressure Plate | ||||
| 15 | 2609110019 | 2.40 | 2.90 | |
| Suppressor Box | ||||
| 16/1 | 2604465108 | 3.71 | 4.49 | |
| Suppressor Box | ||||
| 17/1 | 2604465107 | 2.00 | 2.42 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910611019 | 2.86 | 3.46 | |
| Bearing Piece | ||||
| 20 | 2609110018 | 1.24 | 1.50 | |
| Change-Over Switch | ||||
| 27 | 2607200416 | 11.65 | 14.10 | |
| Tapping Screw | ||||
| 28 | 2603435065 | 1.24 | 1.50 | |
| O-Ring | ||||
| 29 | 1900210000 | 1.49 | 1.80 | |
| Ball | ||||
| 31 | 1903230009 | 1.00 | 1.21 | |
| Protection cover | ||||
| 33 | 2609100002 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 43 | 2609110021 | |||
| No longer available, no replacement | ||||
| 44 | 2600301013 | |||
| Earth Conductor | ||||
| 50 | 2609120006 | 2.00 | 2.42 | |
| Connecting Cable | ||||
| 51 | 2604448212 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 52 | 2604448060 | |||
| Connecting Cable | ||||
| 53 | 2609120004 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 54 | 2609120005 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 746 | 1608571047 | |||
| Chuck Wrench | ||||
| 746/7 | 2607950007 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321904 | 9.67 | 11.70 | |
| Drilling Spindle | ||||
| 841 | 2609110023 | 12.21 | 14.77 | |
