Here you will find all available parts and drawings of the 'Bosch 3601AA908A (GBM345)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

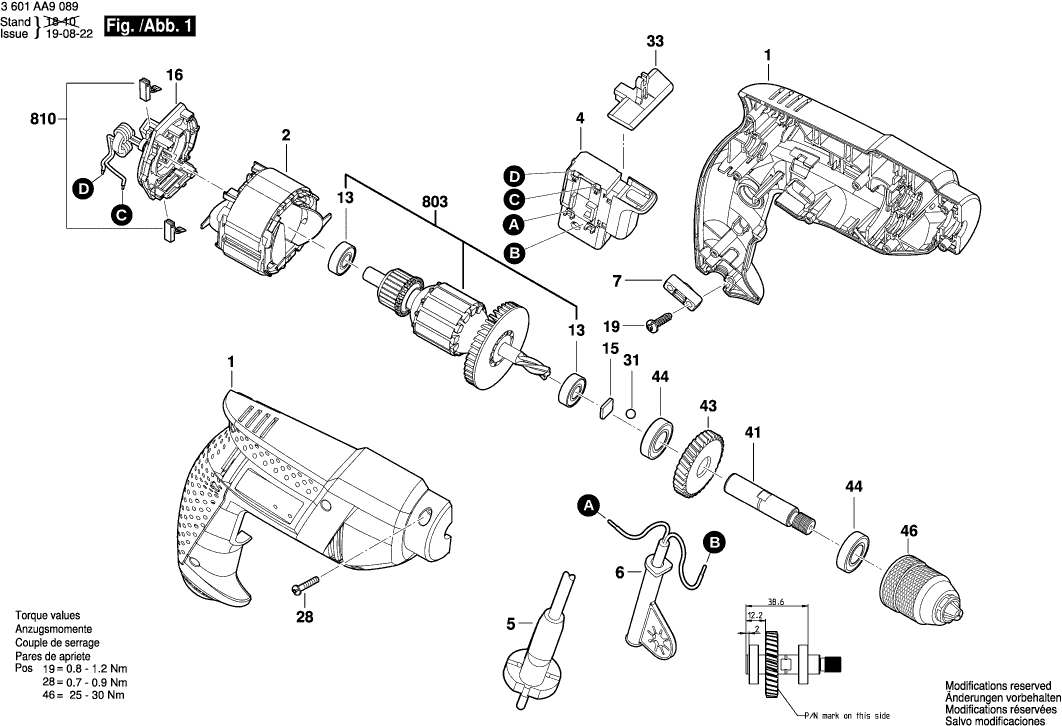

Technical drawing of model Bosch 3601AA908A (GBM345)
Spare parts list of model Bosch 3601AA908A (GBM345)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1619P20251 | 11.02 | 13.33 | |
| Field | ||||
| 2 | 1619P20885 | 20.39 | 24.67 | |
| Switch | ||||
| 4 | 160720034A | 8.48 | 10.26 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 13 | 1619P06024 | 9.67 | 11.70 | |
| Pressure Plate | ||||
| 15 | 2609110019 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 16 | 1619P20560 | 3.71 | 4.49 | |
| Tapping Screw | ||||
| 28 | 1619P00219 | 1.00 | 1.21 | |
| Ball | ||||
| 31 | 1903230009 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 33 | 1619P20250 | 1.00 | 1.21 | |
| Drilling Spindle | ||||
| 41 | 1619P10887 | 6.53 | 7.90 | |
| Cylindrical Gear | ||||
| 43 | 1619P10888 | 6.53 | 7.90 | |
| Ball Bearing | ||||
| 44 | 1619X07256 | 4.94 | 5.98 | |
| Armature set | ||||
| 803 | 1619P20267 | 20.39 | 24.67 | |
| Carbon-Brush Set | ||||
| 810 | 1619P20086 | 1.32 | 1.60 | |
