Here you will find all available parts and drawings of the 'Bosch 0601130208 (GBM32-4)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

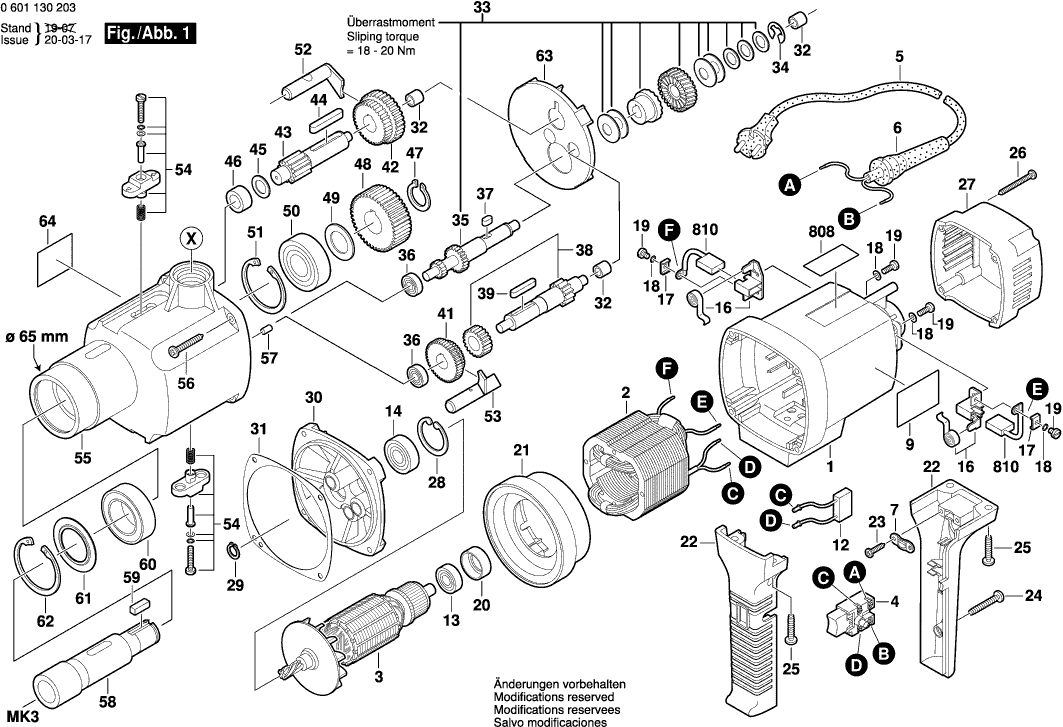

Technical drawing of model Bosch 0601130208 (GBM32-4)
Spare parts list of model Bosch 0601130208 (GBM32-4)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108188 | 102.63 | 124.18 | |
| Field | ||||
| 2 | 3604220106 | 166.62 | 201.61 | |
| Armature | ||||
| 3 | 3604010091 | 435.14 | 526.52 | |
| Switch | ||||
| 4 | 3607200080 | 75.38 | 91.21 | |
| Power supply cord | ||||
| 5 | 3604460118 | 39.14 | 47.36 | |
| Grommet | ||||
| 6 | 3605703084 | 5.81 | 7.03 | |
| Fastening Clamp | ||||
| 7 | 3604651014 | 3.04 | 3.68 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119167 | 3.04 | 3.68 | |
| Suppression Filter | ||||
| 12 | 3607328015 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 13 | 3600905127 | 12.21 | 14.77 | |
| groove ball bearing | ||||
| 14 | 3600905128 | 23.90 | 28.92 | |
| Brush Holder | ||||
| 16 | 3601321009 | 26.62 | 32.21 | |
| Contact Disc | ||||
| 17 | 3601016004 | 3.71 | 4.49 | |
| Spring Washer | ||||
| 18 | 3600150024 | 2.86 | 3.46 | |
| Thread-forming tap. Screw | ||||
| 19 | 3603435019 | 2.86 | 3.46 | |
| Rubber Ring | ||||
| 20 | 3600150025 | 8.48 | 10.26 | |
| Air-Deflector Ring | ||||
| 21 | 3600150026 | 20.39 | 24.67 | |
| Handle | ||||
| 22 | 3605133021 | 33.33 | 40.33 | |
| Tapping Screw | ||||
| 23 | 3603435014 | 2.52 | 3.05 | |
| Tapping Screw | ||||
| 24 | 3603435015 | 2.52 | 3.05 | |
| Tapping Screw | ||||
| 25 | 3603435016 | 2.52 | 3.05 | |
| Tapping Screw | ||||
| 26 | 3603435017 | 2.52 | 3.05 | |
| Housing Cover | ||||
| 27 | 3605102089 | 33.33 | 40.33 | |
| Spring retaining ring | ||||
| 28 | 3600119038 | 4.18 | 5.06 | |
| Spring retaining ring | ||||
| 29 | 3600119039 | 4.18 | 5.06 | |
| Intermediate Flange | ||||
| 30 | 3605820075 | 102.63 | 124.18 | |
| Flat Seal Ring | ||||
| 31 | 3601015022 | 8.48 | 10.26 | |
| Needle-Roller Bearing | ||||
| 32 | 3600910015 | 22.88 | 27.68 | |
| Clutch Set | ||||
| 33 | 3606445039 | 146.07 | 176.74 | |
| Locking washer | ||||
| 34 | 3600190026 | 2.52 | 3.05 | |
| Toothed rack | ||||
| 35 | 3606309055 | 102.63 | 124.18 | |
| groove ball bearing | ||||
| 36 | 3600905129 | 22.88 | 27.68 | |
| Parallel Key | ||||
| 37 | 3604611024 | 3.04 | 3.68 | |
| Toothed rack | ||||
| 38 | 3606309056 | 102.63 | 124.18 | |
| Parallel Key | ||||
| 39 | 3604611025 | 3.71 | 4.49 | |
| Toothed Gear | ||||
| 41 | 3606320017 | 91.33 | 110.51 | |
| Toothed Gear | ||||
| 42 | 3606320018 | 102.63 | 124.18 | |
| Toothed rack | ||||
| 43 | 3606309057 | 91.33 | 110.51 | |
| Parallel Key | ||||
| 44 | 3604611026 | 3.71 | 4.49 | |
| Friction Washer | ||||
| 45 | 3600100089 | 3.04 | 3.68 | |
| Needle-Roller Bearing | ||||
| 46 | 3600910016 | 26.62 | 32.21 | |
| Spring retaining ring | ||||
| 47 | 3600119037 | 2.52 | 3.05 | |
| Toothed Gear | ||||
| 48 | 3606320019 | 91.33 | 110.51 | |
| Shim ring | ||||
| 49 | 3604611027 | 3.04 | 3.68 | |
| groove ball bearing | ||||
| 50 | 3600905125 | 22.88 | 27.68 | |
| Spring retaining ring | ||||
| 51 | 3600224061 | 2.52 | 3.05 | |
| Clutch Bolt | ||||
| 52 | 3606445040 | 22.88 | 27.68 | |
| Clutch Bolt | ||||
| 53 | 3606445041 | 22.88 | 27.68 | |
| operation button | ||||
| 54 | 3603231009 | 15.61 | 18.89 | |
| Gear Housing | ||||
| 55 | 3605106090 | 189.28 | 229.03 | |
| Tapping Screw | ||||
| 56 | 3603435018 | 2.52 | 3.05 | |
| Half-Length Grooved Pin | ||||
| 57 | 2917690120 | 1.32 | 1.60 | |
| Drilling Spindle | ||||
| 58 | 3606135007 | 189.28 | 229.03 | |
| Parallel Key | ||||
| 59 | 3604611028 | 3.71 | 4.49 | |
| groove ball bearing | ||||
| 60 | 3600905126 | 22.88 | 27.68 | |
| Friction Washer | ||||
| 61 | 3600100088 | 3.71 | 4.49 | |
| Spring retaining ring | ||||
| 62 | 3600119036 | 3.04 | 3.68 | |
| Partition | ||||
| 63 | 3604651015 | 12.21 | 14.77 | |
| Reference Plate | ||||
| 64 | 3601119168 | 3.04 | 3.68 | |
| Auxiliary Handle | ||||
| 650 | 3602025018 | 75.38 | 91.21 | |
| Drift | ||||
| 651 | 3602317040 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 652 | 3605438032 | |||
| Reduction Sleeve | ||||
| 755 | 3600320014 | 0.83 | 1.00 | |
| Taper mandrel | ||||
| 756 | 1603115004 | 0.83 | 1.00 | |
| Key Chuck | ||||
| 757 | 1608571056 | 0.83 | 1.00 | |
| Chuck Wrench | ||||
| 757/7 | 1607950041 | 0.83 | 1.00 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 3604321034 | 31.42 | 38.02 | |
