Here you will find all available parts and drawings of the 'Bosch 0601120508 ( GBM16-2RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

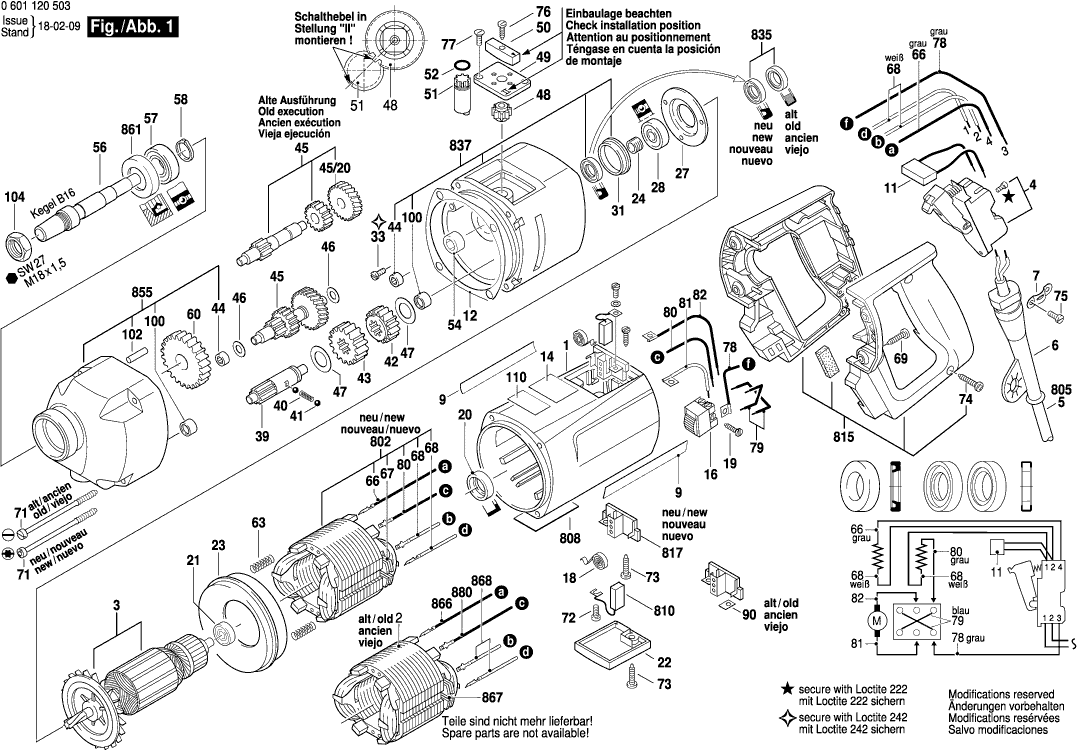

Technical drawing of model Bosch 0601120508 ( GBM16-2RE )

Spare parts list of model Bosch 0601120508 ( GBM16-2RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 3605108092 23.75 28.74
Armature
3 1619P13609 36.85 44.59
Switch
4 1607200075 67.25 81.37
Grommet Ø7,9-Ø12,0x120 MM
6 1600703022 2.24 2.71
Fastening Clamp
7 1601302014 1.18 1.43
Manufacturer's nameplate
9 3601110514 1.94 2.35
No longer available, no replacement
11 1607328028
Sealing Plate
12 1601015013 1.18 1.43
Switch
16 3607200000 15.71 19.01
Spiral Spring
18 1604652006 1.18 1.43
Tapping Screw DIN 7971-BZ2,9x13
19 2910211006 0.83 1.00
Intermediate Ring
20 1600502011 1.94 2.35
Ball Bearing 7x19x6
21 2600905032 4.10 4.96
Sealing cap BLUE
22 3605500063 3.31 4.01
Air-Deflector Ring
23 1600502019 2.71 3.28
Intermediate Ring
24 1600300090 2.71 3.28
Bearing cover
27 3605500034 5.33 6.45
groove ball bearing 9x26x8
28 3600905131 8.45 10.22
Intermediate Ring
31 1600221003 1.18 1.43
Socket head cap screw DIN 84-AM4x8-8.8
33 2910021118 0.83 1.00
Toothed Shaft Z=17
39 1606309063 40.61 49.14
Compression Spring
40 1604611022 1.18 1.43
Ball DIN 5401-5 G28
41 1903230009 0.83 1.00
Cylindrical Gear Z=32
42 1606317074 26.84 32.48
Cylindrical Gear Z=43
43 1606317082 33.45 40.47
Needle bearing
44 1600910013 4.70 5.69
Pinion Shaft Z=14/24/33
45 1606309065 81.47 98.58
Cylindrical Gear Z=33
45/20 1606320077 20.42 24.71
Shim 0,5 MM THICK
46 1600100631 1.18 1.43
Shim 0,6 MM THICK
47 1600101647 1.70 2.06
Control Shaft Z=20
48 1606325025 2.24 2.71
Notched Plate
49 1601038025 1.18 1.43
Control Lever
50 1602026044 5.83 7.05
Control Shaft Z=10
51 1606325027 6.54 7.91
O-Ring 8x2,5 MM
52 1900210105 1.18 1.43
Needle-Roller Bearing Ø14 MM
54 2600910001 3.31 4.01
Drilling Spindle B16
56 3603523016 44.82 54.23
groove ball bearing 15x32x9
57 1900905162 13.93 16.86
Retaining clip DIN 471-15x1-FSt
58 2916650006 1.18 1.43
Cylindrical Gear Z=41
60 1606317080 23.75 28.74
Compression Spring
63 1604613006 1.18 1.43
Connecting Cable L=375 MM
66 3604438027 7.58 9.17
Wire Guide
67 3601025003 1.18 1.43
Connecting Cable L=360 MM WHITE
68 3604460027 5.33 6.45
Torx Oval-Head Screw
69 2914201527 1.70 2.06
Lens Head Screw
71 3603435042 1.18 1.43
Socket head cap screw DIN 84-AM4x8-8.8
72 2910021118 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
73 2910211019 0.83 1.00
Torx Oval-Head Screw
74 2914201507 0.83 1.00
Tapping Screw DIN 7971-ST3,9x13-F
75 2910211018 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
76 2910211019 0.83 1.00
Countersunk-Head Screw DIN 63-AM4x10-5.8
77 2910501120 0.83 1.00
Connecting Cable L=330 MM WHITE
78 1604412053 4.10 4.96
Connecting Cable L=60 MM BLUE
79 3604412002 5.83 7.05
Connecting Cable L=230 MM GRAY
80 3604438022 6.54 7.91
Suppression Filter L=100MM WHITE
81 3604503008 6.54 7.91
Suppression Filter L=160MM BLUE
82 3604503007 7.58 9.17
Tab Washer
90 1601030022 1.18 1.43
Bushing
100 3600328033 5.83 7.05
Straight Pin 5 H 8x18 DIN 7
102 2917500121 0.83 1.00
Chuck
103 3608571003 73.72 89.20
Chuck Wrench
103/1 3607950018 7.58 9.17
Hex Nut M 18x1,5 MM, SW27
104 2915031057 0.83 1.00
Auxiliary Handle Ø43 MM
650 3602025021 36.85 44.59
Auxiliary Handle Ø 66 MM
650/1 1612025022 0.83 1.00
No longer available, no replacement
650/2 1618040077
Stud bolt M8
650/3 1613521001 3.31 4.01
Clamping Band Ø43 MM
650/4 3601038048 13.93 16.86
Straight Pin
650/5 1613100012 1.94 2.35
Handle Bar
650/8 3602025022 13.93 16.86
Depth-Gauge SW 6x330 MM
652 1613001008 6.54 7.91
Field 230V
802 3604220118 67.25 81.37
Power supply cord
805 1607000391 13.93 16.86
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 3607014012 20.42 24.71
Handle
815 3605133015 18.19 22.01
Brush Holder
817 3604336012 4.70 5.69
Rotary shaft lip seal
835 3600290070 9.53 11.53
Intermediate Bearing
837 3607030437 91.56 110.79
Spindle Bearing M14
855 1605806368 73.72 89.20
Retaining snap ring
861 3607030355 13.93 16.86
Connecting Cable L=345 MM GRAY
866 1604438013 5.83 7.05
Wire Guide
867 1601025001 1.10 1.33
Connecting Cable L=330 MM WHITE
868 1604438012 5.83 7.05
Connecting Cable L=200 MM GRAY
880 3604460010 2.24 2.71
