Here you will find all available parts and drawings of the 'Bosch 0601049603 ( GBM13HRE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

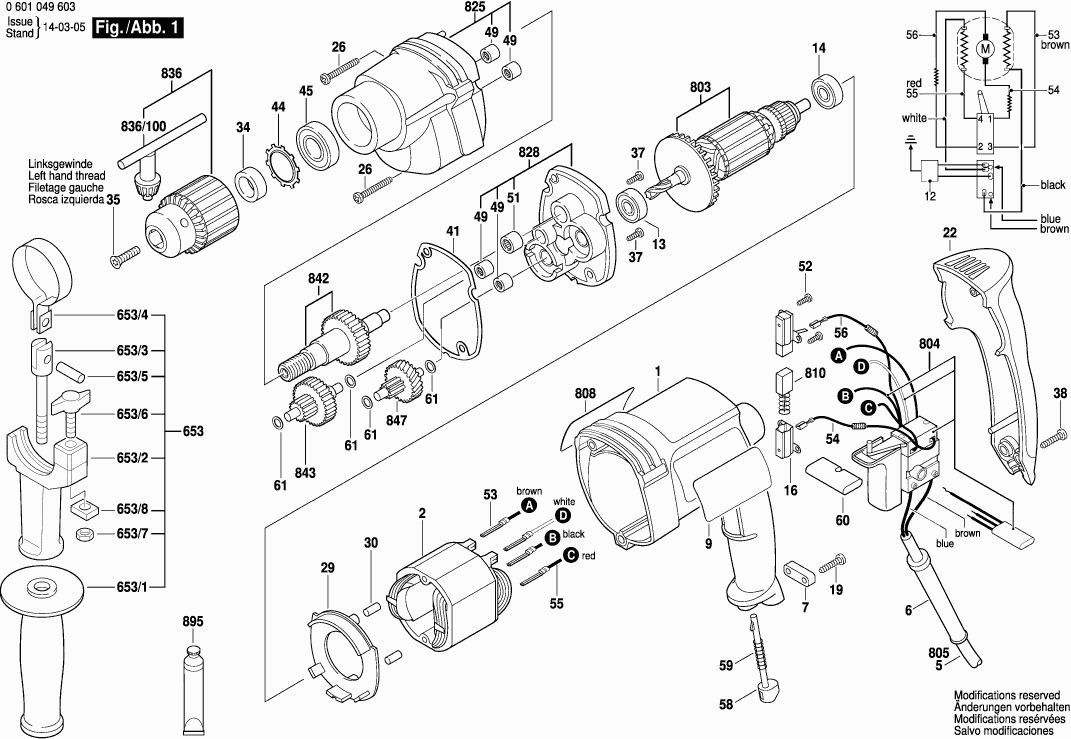

Technical drawing of model Bosch 0601049603 ( GBM13HRE )

Spare parts list of model Bosch 0601049603 ( GBM13HRE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 2610998101 15.71 19.01
Field 230-240V
2 2604220702 15.71 19.01
Grommet Ø11,6-Ø12,5x84 MM
6 2600707060 1.94 2.35
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate GBM 13 HRE
9 160111C0NX 1.94 2.35
groove ball bearing 9x22x7
13 2600905107 9.53 11.53
Ball Bearing 7x22x7
14 1900905018 13.93 16.86
Brush Holder
16 2604337003 1.70 2.06
Screw 4x16
19 2603490022 0.83 1.00
Housing Cover
22 2610998102 8.45 10.22
Torx Oval-Head Screw 4x30
26 2603490025 0.83 1.00
Air Guide Plate
29 2610998115 1.70 2.06
Rubber Buffer
30 3602391503 1.70 2.06
Spacer
34 2610998132 1.70 2.06
Countersunk-Head Screw 1/4" 28UNF-2A
35 2603421009 1.70 2.06
Thread-forming tap. Screw M4x8
37 2603410048 1.18 1.43
Torx Oval-Head Screw 4x20
38 2603490023 0.83 1.00
Sealing disk
41 2610998117 0.83 1.00
Spring retaining ring
44 2610998128 0.83 1.00
Ball Bearing
45 2610968044 8.45 10.22
Needle-Roller Bearing Ø6 MM
49 2600914010 2.24 2.71
Needle bearing Ø8xØ12x8 MM
51 1600910018 4.10 4.96
Torx Oval-Head Screw 3x10
52 2603490017 1.70 2.06
Connecting Cable
53 2604448294 1.18 1.43
Suppression Filter
54 2604465110 4.70 5.69
Connecting Cable
55 2604448286 1.18 1.43
Suppression Filter
56 2604465111 4.70 5.69
Locking Lever
58 2610998114 1.94 2.35
Compression Spring
59 2610998116 0.83 1.00
Reversing Switch
60 2610998113 1.94 2.35
Shim 0,3 MM
61 2600100607 1.18 1.43
METAL HANDLE
653 1612025020 0.83 1.00
Auxiliary Handle M8
653/1 1612025019 5.33 6.45
No longer available, no replacement
653/2 1618040077
Stud bolt M8
653/3 1613521001 3.31 4.01
Clamping Band Ø43 MM
653/4 1611316003 1.94 2.35
Straight Pin
653/5 1613100012 1.94 2.35
Wing Screw
653/6 2603480006 1.94 2.35
No longer available, no replacement
653/7 1613300006
Clamping Plate
653/8 1611030010 1.70 2.06
Armature
803 2604011900 60.65 73.39
Switch
804 2607200920 23.75 28.74
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Marking Plate
808 2601116765 2.71 3.28
Carbon-Brush Set 10 x 2 604 321 905
810 1607000484 73.72 89.20
Carbon-Brush Set
810 2604321905 8.45 10.22
Gear Housing
825 2610916683 33.45 40.47
Pivot Plate
828 2610998153 15.71 19.01
Chuck Ø1,5-13 MM, 1/2"
836 1608571069 20.42 24.71
Chuck Wrench SG2
836/100 2607950007 5.33 6.45
Drive Shaft
842 2610907370 44.82 54.23
Toothed Shaft
843 2610998150 36.85 44.59
Toothed Shaft
847 2610998149 20.42 24.71
Grease Tube Albida
895 3605430003 23.75 28.74
