Here you will find all available parts and drawings of the 'Bosch 3601AB2000 (GBM13-2RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

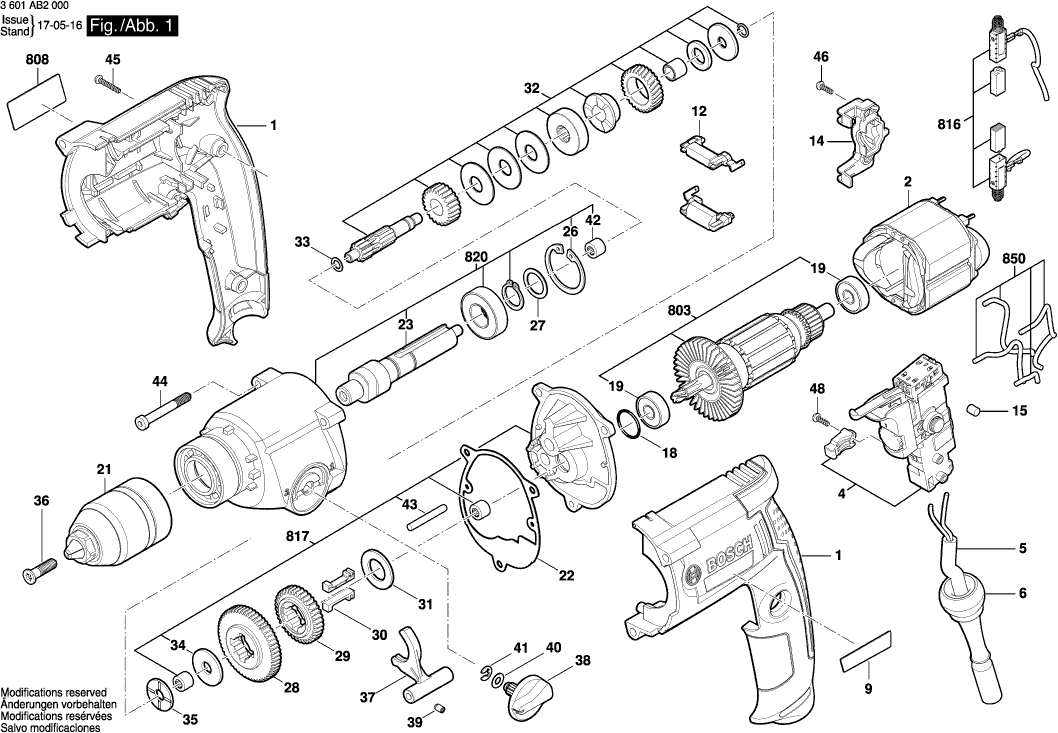

Technical drawing of model Bosch 3601AB2000 (GBM13-2RE)
Spare parts list of model Bosch 3601AB2000 (GBM13-2RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082FA | 21.30 | 25.77 | |
| Field | ||||
| 2 | 1614220219 | 18.94 | 22.92 | |
| Switch | ||||
| 4 | 160720030G | 27.81 | 33.65 | |
| Power supply cord | ||||
| 5 | 1607000392 | 21.30 | 25.77 | |
| Grommet | ||||
| 6 | 1600703034 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0VJ | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1617328032 | 7.46 | 9.03 | |
| Bearing Bracket | ||||
| 14 | 1618B0080A | 2.08 | 2.52 | |
| Damping rubber | ||||
| 15 | 2603100056 | 1.49 | 1.80 | |
| O-Ring | ||||
| 18 | 160021005W | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 19 | 1600905032 | 5.81 | 7.03 | |
| Ball Bearing | ||||
| 19 | 2609110153 | 5.81 | 7.03 | |
| Keyless Chuck | ||||
| 21 | 2608572184 | 88.83 | 107.48 | |
| Gasket | ||||
| 22 | 1600A002NH | 1.49 | 1.80 | |
| Drilling Spindle | ||||
| 23 | 1600A002RA | 16.79 | 20.32 | |
| Retaining clip | ||||
| 26 | 2916660013 | 2.08 | 2.52 | |
| Shim | ||||
| 27 | 2600100695 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 28 | 1600A003NU | 12.82 | 15.51 | |
| Cylindrical Gear | ||||
| 29 | 1600A002NJ | 12.82 | 15.51 | |
| Flat Key | ||||
| 30 | 2602300033 | 5.81 | 7.03 | |
| Shim | ||||
| 31 | 2600101668 | 2.86 | 3.46 | |
| Transmission | ||||
| 32 | 1600A002NK | 58.03 | 70.22 | |
| Shim | ||||
| 33 | 2600100607 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 34 | 1600A002NV | 3.44 | 4.16 | |
| Needle bearing | ||||
| 35 | 1600A002NW | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 36 | 2603421229 | 1.49 | 1.80 | |
| Adjusting Slide | ||||
| 37 | 1600A011KX | 3.44 | 4.16 | |
| Rotary Knob | ||||
| 38 | 1600A00381 | 2.08 | 2.52 | |
| Ratchet Cap | ||||
| 39 | 2600590006 | 1.49 | 1.80 | |
| Shim washer | ||||
| 40 | 2600100618 | 1.00 | 1.21 | |
| Locking washer | ||||
| 41 | 2916080907 | 2.08 | 2.52 | |
| Needle-Roller Bearing | ||||
| 42 | 2600914010 | 2.86 | 3.46 | |
| Straight Pin | ||||
| 43 | 2917530106 | 4.18 | 5.06 | |
| Headless Screw | ||||
| 44 | 2603435085 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 45 | 1619P00219 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 46 | 1613435034 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 2603490017 | 2.08 | 2.52 | |
| Armature | ||||
| 803 | 1600A004MT | 52.45 | 63.46 | |
| Nameplate | ||||
| 808 | 160111A3U0 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 816 | 1617014146 | 10.68 | 12.92 | |
| Intermediate Flange | ||||
| 817 | 1600A004MW | 23.90 | 28.92 | |
| Gear Housing | ||||
| 820 | 160580658L | 58.03 | 70.22 | |
| Connecting Cable | ||||
| 850 | 1600A004MX | 6.73 | 8.14 | |
