Here you will find all available parts and drawings of the 'Bosch 0601135508 ( GBM10RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

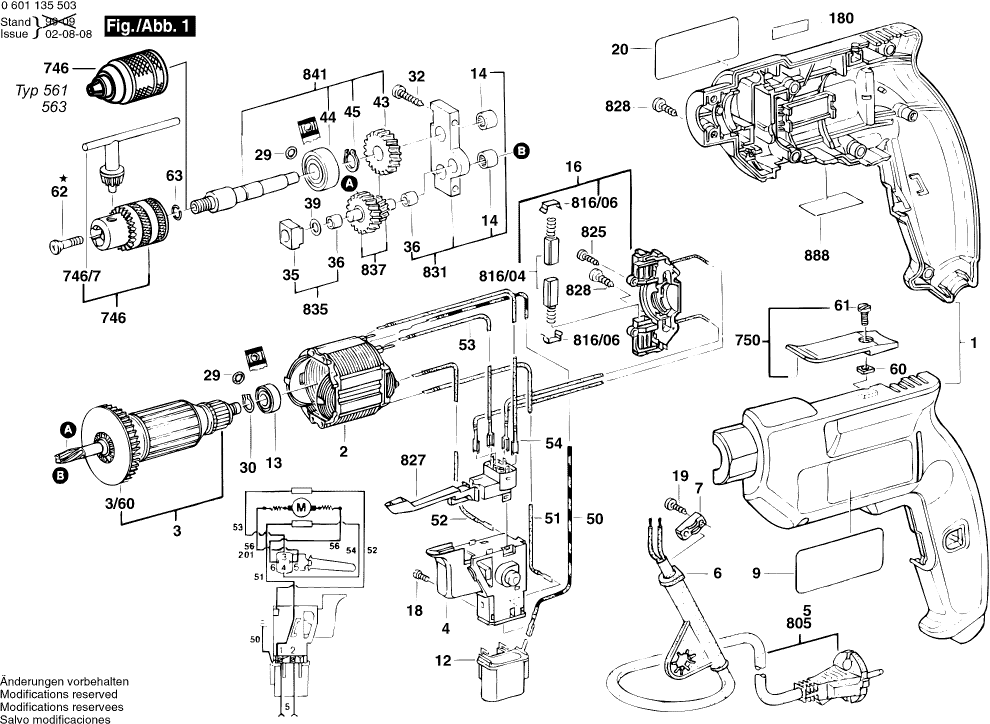

Technical drawing of model Bosch 0601135508 ( GBM10RE )
Spare parts list of model Bosch 0601135508 ( GBM10RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104316 | 17.22 | 20.84 | |
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| No longer available, no replacement | ||||
| 3 | 2604010707 | |||
| Fan | ||||
| 3/60 | 1619P11262 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 4 | 2607200357 | |||
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609130745 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Needle-Roller Bearing | ||||
| 14 | 2600917003 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 16 | 2605807060 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910611019 | 2.86 | 3.46 | |
| Reference Plate | ||||
| 20 | 2601118572 | 3.04 | 3.68 | |
| O-Ring | ||||
| 29 | 1900210000 | 1.49 | 1.80 | |
| Spacer Ring | ||||
| 30 | 2600209004 | 2.00 | 2.42 | |
| Tapping Screw | ||||
| 32 | 2910611096 | 0.83 | 1.00 | |
| Bearing Piece | ||||
| 35 | 2602305003 | 2.87 | 3.47 | |
| Needle bearing | ||||
| 36 | 2600917004 | 3.04 | 3.68 | |
| Shim | ||||
| 39 | 2600100627 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 43 | 2606320046 | 15.26 | 18.46 | |
| groove ball bearing | ||||
| 44 | 1900905232 | 21.30 | 25.77 | |
| Spring retaining ring | ||||
| 45 | 2916650001 | 2.40 | 2.90 | |
| Earth Conductor | ||||
| 50 | 2604448103 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 2604448060 | |||
| No longer available, no replacement | ||||
| 52 | 2604448045 | |||
| Connecting Cable | ||||
| 53 | 2604448132 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 54 | 2604448203 | 1.24 | 1.50 | |
| Square Nut | ||||
| 60 | 2915121004 | 0.83 | 1.00 | |
| Pan head screw | ||||
| 61 | 2910091120 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 62 | 2603421209 | |||
| Retaining ring | ||||
| 63 | 2604601004 | 1.49 | 1.80 | |
| Key Chuck | ||||
| 746 | 1608571061 | 0.83 | 1.00 | |
| Chuck Wrench | ||||
| 746/7 | 2607950007 | 6.73 | 8.14 | |
| Channel End-Plate | ||||
| 750 | 2608040050 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321911 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 825 | 2910611007 | 1.00 | 1.21 | |
| Change-Over Switch | ||||
| 827 | 2607200231 | 14.94 | 18.08 | |
| Tapping Screw | ||||
| 828 | 2910611020 | 1.49 | 1.80 | |
| Bearing Bracket | ||||
| 831 | 2605807920 | 13.58 | 16.43 | |
| Bearing Piece | ||||
| 835 | 2600917903 | 6.96 | 8.42 | |
| Toothed Shaft | ||||
| 837 | 2606311906 | 19.36 | 23.43 | |
| No longer available, no replacement | ||||
| 841 | 2606135912 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
