Here you will find all available parts and drawings of the 'Bosch 0601136566 (GBM1RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

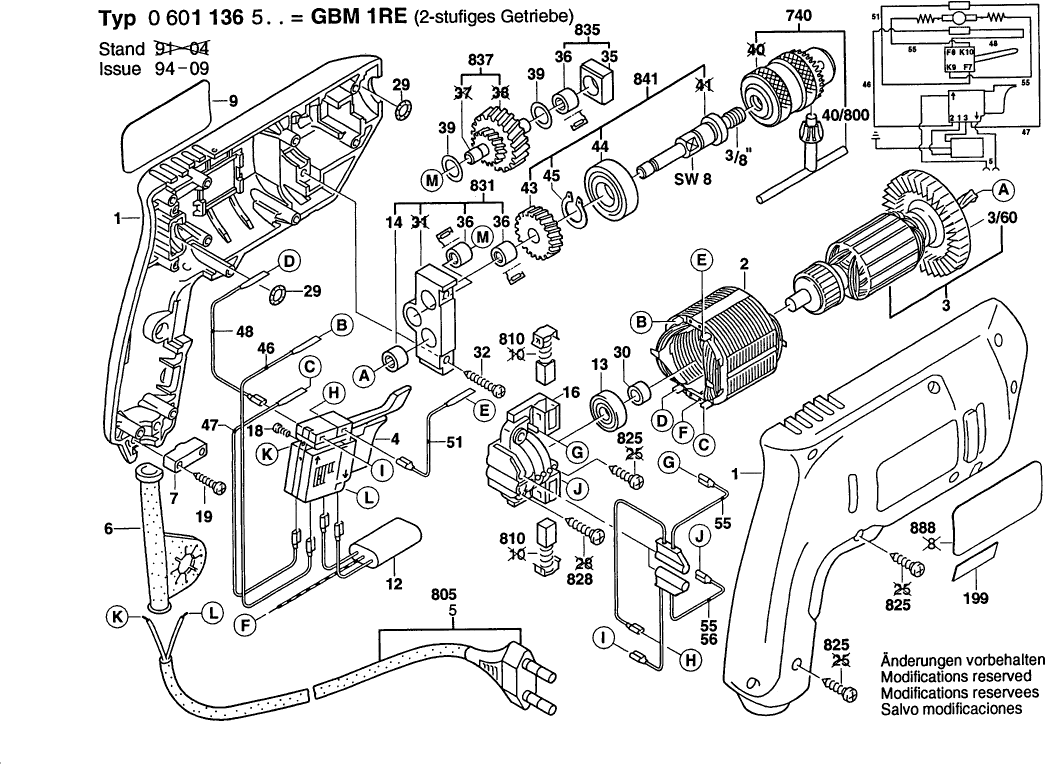

Technical drawing of model Bosch 0601136566 (GBM1RE)
Spare parts list of model Bosch 0601136566 (GBM1RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 2605104342 | |||
| No information available, not orderable | ||||
| 2 | 2604220506 | |||
| No information available, not orderable | ||||
| 3 | 2604010834 | |||
| Fan | ||||
| 3/60 | 2606610027 | 2.86 | 3.46 | |
| Switch | ||||
| 4 | 2607200278 | 26.62 | 32.21 | |
| Grommet | ||||
| 6 | 2600707062 | 1.49 | 1.80 | |
| Grommet | ||||
| 6 | 2600707063 | 1.32 | 1.60 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 9 | 2601118581 | |||
| No information available, not orderable | ||||
| 12 | 2607329127 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Needle-Roller Bearing | ||||
| 14 | 2600917003 | 2.86 | 3.46 | |
| No information available, not orderable | ||||
| 16 | 2605807039 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910611019 | 2.86 | 3.46 | |
| O-Ring | ||||
| 29 | 1900210000 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 30 | 2600209004 | |||
| Torx Oval-Head Screw | ||||
| 32 | 2603490024 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 35 | 2602305003 | |||
| No information available, not orderable | ||||
| 36 | 2600917004 | |||
| Shim | ||||
| 39 | 2600100627 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 40/800 | 1607950028 | |||
| No information available, not orderable | ||||
| 43 | 2606319039 | |||
| groove ball bearing | ||||
| 44 | 1900905232 | 21.30 | 25.77 | |
| Spring retaining ring | ||||
| 45 | 2916650001 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 46 | 2604448152 | |||
| No information available, not orderable | ||||
| 47 | 2604448153 | |||
| Connecting Cable | ||||
| 48 | 2604448154 | 1.32 | 1.60 | |
| No information available, not orderable | ||||
| 51 | 2604448155 | |||
| No information available, not orderable | ||||
| 55 | 2604465104 | |||
| No longer available, no replacement | ||||
| 740 | 1608571047 | |||
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 810 | 2607014004 | |||
| Tapping Screw | ||||
| 825 | 2910611006 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 828 | 2910611020 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 831 | 2605807922 | |||
| No information available, not orderable | ||||
| 837 | 2606311908 | |||
| Drilling Spindle | ||||
| 841 | 2606135914 | 30.08 | 36.40 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
