Here you will find all available parts and drawings of the 'Bosch 0601136703 ( GBM1E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

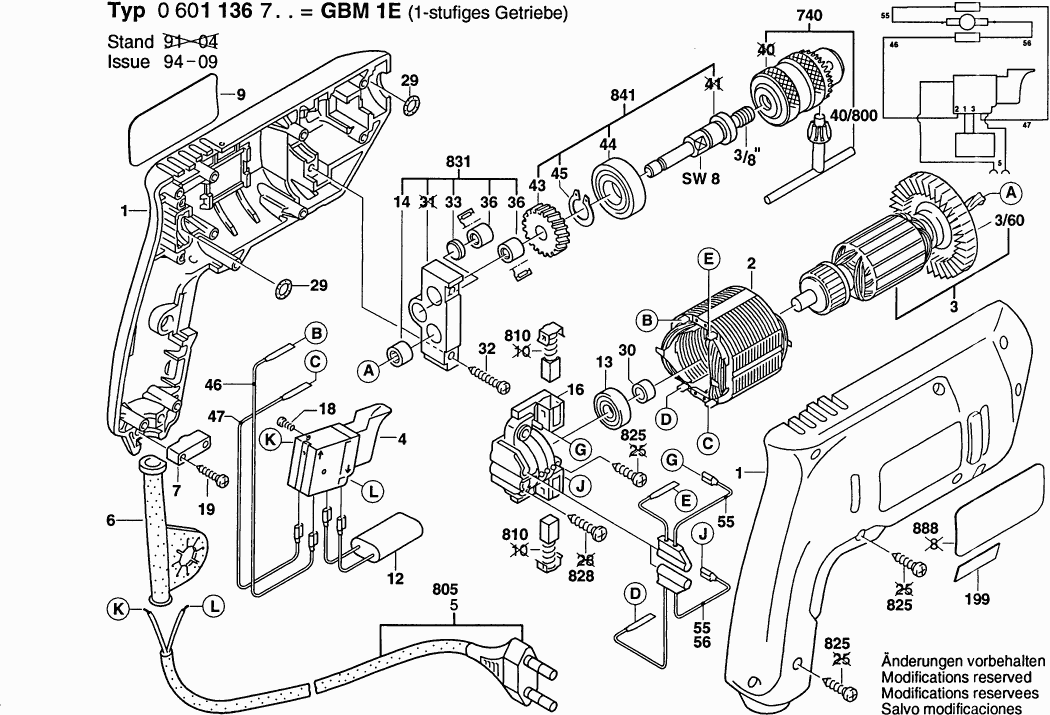

Technical drawing of model Bosch 0601136703 ( GBM1E )
Spare parts list of model Bosch 0601136703 ( GBM1E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104342 | 11.88 | 14.37 | |
| Field 220-230V | ||||
| 2 | 2604220506 | 13.93 | 16.86 | |
| Armature 230-240V | ||||
| 3 | 2604010842 | 36.85 | 44.59 | |
| Fan | ||||
| 3/60 | 2606610027 | 2.24 | 2.71 | |
| On-Off Switch | ||||
| 4 | 2607200277 | 36.85 | 44.59 | |
| Grommet Ø8,8 MM | ||||
| 6 | 2600707061 | 1.94 | 2.35 | |
| Grommet Ø7x8,4 MM | ||||
| 6 | 2600707062 | 1.18 | 1.43 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118582 | 2.71 | 3.28 | |
| Suppression Capacitor | ||||
| 12 | 2607329127 | 3.31 | 4.01 | |
| Ball Bearing 7x19x6 | ||||
| 13 | 2600905032 | 4.10 | 4.96 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 14 | 2600917003 | 2.24 | 2.71 | |
| Brush Plate | ||||
| 16 | 2605807039 | 5.83 | 7.05 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| O-Ring 5,0x1,5 MM | ||||
| 29 | 1900210000 | 1.18 | 1.43 | |
| Spacer Ring | ||||
| 30 | 2600209004 | 1.94 | 2.35 | |
| Torx Oval-Head Screw 4x25 | ||||
| 32 | 2603490024 | 1.18 | 1.43 | |
| Sealing cap | ||||
| 33 | 2605500111 | 1.18 | 1.43 | |
| Needle bearing | ||||
| 36 | 2600917004 | 2.71 | 3.28 | |
| Sleutel boorhouder G, S1 | ||||
| 40/800 | 1607950028 | 0.83 | 1.00 | |
| Straight Gear Z=55 | ||||
| 43 | 2606319060 | 13.93 | 16.86 | |
| groove ball bearing 6200-2Z DIN 625 | ||||
| 44 | 1900905232 | 18.19 | 22.01 | |
| Spring retaining ring DIN 471-10x1MM-FSt | ||||
| 45 | 2916650001 | 1.94 | 2.35 | |
| Connecting Cable | ||||
| 46 | 2604448152 | 1.18 | 1.43 | |
| Connecting Cable | ||||
| 47 | 2604448153 | 1.18 | 1.43 | |
| Brush Holder | ||||
| 55 | 2604465103 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 740 | 1608571047 | |||
| Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F | ||||
| 805 | 1607000227 | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 810 | 2607014004 | |||
| Tapping Screw DIN 7981-B2,9x16-C-H | ||||
| 825 | 2910611007 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 828 | 2910611020 | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 831 | 2605807922 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 841 | 2606135916 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
