Here you will find all available parts and drawings of the 'Bosch 3601JF5100 ( GBL18V-120 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

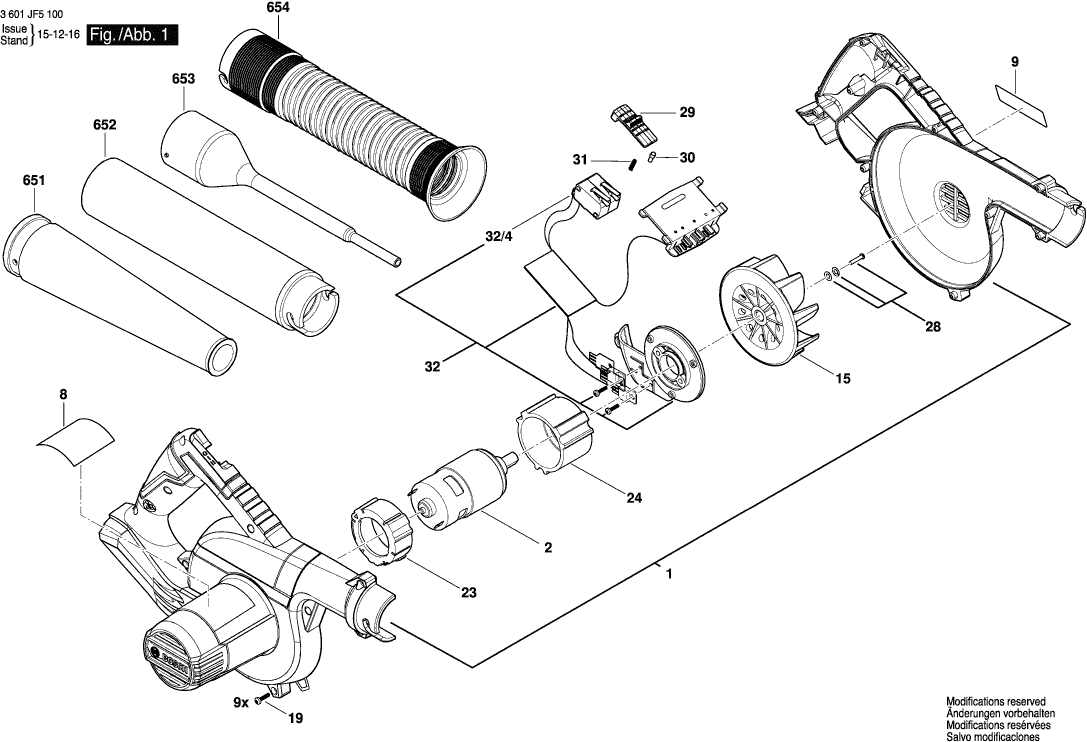

Technical drawing of model Bosch 3601JF5100 ( GBL18V-120 )
Spare parts list of model Bosch 3601JF5100 ( GBL18V-120 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PA9070 | 33.45 | 40.47 | |
| DC motor | ||||
| 2 | 1619PA9071 | 36.85 | 44.59 | |
| Nameplate | ||||
| 8 | 1619PA9219 | 0.83 | 1.00 | |
| Manufacturer's nameplate GBL 18V-120 | ||||
| 9 | 1619PA9225 | 0.83 | 1.00 | |
| Fan | ||||
| 15 | 1619PA9073 | 7.58 | 9.17 | |
| Tapping Screw | ||||
| 19 | 1619PA9074 | 0.83 | 1.00 | |
| Motor Cradle | ||||
| 23 | 1619PA9075 | 4.10 | 4.96 | |
| Motor Cradle | ||||
| 24 | 1619PA9076 | 4.70 | 5.69 | |
| Pan head screw | ||||
| 28 | 1619PA9080 | 0.83 | 1.00 | |
| Switch Slide | ||||
| 29 | 1619PA9081 | 1.18 | 1.43 | |
| Guide Pin | ||||
| 30 | 1619PA9082 | 1.94 | 2.35 | |
| Contact strap | ||||
| 31 | 1619PA9083 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 32 | 1619PA9085 | 36.85 | 44.59 | |
| On-Off Switch | ||||
| 32/4 | 2607202322 | 7.58 | 9.17 | |
| Nozzle | ||||
| 651 | 1619PA9087 | 9.53 | 11.53 | |
| Extension Tube | ||||
| 652 | 1619PA9088 | 7.58 | 9.17 | |
| Nozzle | ||||
| 653 | 1619PA9089 | 8.45 | 10.22 | |
| Flexible Connection | ||||
| 654 | 1619PA9228 | 9.53 | 11.53 | |
