Here you will find all available parts and drawings of the 'Bosch 0611240061 (GBH5400)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

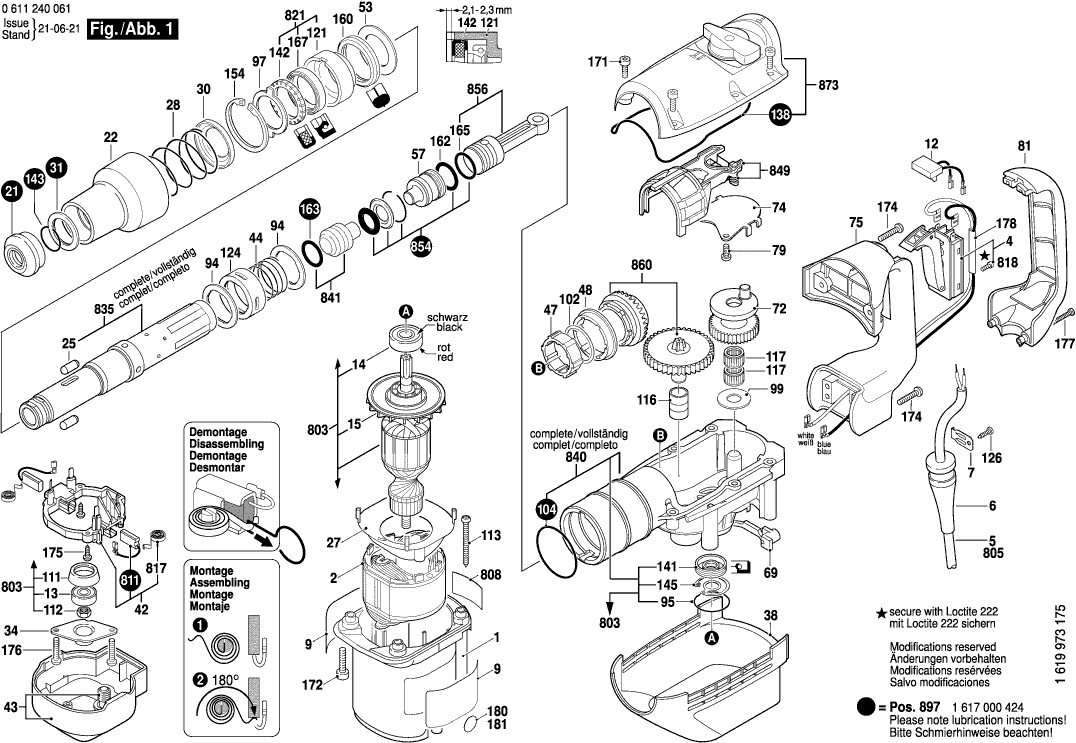

Technical drawing of model Bosch 0611240061 (GBH5400)
Spare parts list of model Bosch 0611240061 (GBH5400)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1614220122 | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 1617200109 | 31.42 | 38.02 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110D85 | 2.08 | 2.52 | |
| Suppression Filter | ||||
| 12 | 1607328052 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 13 | 1610900026 | 11.37 | 13.76 | |
| groove ball bearing | ||||
| 14 | 1610905041 | 10.90 | 13.19 | |
| Fan | ||||
| 15 | 1616610085 | 2.86 | 3.46 | |
| Protective Cap | ||||
| 21 | 1610508038 | 8.35 | 10.10 | |
| Protection Sleeve | ||||
| 22 | 1610591025 | 18.94 | 22.92 | |
| Stopping Device | ||||
| 25 | 1612300034 | 3.44 | 4.16 | |
| Air-Deflector Ring | ||||
| 27 | 1600591032 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 28 | 1614621000 | 2.86 | 3.46 | |
| Supporting Disc | ||||
| 30 | 1610505002 | 2.86 | 3.46 | |
| Supporting Disc | ||||
| 31 | 1610251006 | 5.81 | 7.03 | |
| Flange | ||||
| 34 | 1610516013 | 1.49 | 1.80 | |
| Covering hood | ||||
| 38 | 1615190098 | 12.82 | 15.51 | |
| Brush Holder | ||||
| 42 | 1614336041 | 27.81 | 33.65 | |
| Fan Cover | ||||
| 43 | 1615500303 | 9.67 | 11.70 | |
| Compression Spring | ||||
| 44 | 1614617003 | 2.18 | 2.64 | |
| Gear Sleeve | ||||
| 47 | 1610300064 | 6.73 | 8.14 | |
| Clutch Sleeve | ||||
| 48 | 1616334012 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 51 | 1616333041 | |||
| Support Disc | ||||
| 53 | 1610290068 | 3.44 | 4.16 | |
| Striker | ||||
| 57 | 1618710074 | 23.90 | 28.92 | |
| Retaining Bracket | ||||
| 69 | 1610099004 | 2.52 | 3.05 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616317064 | 67.98 | 82.26 | |
| Eccentric Cog Wheel | ||||
| 72 | 1600A014S8 | 43.12 | 52.18 | |
| Guide Plate | ||||
| 74 | 1611921001 | 2.40 | 2.90 | |
| Handle | ||||
| 75 | 1619P10300 | 21.30 | 25.77 | |
| Torx Oval-Head Screw | ||||
| 79 | 1613435015 | 2.18 | 2.64 | |
| Handle Cover | ||||
| 81 | 1615132079 | 10.90 | 13.19 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 85 | 1618040074 | 4.94 | 5.98 | |
| T-Head Bolt | ||||
| 86 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 87 | 1611316019 | 4.18 | 5.06 | |
| Friction Washer | ||||
| 94 | 1610102056 | 2.86 | 3.46 | |
| O-Ring | ||||
| 95 | 1610210173 | 2.08 | 2.52 | |
| Locking washer | ||||
| 97 | 1610031005 | 3.44 | 4.16 | |
| Support Disc | ||||
| 99 | 1610102059 | 2.40 | 2.90 | |
| Shim | ||||
| 102 | 1610102057 | 1.49 | 1.80 | |
| Shim | ||||
| 102 | 1610102058 | 1.49 | 1.80 | |
| O-Ring | ||||
| 104 | 1610210160 | 3.44 | 4.16 | |
| Bushing | ||||
| 111 | 1610290064 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 112 | 1613300008 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 113 | 1613435009 | 1.49 | 1.80 | |
| Inner Ring | ||||
| 116 | 1610311017 | 6.73 | 8.14 | |
| Needle-Roller Assembly | ||||
| 117 | 1610913029 | 4.18 | 5.06 | |
| Bushing | ||||
| 121 | 1610328019 | 14.94 | 18.08 | |
| Collar Sleeve | ||||
| 124 | 1619P10303 | 4.94 | 5.98 | |
| KRAAGBUS | ||||
| 124 | 1619P18399 | 2.18 | 2.64 | |
| Screw | ||||
| 126 | 2603490022 | 1.00 | 1.21 | |
| Sealing Frame | ||||
| 138 | 1611015053 | 11.37 | 13.76 | |
| Rotary shaft lip seal | ||||
| 141 | 1610290066 | 9.67 | 11.70 | |
| Rotary shaft lip seal | ||||
| 142 | 1610290069 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 143 | 1614601021 | 7.46 | 9.03 | |
| Spring retaining ring | ||||
| 145 | 1610119012 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 154 | 2916660023 | 4.94 | 5.98 | |
| Damping Ring | ||||
| 160 | 1610210161 | 2.86 | 3.46 | |
| O-Ring | ||||
| 162 | 1610210163 | 5.81 | 7.03 | |
| Seal Ring | ||||
| 163 | 1610290065 | 8.35 | 10.10 | |
| O-Ring | ||||
| 165 | 1610210079 | 5.81 | 7.03 | |
| Rotary shaft lip seal | ||||
| 167 | 1610283033 | 6.73 | 8.14 | |
| Torx Oval-Head Screw | ||||
| 171 | 1613435016 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613435013 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 174 | 1613435012 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 175 | 2912401018 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 176 | 1613435012 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 177 | 1603435051 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 178 | 1604412069 | 7.46 | 9.03 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Motor Housing | ||||
| 801 | 1619P10299 | 21.30 | 25.77 | |
| Armature | ||||
| 803 | 1614011083 | 136.48 | 165.14 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1607000493 | 126.98 | 153.65 | |
| Carbon-Brush Set | ||||
| 811 | 1617014138 | 17.60 | 21.30 | |
| Spiral Spring | ||||
| 817 | 1614652004 | 7.46 | 9.03 | |
| Socket head cap screw | ||||
| 818 | 2910011088 | 1.00 | 1.21 | |
| Bushing | ||||
| 821 | 1617000842 | 21.30 | 25.77 | |
| Hammer Pipe | ||||
| 835 | 1617000841 | 122.80 | 148.59 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000840 | 80.26 | 97.11 | |
| No longer available, no replacement | ||||
| 841 | 1617000460 | |||
| Control Fork | ||||
| 849 | 1617000839 | 23.90 | 28.92 | |
| Stop Disc | ||||
| 854 | 1617000461 | 16.79 | 20.32 | |
| Hammer Piston | ||||
| 856 | 1617000843 | 21.30 | 25.77 | |
| Spur Wheel Clutch | ||||
| 860 | 1607000F00 | 47.53 | 57.51 | |
| Housing Cover | ||||
| 873 | 1617000860 | 52.45 | 63.46 | |
| Auxiliary Handle Ø62 MM BLACK | ||||
| 884 | 1612025055 | 36.85 | 44.59 | |
| Auxiliary Handle | ||||
| 884 | 1607000F30 | 27.81 | 33.65 | |
| Auxiliary Handle | ||||
| 886 | 1617000459 | 12.82 | 15.51 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
| Wear and Tear Part Set | ||||
| 897 | 1617000A16 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 898 | 1615437511 | |||
