Here you will find all available parts and drawings of the 'Bosch 0611240065 ( GBH500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

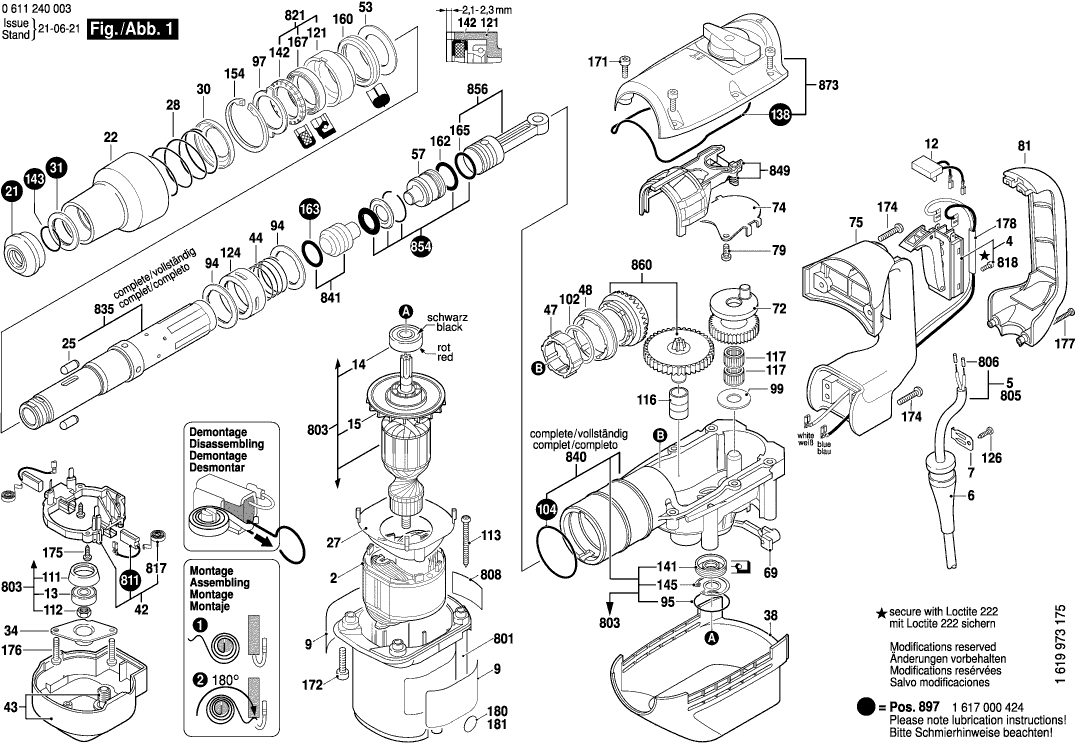

Technical drawing of model Bosch 0611240065 ( GBH500 )

Spare parts list of model Bosch 0611240065 ( GBH500 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230V
2 1614220122 29.75 36.00
Switch
4 1617200109 26.84 32.48
Grommet Ø9,7-Ø12x89 MM
6 1610703053 1.94 2.35
Fastening Clamp
7 1601302018 1.18 1.43
Sticker
9 1611110D25 1.94 2.35
Suppression Filter
12 1607328052 3.31 4.01
groove ball bearing 8x24x8
13 1610900026 9.53 11.53
groove ball bearing 12x32x10
14 1610905041 8.45 10.22
Fan
15 1616610085 2.24 2.71
Protective Cap
21 1610508038 5.83 7.05
Protection Sleeve
22 1610591025 15.71 19.01
Stopping Device
25 1612300034 2.71 3.28
Air-Deflector Ring
27 1600591032 2.24 2.71
Compression Spring
28 1614621000 2.24 2.71
Supporting Disc
30 1610505002 2.24 2.71
Supporting Disc
31 1610251006 4.70 5.69
Flange
34 1610516013 1.18 1.43
Covering hood BLUE
38 1615190098 10.73 12.98
Brush Holder
42 1614336041 23.75 28.74
Fan Cover
43 1615500303 7.58 9.17
Compression Spring
44 1614617003 1.94 2.35
Gear Sleeve
47 1610300064 5.33 6.45
Clutch Sleeve
48 1616334012 4.10 4.96
Spur Wheel Clutch
51 1607000E7U 113.29 137.08
Support Disc
53 1610290068 2.71 3.28
Striker
57 1618710074 20.42 24.71
Retaining Bracket
69 1610099004 2.24 2.71
Eccentric Cog Wheel
72 1616317064 57.10 69.09
Eccentric Cog Wheel
72 1600A014S8 36.85 44.59
Guide Plate
74 1611921001 1.94 2.35
Handle
75 1619P10300 18.19 22.01
Torx Oval-Head Screw M5x12-TORX,T25 SILVER
79 1613435015 1.94 2.35
Handle Cover
81 1615132079 8.45 10.22
Auxiliary Handle
84 160202507H 8.45 10.22
Support clamp
85 1618040074 4.10 4.96
T-Head Bolt M8x40 MM
86 1613490002 3.31 4.01
Clamping Band Ø62 MM
87 1611316019 3.31 4.01
Friction Washer
94 1610102056 2.24 2.71
O-Ring 32,0x1,5 MM
95 1610210173 1.70 2.06
Locking washer
97 1610031005 2.71 3.28
Support Disc
99 1610102059 1.94 2.35
Shim 0,3 MM
102 1610102057 1.18 1.43
Shim 0,2 MM
102 1610102058 1.18 1.43
O-Ring 52,0x2,0 MM
104 1610210160 2.71 3.28
Bushing
111 1610290064 1.18 1.43
Hex Nut DIN 936-M8x1-8
112 1613300008 1.94 2.35
Tapping Screw ST-4,8x57,5-TORX,T20
113 1613435009 1.18 1.43
Inner Ring
116 1610311017 5.33 6.45
Needle-Roller Assembly
117 1610913029 3.31 4.01
Bushing
121 1610328019 12.41 15.02
Collar Sleeve
124 1619P10303 4.10 4.96
Screw 4x16
126 2603490022 0.83 1.00
Sealing Frame
138 1611015053 8.45 10.22
Rotary shaft lip seal
141 1610290066 7.58 9.17
Rotary shaft lip seal
142 1610290069 4.70 5.69
Retaining ring DIN 7993-28x2
143 1614601021 5.33 6.45
Spring retaining ring
145 1610119012 1.70 2.06
Spring retaining ring DIN 472 52x2MM
154 2916660023 4.10 4.96
Damping Ring
160 1610210161 2.24 2.71
O-Ring 22,0x3,5 MM
162 1610210163 4.10 4.96
Seal Ring
163 1610290065 5.83 7.05
O-Ring 22,0x4,0 MM
165 1610210079 4.70 5.69
Rotary shaft lip seal
167 1610283033 5.33 6.45
Torx Oval-Head Screw M5x20-TORX,T25 SILVER
171 1613435016 1.18 1.43
Torx Oval-Head Screw M6x30-TORX,T30 SILVER
172 1613435013 1.70 2.06
Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
174 1613435012 1.70 2.06
Tapping Screw DIN7981-ST3,9x13-C-Z
175 2912401018 0.83 1.00
Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
176 1613435012 1.70 2.06
Tapping Screw ST3,9x32 SILVER
177 1603435051 1.70 2.06
Connecting Cable
178 1604412069 5.83 7.05
Grease Tube 30 ML
661 1615430010 5.33 6.45
Motor Housing
801 1619P10299 18.19 22.01
Armature 230V
803 1614011083 113.29 137.08
End Splice
806 3604477009 1.18 1.43
Nameplate
808 160111A3H5 1.94 2.35
Carbon-Brush Set 10 x 1 617 014 138
811 1607000493 113.29 137.08
Carbon-Brush Set
811 1617014138 15.71 19.01
Spiral Spring
817 1614652004 5.83 7.05
Socket head cap screw DIN 84-AM3,5x12-5.8
818 2910011088 0.83 1.00
Bushing
821 1617000842 18.19 22.01
Hammer Pipe
835 1617000841 101.94 123.35
Impact Mechanism Housing
840 1617000840 67.25 81.37
Striker Pin
841 1617000460 20.42 24.71
Control Fork
849 1617000839 20.42 24.71
Stop Disc
854 1617000461 13.93 16.86
Hammer Piston
856 1617000843 18.19 22.01
Tandwielkoppeling
860 1607000F00 39.90 48.28
Housing Cover
873 1617000860 44.82 54.23
Auxiliary Handle Ø62 MM BLACK
884 1612025055 36.85 44.59
Auxiliary Handle M8 BLACK
886 1617000459 10.73 12.98
Oil Reservoir 1000 ML
895 1615430019 55.25 66.85
Wear and Tear Part Set
897 1617000A16 33.45 40.47
Oil Reservoir 50 ML
898 1615437511 11.88 14.37
