Here you will find all available parts and drawings of the 'Bosch 0611241703 (GBH5-40DE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

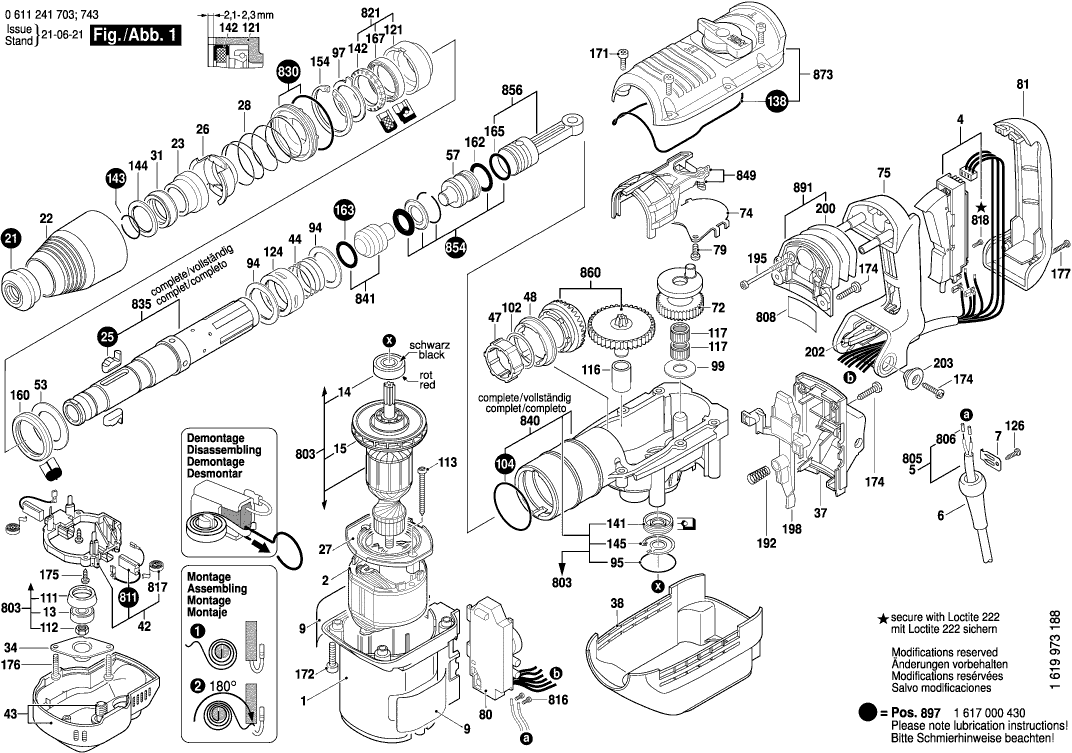

Technical drawing of model Bosch 0611241703 (GBH5-40DE)
Spare parts list of model Bosch 0611241703 (GBH5-40DE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1615102155 | |||
| Field | ||||
| 2 | 1614220123 | 43.12 | 52.18 | |
| Switch | ||||
| 4 | 1617200101 | 22.88 | 27.68 | |
| Grommet | ||||
| 6 | 1600703035 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110C42 | 3.71 | 4.49 | |
| groove ball bearing | ||||
| 13 | 1610900026 | 11.37 | 13.76 | |
| groove ball bearing | ||||
| 14 | 1610905041 | 10.90 | 13.19 | |
| Fan | ||||
| 15 | 1616610090 | 11.37 | 13.76 | |
| Protective Cap | ||||
| 21 | 1610508038 | 8.35 | 10.10 | |
| Protection Sleeve | ||||
| 22 | 1610591027 | 6.73 | 8.14 | |
| Stop Sleeve | ||||
| 23 | 1610520001 | 11.37 | 13.76 | |
| Stopping Device | ||||
| 25 | 1612300036 | 12.82 | 15.51 | |
| Indexing Disk | ||||
| 26 | 1610290076 | 6.73 | 8.14 | |
| Air-Deflector Ring | ||||
| 27 | 1610591028 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 28 | 1614621000 | 2.86 | 3.46 | |
| Damping Ring | ||||
| 31 | 1610290049 | 2.86 | 3.46 | |
| Flange | ||||
| 34 | 1610516013 | 1.49 | 1.80 | |
| Bearing Pedestal | ||||
| 37 | 1615500315 | 5.27 | 6.38 | |
| No longer available, no replacement | ||||
| 38 | 1615190101 | |||
| Brush Holder | ||||
| 42 | 1614336046 | 37.50 | 45.38 | |
| Fan Cover | ||||
| 43 | 1615500410 | 12.82 | 15.51 | |
| Compression Spring | ||||
| 44 | 1614617003 | 2.18 | 2.64 | |
| Gear Sleeve | ||||
| 47 | 1610300064 | 6.73 | 8.14 | |
| Clutch Sleeve | ||||
| 48 | 1616334012 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 51 | 1616333041 | |||
| Support Disc | ||||
| 53 | 1610290068 | 3.44 | 4.16 | |
| Striker | ||||
| 57 | 1618710074 | 23.90 | 28.92 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616317064 | 67.98 | 82.26 | |
| Eccentric Cog Wheel | ||||
| 72 | 1600A014S8 | 43.12 | 52.18 | |
| Guide Plate | ||||
| 74 | 1611921001 | 2.40 | 2.90 | |
| Handle | ||||
| 75 | 1615132087 | 45.52 | 55.08 | |
| Torx Oval-Head Screw | ||||
| 79 | 1613435015 | 2.18 | 2.64 | |
| Speed governor | ||||
| 80 | 1617233032 | 75.38 | 91.21 | |
| Handle Cover | ||||
| 81 | 1615132088 | 21.30 | 25.77 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 85 | 1618040074 | 4.94 | 5.98 | |
| T-Head Bolt | ||||
| 86 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 87 | 1611316019 | 4.18 | 5.06 | |
| Friction Washer | ||||
| 94 | 1610102056 | 2.86 | 3.46 | |
| O-Ring | ||||
| 95 | 1610210173 | 2.08 | 2.52 | |
| Locking washer | ||||
| 97 | 1610031005 | 3.44 | 4.16 | |
| Support Disc | ||||
| 99 | 1610102059 | 2.40 | 2.90 | |
| Shim | ||||
| 102 | 1610102057 | 1.49 | 1.80 | |
| Shim | ||||
| 102 | 1610102058 | 1.49 | 1.80 | |
| O-Ring | ||||
| 104 | 1610210160 | 3.44 | 4.16 | |
| Bushing | ||||
| 111 | 1610290064 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 112 | 1613300008 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 113 | 1613435009 | 1.49 | 1.80 | |
| Inner Ring | ||||
| 116 | 1610311017 | 6.73 | 8.14 | |
| Needle-Roller Assembly | ||||
| 117 | 1610913029 | 4.18 | 5.06 | |
| Bushing | ||||
| 121 | 1610328019 | 14.94 | 18.08 | |
| Collar Sleeve | ||||
| 124 | 1619P10303 | 4.94 | 5.98 | |
| KRAAGBUS | ||||
| 124 | 1619P18399 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 126 | 2910211019 | 1.00 | 1.21 | |
| Sealing Frame | ||||
| 138 | 1611015053 | 11.37 | 13.76 | |
| Rotary shaft lip seal | ||||
| 141 | 1610290066 | 9.67 | 11.70 | |
| Rotary shaft lip seal | ||||
| 142 | 1610290069 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 143 | 1614601021 | 7.46 | 9.03 | |
| Supporting Disc | ||||
| 144 | 1610251006 | 5.81 | 7.03 | |
| Spring retaining ring | ||||
| 145 | 1610119012 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 154 | 2916660023 | 4.94 | 5.98 | |
| Damping Ring | ||||
| 160 | 1610210161 | 2.86 | 3.46 | |
| O-Ring | ||||
| 162 | 1610210163 | 5.81 | 7.03 | |
| Seal Ring | ||||
| 163 | 1610290065 | 8.35 | 10.10 | |
| O-Ring | ||||
| 165 | 1610210079 | 5.81 | 7.03 | |
| Rotary shaft lip seal | ||||
| 167 | 1610283033 | 6.73 | 8.14 | |
| Torx Oval-Head Screw | ||||
| 171 | 1613435016 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613435013 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 174 | 1613435012 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 175 | 2912401018 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 176 | 1613435012 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 177 | 1603435051 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 192 | 1614611019 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 195 | 1613435020 | |||
| Control Lever | ||||
| 198 | 1618900001 | 5.81 | 7.03 | |
| Bellows | ||||
| 200 | 1610284000 | 9.67 | 11.70 | |
| Switch Hook | ||||
| 202 | 1611010006 | 4.94 | 5.98 | |
| Support Disc | ||||
| 203 | 1610322009 | 1.32 | 1.60 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Carrying Case | ||||
| 691 | 1615438461 | 47.53 | 57.51 | |
| Armature | ||||
| 803 | 1614011098 | 122.80 | 148.59 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| End Splice | ||||
| 806 | 3604477009 | 2.40 | 2.90 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1617014144 | 17.60 | 21.30 | |
| Socket head cap screw | ||||
| 816 | 1609271281 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 817 | 1614652004 | 7.46 | 9.03 | |
| Socket head cap screw | ||||
| 818 | 2910011082 | 1.00 | 1.21 | |
| Bushing | ||||
| 821 | 1617000842 | 21.30 | 25.77 | |
| Supporting Disc | ||||
| 830 | 1617000478 | 7.46 | 9.03 | |
| Hammer Pipe | ||||
| 835 | 1617000433 | 179.65 | 217.38 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000840 | 80.26 | 97.11 | |
| No longer available, no replacement | ||||
| 841 | 1617000460 | |||
| Control Fork | ||||
| 849 | 1617000839 | 23.90 | 28.92 | |
| Stop Disc | ||||
| 854 | 1617000461 | 16.79 | 20.32 | |
| Hammer Piston | ||||
| 856 | 1617000843 | 21.30 | 25.77 | |
| Spur Wheel Clutch | ||||
| 860 | 1607000F00 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 873 | 1617000861 | |||
| Auxiliary Handle Ø62 MM BLACK | ||||
| 884 | 1612025055 | 36.85 | 44.59 | |
| Auxiliary Handle | ||||
| 884 | 1607000F30 | 27.81 | 33.65 | |
| Auxiliary Handle | ||||
| 886 | 1617000459 | 12.82 | 15.51 | |
| Spring Pack | ||||
| 891 | 1617000853 | 20.39 | 24.67 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
| Wear and Tear Part Set | ||||
| 897 | 1617000430 | 35.58 | 43.05 | |
| No longer available, no replacement | ||||
| 898 | 1615437511 | |||
