Here you will find all available parts and drawings of the 'Bosch 3611B69001 (GBH5-40D)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

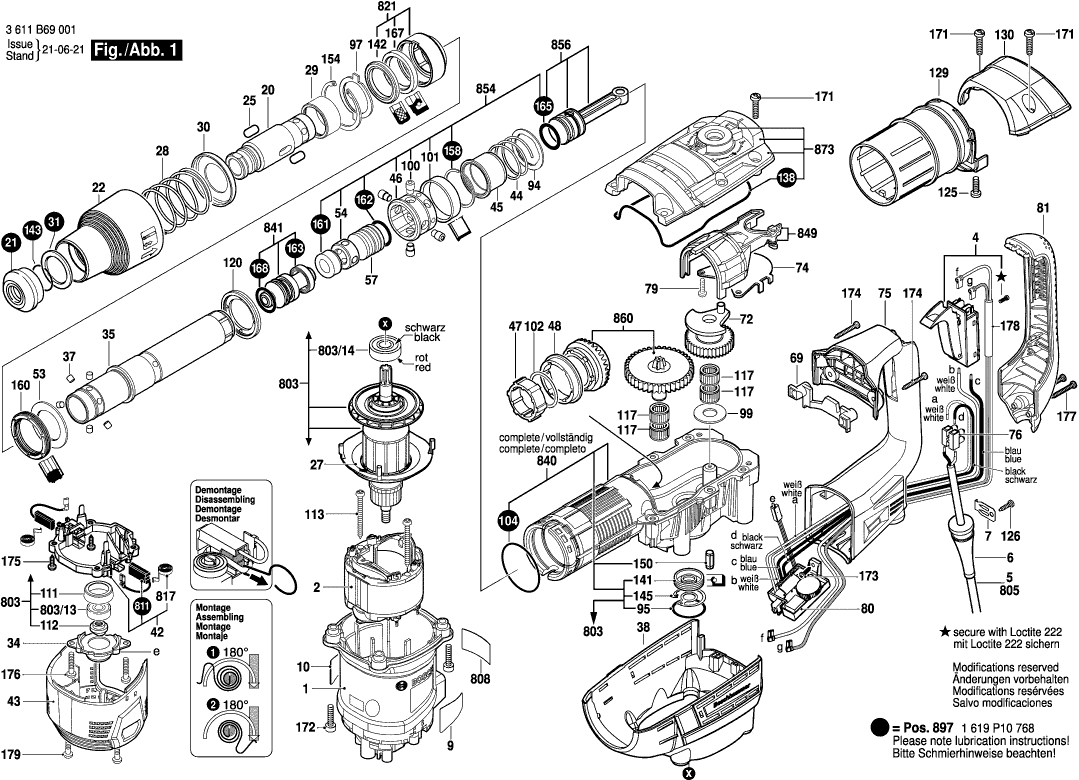

Technical drawing of model Bosch 3611B69001 (GBH5-40D)
Spare parts list of model Bosch 3611B69001 (GBH5-40D)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P07704 | 18.94 | 22.92 | |
| Field 220-240V | ||||
| 2 | 1619P08323 | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 1619P10396 | 23.90 | 28.92 | |
| Grommet | ||||
| 6 | 1619P07722 | 2.08 | 2.52 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C1L3 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 10 | 160111C1L2 | 2.40 | 2.90 | |
| Toolholder | ||||
| 20 | 1619P10164 | 52.45 | 63.46 | |
| Protective Cap | ||||
| 21 | 1619P07829 | 4.18 | 5.06 | |
| Protection Sleeve | ||||
| 22 | 1619P10160 | 27.81 | 33.65 | |
| Stopping Device | ||||
| 25 | 1619P07742 | 8.35 | 10.10 | |
| Air-Deflector Ring | ||||
| 27 | 1619P07739 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 28 | 1614621000 | 2.86 | 3.46 | |
| Bushing | ||||
| 29 | 1619P10163 | 9.67 | 11.70 | |
| Supporting Disc | ||||
| 30 | 1619P10162 | 4.94 | 5.98 | |
| Supporting Disc | ||||
| 31 | 1619P07743 | 7.46 | 9.03 | |
| Flange | ||||
| 34 | 1619P10165 | 3.44 | 4.16 | |
| Hammer Pipe | ||||
| 35 | 1619P10167 | 136.48 | 165.14 | |
| Cylindrical Roller | ||||
| 37 | 1619P10377 | 2.40 | 2.90 | |
| Covering hood | ||||
| 38 | 1619P10168 | 14.94 | 18.08 | |
| Brush Holder | ||||
| 42 | 1619P07754 | 21.30 | 25.77 | |
| Fan Cover | ||||
| 43 | 1619P10171 | 12.82 | 15.51 | |
| Compression Spring | ||||
| 44 | 1619P10381 | 2.40 | 2.90 | |
| Control Bushing | ||||
| 45 | 1610499070 | 16.79 | 20.32 | |
| Perforated Ring | ||||
| 46 | 1600A029MC | 2.86 | 3.46 | |
| Perforated Ring | ||||
| 46 | 1619P10172 | 2.86 | 3.46 | |
| Gear Sleeve | ||||
| 47 | 1610300064 | 6.73 | 8.14 | |
| Clutch Sleeve | ||||
| 48 | 1616334012 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 51 | 1616333041 | |||
| Support Disc | ||||
| 53 | 1610290068 | 3.44 | 4.16 | |
| Guide Bushing | ||||
| 54 | 1610231002 | 6.73 | 8.14 | |
| Striker | ||||
| 57 | 1618710091 | 27.81 | 33.65 | |
| Retaining Bracket | ||||
| 69 | 1610099004 | 2.52 | 3.05 | |
| Eccentric Cog Wheel | ||||
| 72 | 1600A014S9 | 21.30 | 25.77 | |
| Guide Plate | ||||
| 74 | 1611921001 | 2.40 | 2.90 | |
| Handle | ||||
| 75 | 1619P10176 | 39.14 | 47.36 | |
| connecting terminal | ||||
| 76 | 1611091006 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 79 | 1613435015 | 2.18 | 2.64 | |
| Speed governor | ||||
| 80 | 1619P09589 | 64.67 | 78.25 | |
| Handle Cover | ||||
| 81 | 1619P10177 | 27.81 | 33.65 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 85 | 1619P07774 | 8.35 | 10.10 | |
| T-Head Bolt | ||||
| 86 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 87 | 1619P07776 | 3.44 | 4.16 | |
| Friction Washer | ||||
| 94 | 1610102056 | 2.86 | 3.46 | |
| O-Ring | ||||
| 95 | 1610210173 | 2.08 | 2.52 | |
| Locking washer | ||||
| 97 | 1610031005 | 3.44 | 4.16 | |
| Support Disc | ||||
| 99 | 1610102059 | 2.40 | 2.90 | |
| Driving Pin | ||||
| 100 | 1613120022 | 2.40 | 2.90 | |
| Retaining snap ring | ||||
| 101 | 1610499073 | 6.73 | 8.14 | |
| Shim | ||||
| 102 | 1610102057 | 1.49 | 1.80 | |
| Shim | ||||
| 102 | 1610102058 | 1.49 | 1.80 | |
| O-Ring | ||||
| 104 | 1610210160 | 3.44 | 4.16 | |
| Bushing | ||||
| 111 | 1610290064 | 1.49 | 1.80 | |
| Ring Magnet | ||||
| 112 | 1619P10179 | 5.81 | 7.03 | |
| Tapping Screw | ||||
| 113 | 1613435009 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 117 | 1610913029 | 4.18 | 5.06 | |
| Stop Sleeve | ||||
| 120 | 1610590019 | 16.79 | 20.32 | |
| Torx Oval-Head Screw | ||||
| 125 | 1613435014 | 2.08 | 2.52 | |
| Screw | ||||
| 126 | 2603490022 | 1.00 | 1.21 | |
| Holding Sleeve | ||||
| 129 | 1619P10181 | 10.90 | 13.19 | |
| Cover | ||||
| 130 | 1619P10182 | 6.73 | 8.14 | |
| Sealing Frame | ||||
| 138 | 1611015053 | 11.37 | 13.76 | |
| Rotary shaft lip seal | ||||
| 141 | 1610290066 | 9.67 | 11.70 | |
| Rotary shaft lip seal | ||||
| 142 | 1610290069 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 143 | 1614601021 | 7.46 | 9.03 | |
| Spring retaining ring | ||||
| 145 | 1610119012 | 2.40 | 2.90 | |
| Slotted Spring Pin | ||||
| 150 | 2917790174 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 154 | 2916660023 | 4.94 | 5.98 | |
| Retaining ring | ||||
| 158 | 1614601070 | 2.08 | 2.52 | |
| Damping Ring | ||||
| 160 | 1610290095 | 10.90 | 13.19 | |
| Damping Ring | ||||
| 161 | 1610290094 | 4.18 | 5.06 | |
| O-Ring | ||||
| 162 | 1610210204 | 5.81 | 7.03 | |
| Seal Ring | ||||
| 163 | 1610290065 | 8.35 | 10.10 | |
| O-Ring | ||||
| 165 | 1610210079 | 5.81 | 7.03 | |
| Rotary shaft lip seal | ||||
| 167 | 1610283033 | 6.73 | 8.14 | |
| O-Ring | ||||
| 168 | 1610210144 | 4.94 | 5.98 | |
| O-Ring | ||||
| 168 | 1610210186 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 171 | 1619P07816 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613435013 | 2.08 | 2.52 | |
| Screw | ||||
| 173 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 174 | 1613435012 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 175 | 2912401018 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 176 | 1613435012 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 177 | 2603490024 | 1.49 | 1.80 | |
| Screw | ||||
| 177 | 1619P07821 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 178 | 1604412069 | 7.46 | 9.03 | |
| Screw | ||||
| 179 | 1619P07815 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Carrying Case | ||||
| 691 | 16054381D1 | 47.53 | 57.51 | |
| Armature 220-240V | ||||
| 803 | 1619P10769 | 58.03 | 70.22 | |
| groove ball bearing | ||||
| 803/13 | 1610900026 | 11.37 | 13.76 | |
| groove ball bearing | ||||
| 803/14 | 1610905041 | 10.90 | 13.19 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A4CG | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 811 | 1617014138 | 17.60 | 21.30 | |
| Spiral Spring | ||||
| 817 | 1614652004 | 7.46 | 9.03 | |
| Bushing | ||||
| 821 | 1619P10749 | 21.30 | 25.77 | |
| Impact Mechanism Housing | ||||
| 840 | 1619P10770 | 110.30 | 133.46 | |
| Striker Pin | ||||
| 841 | 1619P10752 | 43.12 | 52.18 | |
| Control Fork | ||||
| 849 | 1617000839 | 23.90 | 28.92 | |
| Guide Bushing | ||||
| 854 | 1619P10847 | 58.03 | 70.22 | |
| Hammer Piston | ||||
| 856 | 1619P10765 | 31.42 | 38.02 | |
| Spur Wheel Clutch | ||||
| 860 | 1619P10766 | 88.83 | 107.48 | |
| Spur Wheel Clutch | ||||
| 860 | 1607000F00 | 47.53 | 57.51 | |
| Housing Cover | ||||
| 873 | 1619P10767 | 39.14 | 47.36 | |
| Auxiliary Handle | ||||
| 884 | 1619P07778 | 14.94 | 18.08 | |
| Wear and Tear Part Set | ||||
| 897 | 1619P10768 | 52.45 | 63.46 | |
