Here you will find all available parts and drawings of the 'Bosch 0611222708 (GBH4DSC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

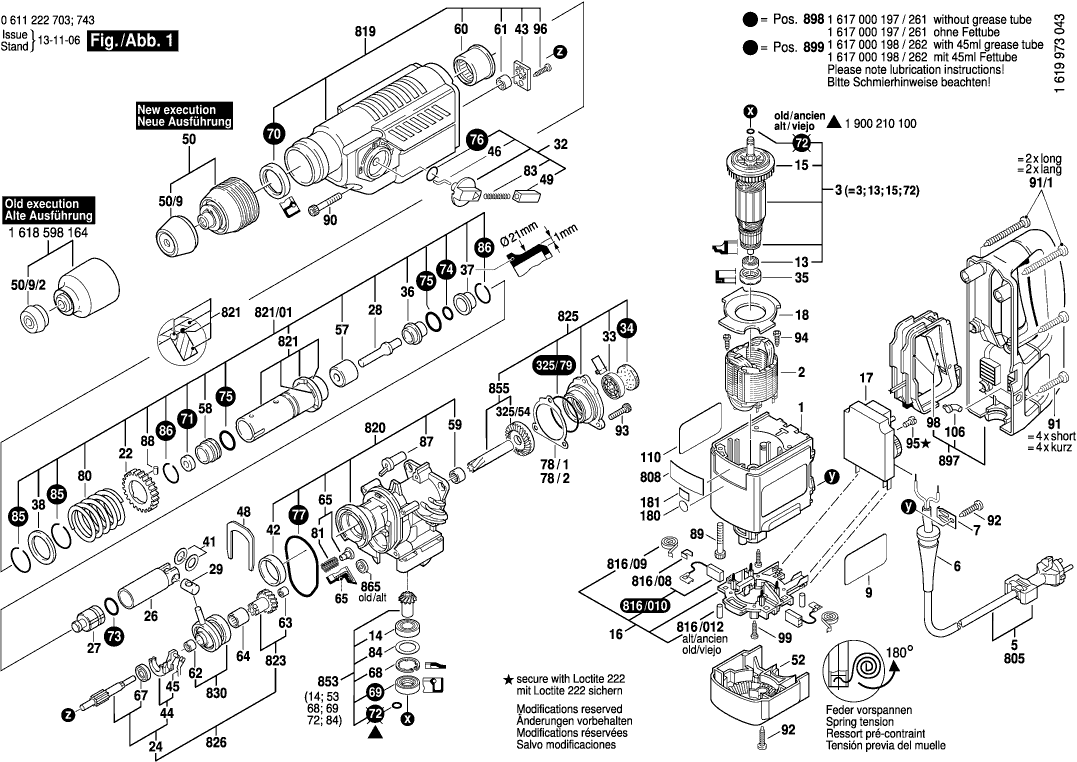

Technical drawing of model Bosch 0611222708 (GBH4DSC)
Spare parts list of model Bosch 0611222708 (GBH4DSC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1615108059 | |||
| Field 230-240V | ||||
| 2 | 2604220549 | 33.33 | 40.33 | |
| No longer available, no replacement | ||||
| 3 | 1614010128 | |||
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110633 | 2.52 | 3.05 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1900900289 | 10.90 | 13.19 | |
| Fan | ||||
| 15 | 1616B00064 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 16 | 1614336019 | 33.33 | 40.33 | |
| No longer available, no replacement | ||||
| 17 | 1617233018 | |||
| Air-Deflector Ring | ||||
| 18 | 1610591011 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 22 | 1616317602 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 24 | 1617000500 | |||
| No longer available, no replacement | ||||
| 26 | 1618700063 | |||
| Striker | ||||
| 27 | 1618710060 | 14.94 | 18.08 | |
| Striker Pin | ||||
| 28 | 1613124043 | 9.67 | 11.70 | |
| Piston Pin | ||||
| 29 | 1613105012 | 3.44 | 4.16 | |
| Clamp Handle | ||||
| 32 | 1612026037 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 33 | 1610190016 | |||
| Felt Disc | ||||
| 34 | 1610005000 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 35 | 1610206021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 36 | 1610390016 | |||
| No longer available, no replacement | ||||
| 37 | 1610390032 | |||
| No longer available, no replacement | ||||
| 38 | 1610102026 | |||
| Shim washer | ||||
| 41 | 1610101011 | 1.49 | 1.80 | |
| Plain bearing | ||||
| 42 | 1610202015 | 2.86 | 3.46 | |
| Tab Washer | ||||
| 43 | 1611098005 | 2.86 | 3.46 | |
| Switching Element | ||||
| 44 | 1615820092 | 2.40 | 2.90 | |
| Switch Spring | ||||
| 45 | 1614651014 | 1.49 | 1.80 | |
| Driver Pin | ||||
| 46 | 1614690002 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 48 | 1611016003 | 2.08 | 2.52 | |
| Switch Button | ||||
| 49 | 1612026035 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 1618598175 | |||
| Protective Cap | ||||
| 50/9 | 1610508026 | 4.18 | 5.06 | |
| Protective Cap | ||||
| 50/9/2 | 1610508008 | 2.08 | 2.52 | |
| Cover BLUE | ||||
| 52 | 1615500289 | 3.04 | 3.68 | |
| Stop Bushing | ||||
| 57 | 1610390025 | 10.90 | 13.19 | |
| Guide Ring | ||||
| 58 | 1610390026 | 12.82 | 15.51 | |
| Needle bearing | ||||
| 59 | 1610910080 | 2.40 | 2.90 | |
| Needle-Roller Bearing | ||||
| 60 | 1610910073 | 10.90 | 13.19 | |
| Needle bearing | ||||
| 61 | 1610910098 | 3.44 | 4.16 | |
| Needle bearing | ||||
| 62 | 1610910074 | 3.44 | 4.16 | |
| Plain bearing | ||||
| 62 | 1610200020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 63 | 1610910064 | |||
| Needle-Roller Assembly | ||||
| 64 | 1610913010 | 4.18 | 5.06 | |
| Plain bearing | ||||
| 65 | 1610591016 | 2.86 | 3.46 | |
| groove ball bearing | ||||
| 67 | 1610905016 | 9.67 | 11.70 | |
| Retaining ring | ||||
| 68 | 1610119009 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 69 | 1610283041 | 6.73 | 8.14 | |
| Rotary shaft lip seal | ||||
| 70 | 1610283023 | 6.73 | 8.14 | |
| Scraper | ||||
| 71 | 1610290029 | 3.44 | 4.16 | |
| O-Ring | ||||
| 73 | 1610210121 | 2.40 | 2.90 | |
| O-Ring | ||||
| 74 | 1610210104 | 2.40 | 2.90 | |
| O-Ring | ||||
| 75 | 1610210159 | 2.86 | 3.46 | |
| O-Ring | ||||
| 76 | 1610210046 | 2.08 | 2.52 | |
| O-Ring | ||||
| 77 | 1610210106 | 2.40 | 2.90 | |
| Shim | ||||
| 78/1 | 1610134005 | 1.00 | 1.21 | |
| Shim | ||||
| 78/2 | 1610134006 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 80 | 1614634006 | 4.94 | 5.98 | |
| Compression Spring | ||||
| 81 | 1614611009 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 83 | 1614611006 | 3.44 | 4.16 | |
| Supporting Disc | ||||
| 84 | 1610101627 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 85 | 1614601011 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 86 | 1614601024 | 1.49 | 1.80 | |
| Screw Bushing | ||||
| 87 | 1610390027 | 1.00 | 1.21 | |
| Roller | ||||
| 88 | 1613200007 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 89 | 2910141168 | 2.86 | 3.46 | |
| Hex Socket Head Cap Screw | ||||
| 90 | 2910141168 | 2.86 | 3.46 | |
| Tapping Screw | ||||
| 91 | 2910211036 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 91/1 | 2910211038 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 92 | 2912401019 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 93 | 2910141162 | 1.90 | 2.30 | |
| Cross Recessed-Head Screw | ||||
| 94 | 2603435015 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 95 | 2910091082 | |||
| Tapping Screw | ||||
| 96 | 2912401018 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 98 | 1612026050 | |||
| Tapping Screw | ||||
| 99 | 2910211005 | 1.00 | 1.21 | |
| Light Conductor | ||||
| 106 | 1615510000 | 2.08 | 2.52 | |
| Reference Plate WORKING INSTRUCTIONS | ||||
| 110 | 1611110634 | 2.18 | 2.64 | |
| Auxiliary Handle | ||||
| 120 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 121 | 1618040054 | 4.94 | 5.98 | |
| T-Head Bolt | ||||
| 122 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 123 | 1611316009 | 5.81 | 7.03 | |
| Crown Gear | ||||
| 325/54 | 1616333029 | 12.82 | 15.51 | |
| O-Ring | ||||
| 325/79 | 2600210003 | 2.40 | 2.90 | |
| Depth-Gauge | ||||
| 652 | 1613001008 | 8.35 | 10.10 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Adapter | ||||
| 701 | 2607000186 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 713 | 2607001316 | |||
| No longer available, no replacement | ||||
| 791 | 2605438376 | |||
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 816/010 | 1617014124 | 13.13 | 15.89 | |
| Rubber Buffer | ||||
| 816/012 | 1613212004 | 3.04 | 3.68 | |
| Contact Strap | ||||
| 816/08 | 1611323002 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 816/09 | 1614652002 | |||
| No longer available, no replacement | ||||
| 819 | 1617000976 | |||
| Gear Housing | ||||
| 820 | 1617000315 | 64.67 | 78.25 | |
| No longer available, no replacement | ||||
| 821 | 1617000978 | |||
| No longer available, no replacement | ||||
| 821/01 | 1617000979 | |||
| No longer available, no replacement | ||||
| 823 | 1616328044 | |||
| No longer available, no replacement | ||||
| 825 | 1615805064 | |||
| No longer available, no replacement | ||||
| 826 | 1617000516 | |||
| No longer available, no replacement | ||||
| 830 | 1615819022 | |||
| No longer available, no replacement | ||||
| 853 | 1617000196 | |||
| Jack Shaft | ||||
| 855 | 1617000982 | 31.42 | 38.02 | |
| D-Groove Ball Thr Bearing | ||||
| 865 | 1610920007 | 4.18 | 5.06 | |
| Plain Washer | ||||
| 878 | 1610134008 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 884 | 1612025038 | |||
| No longer available, no replacement | ||||
| 897 | 1617000980 | |||
| No longer available, no replacement | ||||
| 898 | 1617000197 | |||
| Wear and Tear Part Set | ||||
| 899 | 1617000198 | 31.42 | 38.02 | |
