Here you will find all available parts and drawings of the 'Bosch 3611C32101 (GBH4-32DFR)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

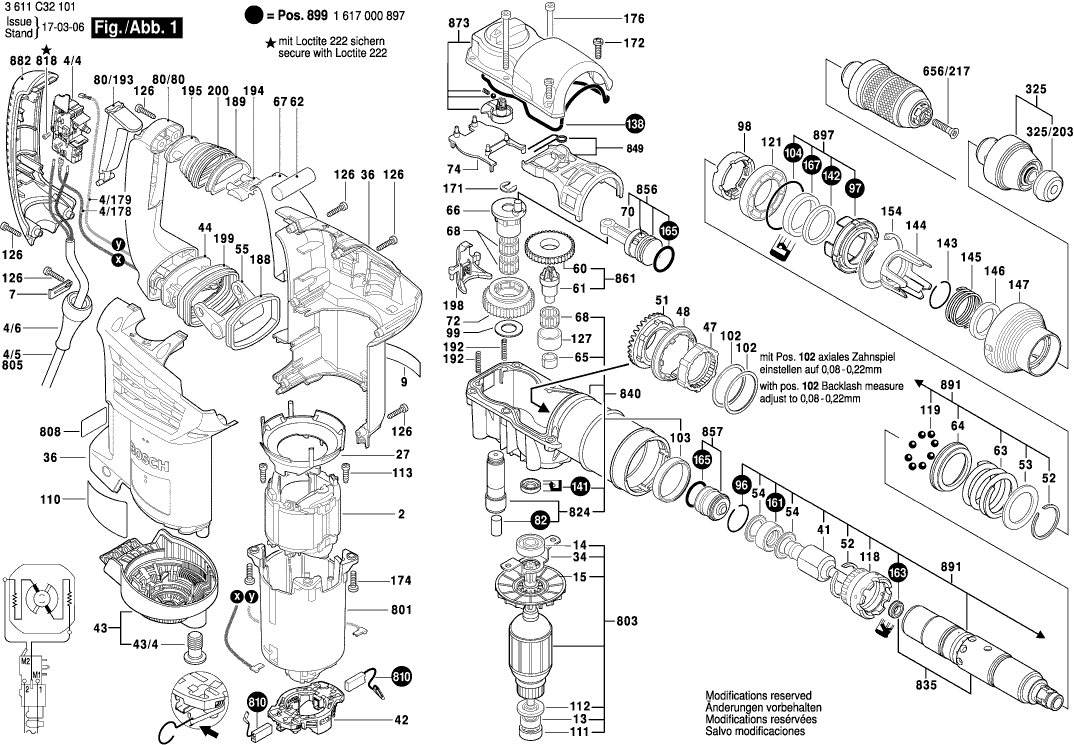

Technical drawing of model Bosch 3611C32101 (GBH4-32DFR)
Spare parts list of model Bosch 3611C32101 (GBH4-32DFR)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1619P08340 | 31.42 | 38.02 | |
| Connecting Cable | ||||
| 4/178 | 1614412055 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 4/179 | 1614412056 | 2.86 | 3.46 | |
| Switch | ||||
| 4/4 | 1617200127 | 27.81 | 33.65 | |
| Grommet | ||||
| 4/6 | 1600703034 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1617S028J8 | 7.46 | 9.03 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C1CA | 2.18 | 2.64 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1610905036 | 6.73 | 8.14 | |
| Fan | ||||
| 15 | 1616610100 | 3.44 | 4.16 | |
| Air-Deflector Ring | ||||
| 27 | 1610591043 | 3.44 | 4.16 | |
| Fixing Plate | ||||
| 34 | 1611322004 | 2.86 | 3.46 | |
| Housing Section | ||||
| 36 | 1615104049 | 27.81 | 33.65 | |
| Striker Pin | ||||
| 41 | 1613124088 | 27.81 | 33.65 | |
| Brush Holder | ||||
| 42 | 1614336072 | 27.81 | 33.65 | |
| Fan Cover | ||||
| 43 | 1615500384 | 9.67 | 11.70 | |
| Clamp Screw | ||||
| 43/4 | 1613490007 | 2.86 | 3.46 | |
| Rocker Foot | ||||
| 44 | 1614611025 | 2.86 | 3.46 | |
| Gear Sleeve | ||||
| 47 | 1616328049 | 12.82 | 15.51 | |
| Clutch Sleeve | ||||
| 48 | 1610290085 | 18.94 | 22.92 | |
| Crown Gear | ||||
| 51 | 1616333044 | 23.90 | 28.92 | |
| Spring retaining ring | ||||
| 52 | 1614601061 | 2.40 | 2.90 | |
| Supporting Disc | ||||
| 53 | 1610102634 | 2.40 | 2.90 | |
| Stop Disc | ||||
| 54 | 1610101020 | 4.18 | 5.06 | |
| Rocker Arm | ||||
| 55 | 1612099001 | 2.40 | 2.90 | |
| Cylindrical Gear | ||||
| 60 | 1616317076 | 12.82 | 15.51 | |
| Pinion | ||||
| 61 | 1616333046 | 21.30 | 25.77 | |
| Damping rubber | ||||
| 62 | 1610026002 | 2.18 | 2.64 | |
| Compression Spring | ||||
| 63 | 1614611026 | 6.73 | 8.14 | |
| Clutch Ring | ||||
| 64 | 1616409024 | 14.94 | 18.08 | |
| Plain bearing | ||||
| 65 | 1610301007 | 4.94 | 5.98 | |
| Eccentric | ||||
| 66 | 1616455006 | 33.33 | 40.33 | |
| Leaf Spring | ||||
| 67 | 1616232006 | 2.08 | 2.52 | |
| Needle-Roller Assembly | ||||
| 68 | 1610913021 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 70 | 1612001041 | 13.13 | 15.89 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616317077 | 31.42 | 38.02 | |
| Support Plate | ||||
| 74 | 1614336075 | 1.49 | 1.80 | |
| Switch-Pawl | ||||
| 80/193 | 1612026126 | 2.40 | 2.90 | |
| Handle | ||||
| 80/80 | 1615133033 | 10.90 | 13.19 | |
| Felt Seal | ||||
| 82 | 1610205010 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 85 | 1618040087 | 7.46 | 9.03 | |
| T-Head Bolt | ||||
| 86 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 87 | 1611316019 | 4.18 | 5.06 | |
| Retaining ring | ||||
| 96 | 1614601060 | 1.49 | 1.80 | |
| Sealing Sleeve | ||||
| 97 | 1610314005 | 2.40 | 2.90 | |
| Spacer Sleeve | ||||
| 98 | 1610211019 | 2.40 | 2.90 | |
| Supporting Disc | ||||
| 99 | 1610101626 | 1.49 | 1.80 | |
| Shim | ||||
| 102 | 1610102079 | 2.08 | 2.52 | |
| Shim | ||||
| 102 | 1610102081 | 2.08 | 2.52 | |
| Shim | ||||
| 102 | 1610102080 | 1.00 | 1.21 | |
| Plain bearing | ||||
| 103 | 1610200027 | 3.44 | 4.16 | |
| O-Ring | ||||
| 104 | 1610210196 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 110 | 1617S028J6 | 9.67 | 11.70 | |
| Reference Plate | ||||
| 110 | 1611110Y97 | 2.18 | 2.64 | |
| Intermediate Ring | ||||
| 111 | 1600502023 | 2.08 | 2.52 | |
| Sealing washer | ||||
| 112 | 1610190038 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 113 | 1613435038 | 1.00 | 1.21 | |
| Clutch Sleeve | ||||
| 118 | 1616455007 | 34.82 | 42.13 | |
| Ball | ||||
| 119 | 1903230013 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 121 | 1610200028 | 7.46 | 9.03 | |
| Torx Oval-Head Screw | ||||
| 126 | 2603490023 | 1.00 | 1.21 | |
| Bushing | ||||
| 127 | 1610422021 | 4.94 | 5.98 | |
| Sealing Frame | ||||
| 138 | 1611015058 | 5.27 | 6.38 | |
| Rotary shaft lip seal | ||||
| 141 | 1600A0089A | 6.73 | 8.14 | |
| Felt Washer | ||||
| 142 | 1610205012 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 143 | 2916540015 | 1.49 | 1.80 | |
| Collar | ||||
| 144 | 1610241001 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 145 | 1614611023 | 1.49 | 1.80 | |
| Backup ring | ||||
| 146 | 1610200029 | 6.73 | 8.14 | |
| Guide Sleeve | ||||
| 147 | 1610390056 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 154 | 1614601062 | 2.08 | 2.52 | |
| Damping Ring | ||||
| 161 | 1610290092 | 4.18 | 5.06 | |
| Shaft Seal | ||||
| 163 | 1600A009VC | 2.86 | 3.46 | |
| O-Ring | ||||
| 165 | 1610210199 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 167 | 1610283030 | 11.37 | 13.76 | |
| Locking washer | ||||
| 171 | 2916080911 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 172 | 1613490013 | 1.32 | 1.60 | |
| Thread-forming tap. Screw | ||||
| 172 | 160343508E | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 174 | 1613490014 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 176 | 2912738178 | 1.00 | 1.21 | |
| Grip-Spring Tensioning E | ||||
| 188 | 1610209008 | 3.44 | 4.16 | |
| Clamping Piece | ||||
| 189 | 1610209009 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 192 | 1614611016 | 1.00 | 1.21 | |
| Screw Plate | ||||
| 194 | 1610099008 | 2.08 | 2.52 | |
| Clamping Piece | ||||
| 195 | 1610099009 | 2.40 | 2.90 | |
| Switch Slide | ||||
| 198 | 1612099000 | 3.44 | 4.16 | |
| Bellows | ||||
| 199 | 1610284002 | 5.81 | 7.03 | |
| Bellows | ||||
| 200 | 1610284001 | 5.81 | 7.03 | |
| Tool Holding Fixture | ||||
| 325 | 1617000895 | 43.12 | 52.18 | |
| Protective Cap | ||||
| 325/203 | 1610508047 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 656/217 | 2603421229 | 1.49 | 1.80 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Depth-Gauge | ||||
| 688 | 1613001008 | 8.35 | 10.10 | |
| Motor Housing | ||||
| 801 | 1615108150 | 16.79 | 20.32 | |
| Armature With Fan | ||||
| 803 | 1614010252 | 80.26 | 97.11 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1614321079 | 14.94 | 18.08 | |
| Socket head cap screw | ||||
| 818 | 2603410001 | 1.49 | 1.80 | |
| Eccentric Shaft | ||||
| 824 | 1613123013 | 16.79 | 20.32 | |
| Hammer Pipe | ||||
| 835 | 1615806229 | 98.18 | 118.80 | |
| Impact Mechanism Housing | ||||
| 840 | 1615190168 | 64.67 | 78.25 | |
| Control Fork | ||||
| 849 | 1611329030 | 9.67 | 11.70 | |
| Hammer Piston | ||||
| 856 | 1618700093 | 13.13 | 15.89 | |
| Striker | ||||
| 857 | 1618710094 | 16.79 | 20.32 | |
| Pinion | ||||
| 861 | 1616333048 | 21.30 | 25.77 | |
| Housing Cover | ||||
| 873 | 1615500411 | 27.81 | 33.65 | |
| Handle Cover | ||||
| 882 | 16170006AE | 11.37 | 13.76 | |
| Auxiliary Handle | ||||
| 884 | 1612025079 | 14.94 | 18.08 | |
| Hammer Pipe | ||||
| 891 | 1615806230 | 155.51 | 188.17 | |
| No longer available, no replacement | ||||
| 895 | 1615438426 | |||
| Sealing Sleeve | ||||
| 897 | 1610314006 | 12.82 | 15.51 | |
| Wear and Tear Part Set | ||||
| 899 | 1617000897 | 34.82 | 42.13 | |
