Here you will find all available parts and drawings of the 'Bosch 3611J03R00 (GBH36V-ECCOMPACT/GBH36V-LIY)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

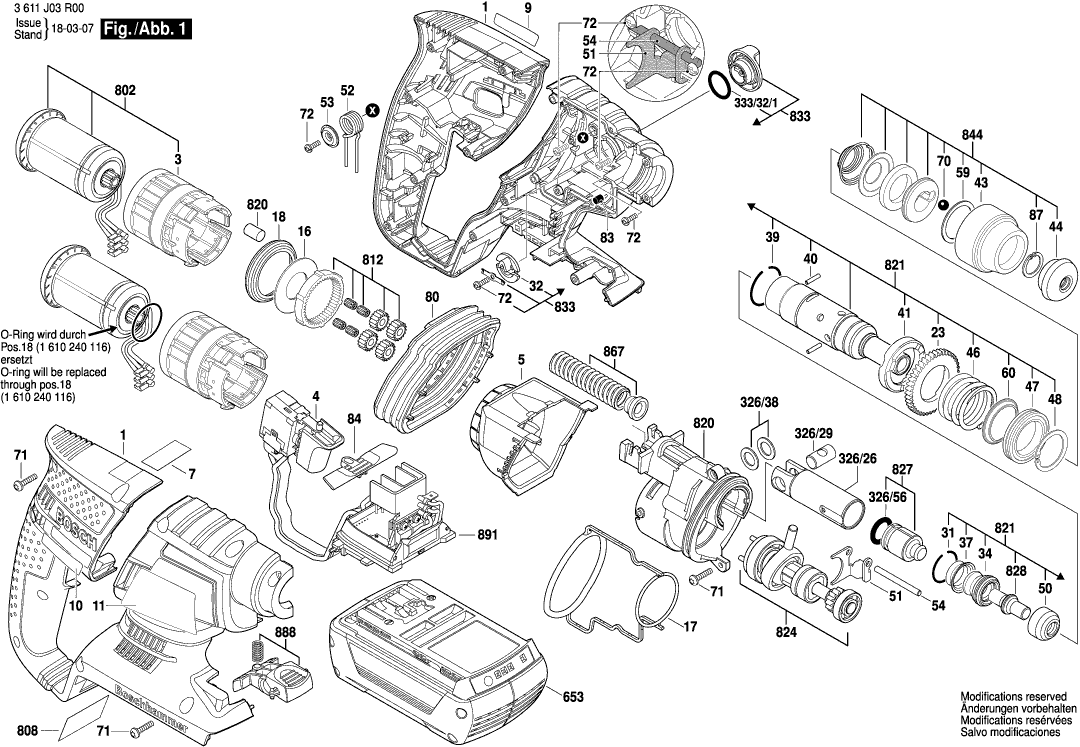

Technical drawing of model Bosch 3611J03R00 (GBH36V-ECCOMPACT/GBH36V-LIY)
Spare parts list of model Bosch 3611J03R00 (GBH36V-ECCOMPACT/GBH36V-LIY)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 161510817B | 30.08 | 36.40 | |
| Centering Sleeve | ||||
| 3 | 1610499067 | 10.90 | 13.19 | |
| Electronics Module | ||||
| 4 | 1607233316 | 146.07 | 176.74 | |
| Air Path BLACK | ||||
| 5 | 1610591044 | 2.52 | 3.05 | |
| Sticker | ||||
| 7 | 1611110Z32 | 2.18 | 2.64 | |
| Manufacturer's nameplate J | ||||
| 9 | 1611110Z40 | 2.52 | 3.05 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0UL | 2.18 | 2.64 | |
| Manufacturer's nameplate | ||||
| 10 | 160111C0UM | 2.18 | 2.64 | |
| Reference Plate J | ||||
| 11 | 1611110Z39 | 2.18 | 2.64 | |
| Reference Plate EU, GB, AUS, KOREA, CN | ||||
| 11 | 1611110Z23 | 2.18 | 2.64 | |
| Supporting Disc | ||||
| 16 | 1610102637 | 1.49 | 1.80 | |
| Sealing Frame | ||||
| 17 | 1611015060 | 5.96 | 7.21 | |
| Seal Ring | ||||
| 18 | 1610290116 | 4.18 | 5.06 | |
| Cylindrical Gear | ||||
| 23 | 1616317084 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 31 | 1614601053 | 1.00 | 1.21 | |
| Switch Button | ||||
| 32 | 1612026114 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 34 | 1610508051 | 4.18 | 5.06 | |
| Holding Plate | ||||
| 37 | 1610551008 | 2.18 | 2.64 | |
| Retaining ring | ||||
| 39 | 160460102U | 1.00 | 1.21 | |
| Straight Pin | ||||
| 40 | 1613100019 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 40 | 1613100032 | 1.00 | 1.21 | |
| Ratchet Disc | ||||
| 41 | 1610102072 | 5.81 | 7.03 | |
| Protection Sleeve | ||||
| 43 | 1610499080 | 2.08 | 2.52 | |
| Protective Cap | ||||
| 44 | 1610508052 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 46 | 1614630003 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 47 | 1610905039 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 48 | 1614601054 | 1.49 | 1.80 | |
| Guide Bushing | ||||
| 50 | 1619P11562 | 9.67 | 11.70 | |
| Thrust Ring | ||||
| 50 | 1600A00FL3 | 2.86 | 3.46 | |
| Shift Plate | ||||
| 51 | 1613231014 | 4.94 | 5.98 | |
| Coiled Spring | ||||
| 52 | 1614690005 | 1.49 | 1.80 | |
| Pressure Disc | ||||
| 53 | 1619P00828 | 1.00 | 1.21 | |
| Guide Rod | ||||
| 54 | 1613100033 | 1.49 | 1.80 | |
| Friction Washer | ||||
| 59 | 1610102045 | 1.00 | 1.21 | |
| Support Disc | ||||
| 60 | 1610190054 | 1.49 | 1.80 | |
| Ball | ||||
| 70 | 1903230013 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 71 | 1613435036 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 2603490017 | 2.08 | 2.52 | |
| Bellows | ||||
| 80 | 1610415002 | 11.02 | 13.33 | |
| Damping rubber | ||||
| 83 | 2603100056 | 1.49 | 1.80 | |
| Switch Slide | ||||
| 84 | 1613231023 | 1.32 | 1.60 | |
| Spring retaining ring | ||||
| 87 | 1614601077 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 120 | 1612025078 | 20.39 | 24.67 | |
| Hammer Piston | ||||
| 326/26 | 1618700083 | 9.67 | 11.70 | |
| Piston Pin | ||||
| 326/29 | 1613100034 | 2.86 | 3.46 | |
| Guide Disc | ||||
| 326/38 | 1610100016 | 1.49 | 1.80 | |
| O-Ring | ||||
| 326/56 | 1610210186 | 2.08 | 2.52 | |
| O-Ring | ||||
| 333/32/1 | 1610210185 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 651 | 2609005615 | |||
| Slide-In Accu Package | ||||
| 653 | 2607336969 | 262.05 | 317.08 | |
| Battery Pack 36V 2,0 Ah Li | ||||
| 653 | 2607336913 | 187.62 | 227.02 | |
| Charger EU GAL 3680 CV 230/14,4-36V | ||||
| 654 | 2607226457 | 173.95 | 210.48 | |
| Fast Charger CN 220/36V | ||||
| 654 | 2607225409 | 148.65 | 179.87 | |
| Fast Charger J GAL 3680 CV 100/14,4-36V | ||||
| 654 | 2607225909 | 126.98 | 153.65 | |
| Charger GB GAL 3680 CV 230/14,4-26V | ||||
| 654 | 2607226459 | 126.98 | 153.65 | |
| Charger ROK GAL 3680 CV 220/14,4-36V | ||||
| 654 | 2607226465 | 126.98 | 153.65 | |
| Fast Charger AUS AL 36V-20 | ||||
| 654 | 2607226277 | 55.25 | 66.85 | |
| DC motor 36V | ||||
| 802 | 1617000664 | 166.62 | 201.61 | |
| Nameplate | ||||
| 808 | 160111A3H9 | 2.40 | 2.90 | |
| Planetary Gear Train | ||||
| 812 | 1617000665 | 14.94 | 18.08 | |
| Intermediate Flange | ||||
| 820 | 1617000666 | 37.50 | 45.38 | |
| Hammer Pipe | ||||
| 821 | 1617000667 | 64.67 | 78.25 | |
| Jack Shaft | ||||
| 824 | 1607000D10 | 71.68 | 86.73 | |
| Striker | ||||
| 827 | 1617000669 | 16.79 | 20.32 | |
| Striker Pin | ||||
| 828 | 1613124084 | 4.18 | 5.06 | |
| Clamp Handle | ||||
| 833 | 1617000670 | 9.47 | 11.46 | |
| Protection Sleeve | ||||
| 844 | 16170006D3 | 10.90 | 13.19 | |
| Compression Spring | ||||
| 867 | 1617000671 | 5.96 | 7.21 | |
| Push-Button | ||||
| 888 | 1617000672 | 2.52 | 3.05 | |
| Grease Tube | ||||
| 890 | 1615430001 | 22.88 | 27.68 | |
| Contact retainer | ||||
| 891 | 1609280425 | 13.90 | 16.82 | |
