Here you will find all available parts and drawings of the 'Bosch 3611J06000 (GBH36V-LIPLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

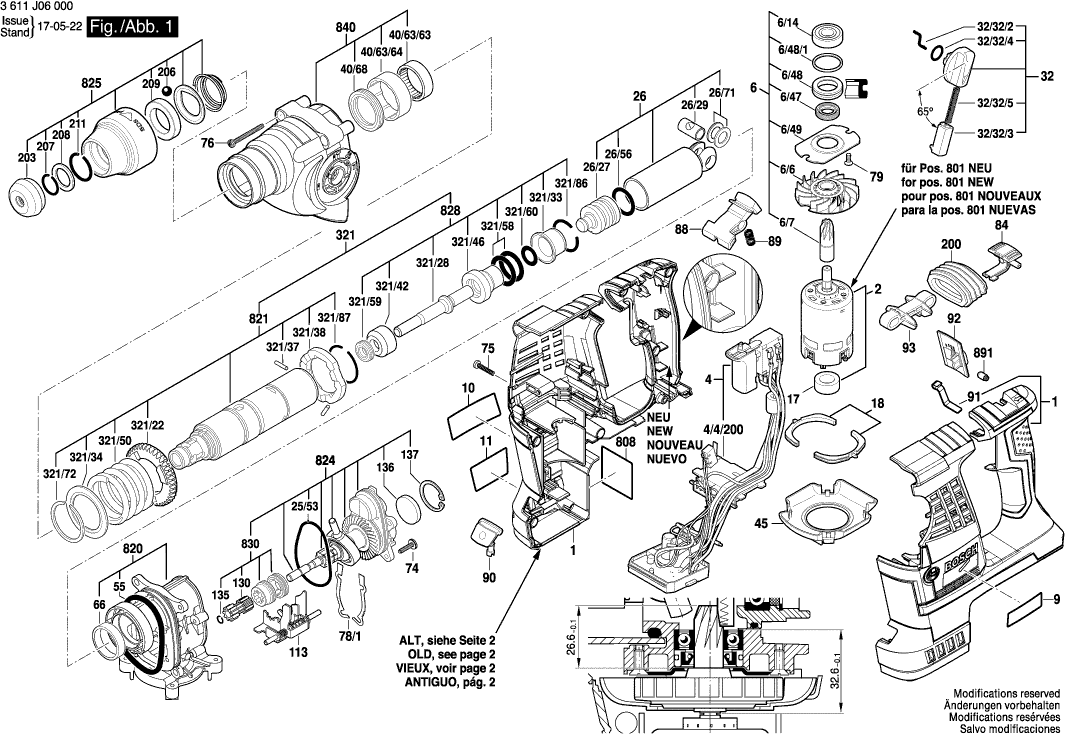

Technical drawing of model Bosch 3611J06000 (GBH36V-LIPLUS)
Spare parts list of model Bosch 3611J06000 (GBH36V-LIPLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 16051082GT | 20.39 | 24.67 | |
| DC motor | ||||
| 2 | 1607022662 | 126.98 | 153.65 | |
| Electronics Module | ||||
| 4 | 1600A00A4B | 114.26 | 138.25 | |
| Contact retainer | ||||
| 4/4/200 | 1609280A56 | 13.90 | 16.82 | |
| Drive pinion | ||||
| 6 | 1617000A5F | 33.33 | 40.33 | |
| groove ball bearing | ||||
| 6/14 | 1610905044 | 8.35 | 10.10 | |
| Rotary shaft lip seal | ||||
| 6/47 | 1610283047 | 11.37 | 13.76 | |
| Bearing Ring | ||||
| 6/48 | 1610290102 | 6.73 | 8.14 | |
| O-Ring | ||||
| 6/48/1 | 1610210208 | 1.49 | 1.80 | |
| End Shield | ||||
| 6/49 | 1615700044 | 2.08 | 2.52 | |
| Fan | ||||
| 6/6 | 1616610157 | 4.58 | 5.54 | |
| Drive Pinion | ||||
| 6/7 | 1600A01143 | 15.61 | 18.89 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C1CP | 2.18 | 2.64 | |
| Manufacturer's nameplate | ||||
| 10 | 160111C1CN | 2.18 | 2.64 | |
| Reference Plate | ||||
| 11 | 161111C02G | 2.52 | 3.05 | |
| Bearing Ring | ||||
| 17 | 1600A001HK | 1.90 | 2.30 | |
| Motor Bearing | ||||
| 18 | 1600A001FP | 8.48 | 10.26 | |
| O-Ring | ||||
| 25/53 | 1610210245 | 2.86 | 3.46 | |
| Hammer Piston | ||||
| 26 | 16170006A5 | 37.50 | 45.38 | |
| Striker | ||||
| 26/27 | 1610311019 | 18.94 | 22.92 | |
| Piston Pin | ||||
| 26/29 | 1613105020 | 4.94 | 5.98 | |
| Piston Pin | ||||
| 26/29 | 1600A01TD0 | 4.18 | 5.06 | |
| O-Ring | ||||
| 26/56 | 1610210121 | 2.40 | 2.90 | |
| Guide Disc | ||||
| 26/71 | 1610100016 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 32 | 1612026151 | 13.13 | 15.89 | |
| Driver Pin | ||||
| 32/32/2 | 1614690009 | 3.44 | 4.16 | |
| Switch Button | ||||
| 32/32/3 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/32/4 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 32/32/5 | 1614611006 | 3.44 | 4.16 | |
| Needle bearing | ||||
| 40/63/63 | 1600A001CN | 2.40 | 2.90 | |
| Bushing | ||||
| 40/63/64 | 1610390069 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 40/68 | 1610283036 | 7.46 | 9.03 | |
| Air-Deflector Ring | ||||
| 45 | 1610591055 | 2.18 | 2.64 | |
| Seal Ring | ||||
| 55 | 1610210206 | 5.81 | 7.03 | |
| Plain bearing | ||||
| 66 | 1610202021 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 74 | 160343000V | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 75 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 76 | 2603490027 | 1.00 | 1.21 | |
| Shim 0,3 MM | ||||
| 78/1 | 1600A003TA | 1.00 | 1.21 | |
| Shim 0,15 MM | ||||
| 78/1 | 1600A004FU | 1.00 | 1.21 | |
| Shim 0,45 MM | ||||
| 78/1 | 1600A004FV | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 79 | 1613435023 | 1.00 | 1.21 | |
| Switch Slide | ||||
| 84 | 1600A001E5 | 1.00 | 1.21 | |
| Push-Button | ||||
| 88 | 1600A001CM | 2.18 | 2.64 | |
| Compression Spring | ||||
| 89 | 1604612007 | 1.90 | 2.30 | |
| Lens | ||||
| 90 | 1600A001E3 | 1.90 | 2.30 | |
| Leaf Spring | ||||
| 91 | 1601200006 | 1.00 | 1.21 | |
| Control Element | ||||
| 92 | 1600A001ED | 2.18 | 2.64 | |
| Guide Piece | ||||
| 93 | 1600A0022Y | 2.18 | 2.64 | |
| Switching Panel | ||||
| 113 | 1616325002 | 11.37 | 13.76 | |
| Auxiliary Handle | ||||
| 120 | 160202508Y | 21.30 | 25.77 | |
| Auxiliary Handle | ||||
| 120/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490001 | 8.35 | 10.10 | |
| Support clamp | ||||
| 120/802 | 1617000685 | 4.94 | 5.98 | |
| Gear Sleeve | ||||
| 130 | 1616333049 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 135 | 1614601067 | 1.49 | 1.80 | |
| Felt Disc | ||||
| 136 | 1610205017 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 137 | 2916660012 | 1.49 | 1.80 | |
| Bellows | ||||
| 200 | 1600A001CL | 4.94 | 5.98 | |
| Protective Cap | ||||
| 203 | 1610508047 | 2.08 | 2.52 | |
| Ball | ||||
| 206 | 1613230003 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 207 | 1614601027 | 1.00 | 1.21 | |
| Retaining Washer | ||||
| 208 | 1610101629 | 1.00 | 1.21 | |
| Friction Washer | ||||
| 209 | 1610102638 | 3.44 | 4.16 | |
| Retaining ring | ||||
| 211 | 160460102S | 1.00 | 1.21 | |
| Toolholder | ||||
| 321 | 16170006CA | 64.67 | 78.25 | |
| Cylindrical Gear | ||||
| 321/22 | 1616312004 | 11.37 | 13.76 | |
| Striker Pin | ||||
| 321/28 | 1613124098 | 18.94 | 22.92 | |
| Holding Jacket | ||||
| 321/33 | 1610590020 | 6.73 | 8.14 | |
| Supporting Disc | ||||
| 321/34 | 1610190067 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 321/37 | 1613100019 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 321/38 | 1600A008AG | 3.44 | 4.16 | |
| Thrust Ring | ||||
| 321/42 | 1610102084 | 8.35 | 10.10 | |
| Guide Bushing | ||||
| 321/46 | 1610390068 | 14.94 | 18.08 | |
| Compression Spring | ||||
| 321/50 | 1614615008 | 5.81 | 7.03 | |
| O-Ring | ||||
| 321/58 | 1610210105 | 4.18 | 5.06 | |
| Shaft Seal | ||||
| 321/59 | 1600A009VC | 2.86 | 3.46 | |
| O-Ring | ||||
| 321/60 | 1610210209 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 321/72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 321/86 | 1614601034 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 321/87 | 1604601028 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 651 | 1613001009 | 3.44 | 4.16 | |
| Battery Pack KR, 36V, 6.0Ah, LI | ||||
| 653 | 1607A3504S | 342.01 | 413.83 | |
| Battery Pack GBA 36V 6.0Ah H-C | ||||
| 653 | 1607A350RC | 340.97 | 412.57 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 653 | 1607A350R2 | 262.05 | 317.08 | |
| Charger EU GAL 3680 CV 230/14,4-36V | ||||
| 654 | 2607226457 | 173.95 | 210.48 | |
| Charger GB GAL 3680 CV 230/14,4-36V | ||||
| 654 | 2607226461 | 146.07 | 176.74 | |
| Charger GB GAL 3680 CV 230/14,4-26V | ||||
| 654 | 2607226459 | 126.98 | 153.65 | |
| Fast Charger AU GAL 3680 CV 240/14,4-36V | ||||
| 654 | 2607225903 | 113.29 | 137.08 | |
| Fast Charger TJ GAL 3680 CV 115/14,4-36V | ||||
| 654 | 2607226031 | 81.47 | 98.58 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Housing Section | ||||
| 801 | 16051082FG | 37.50 | 45.38 | |
| DC motor | ||||
| 802 | 1617000A5H | 126.98 | 153.65 | |
| Electronics Module | ||||
| 804 | 1600A011GZ | 114.26 | 138.25 | |
| Nameplate | ||||
| 808 | 160111A3H9 | 2.40 | 2.90 | |
| Intermediate Flange | ||||
| 820 | 1617000A5J | 31.42 | 38.02 | |
| Tool Holding Fixture | ||||
| 821 | 16170006C9 | 52.45 | 63.46 | |
| Jack Shaft | ||||
| 824 | 1617000A5K | 64.67 | 78.25 | |
| Tool Holding Fixture | ||||
| 825 | 16170006CB | 11.37 | 13.76 | |
| Striker Pin | ||||
| 828 | 1617000697 | 43.12 | 52.18 | |
| Gear Sleeve | ||||
| 830 | 1617000698 | 31.42 | 38.02 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000699 | 27.81 | 33.65 | |
