Here you will find all available parts and drawings of the 'Bosch 3611B3A0K1 (GBH3-28DRE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

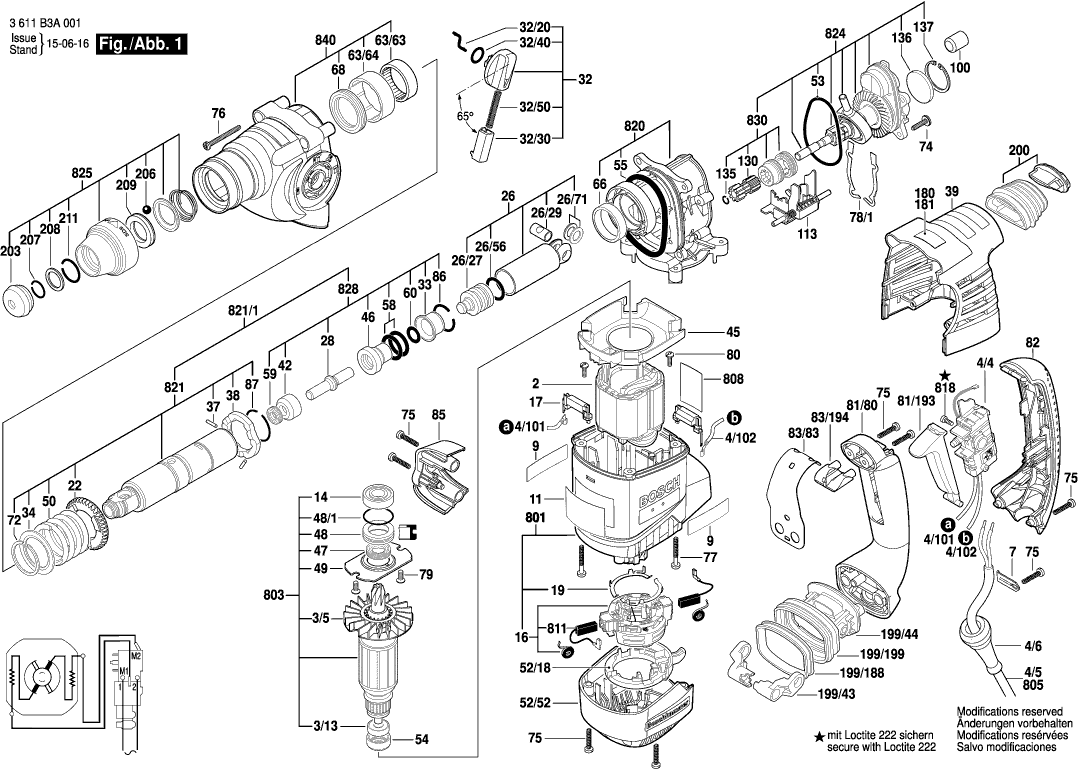

Technical drawing of model Bosch 3611B3A0K1 (GBH3-28DRE)
Spare parts list of model Bosch 3611B3A0K1 (GBH3-28DRE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1614220117 | 14.94 | 18.08 | |
| groove ball bearing | ||||
| 3/13 | 1610905032 | 4.94 | 5.98 | |
| Fan | ||||
| 3/5 | 1616610104 | 8.35 | 10.10 | |
| Connecting Cable | ||||
| 4/101 | 1614490015 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 4/102 | 1614490016 | 2.86 | 3.46 | |
| Switch | ||||
| 4/4 | 1617200127 | 27.81 | 33.65 | |
| Grommet | ||||
| 4/6 | 1600703034 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0UT | 2.40 | 2.90 | |
| Reference Plate | ||||
| 11 | 1611110Z43 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1610905044 | 8.35 | 10.10 | |
| Brush Plate | ||||
| 16 | 1614336064 | 18.94 | 22.92 | |
| Adapter module | ||||
| 17 | 1600A0032J | 1.49 | 1.80 | |
| Switch Contact | ||||
| 19 | 1611329024 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 22 | 1616312004 | 11.37 | 13.76 | |
| Hammer Piston | ||||
| 26 | 16170006A5 | 37.50 | 45.38 | |
| Striker | ||||
| 26/27 | 1610311019 | 18.94 | 22.92 | |
| Piston Pin | ||||
| 26/29 | 1600A01TD0 | 4.18 | 5.06 | |
| O-Ring | ||||
| 26/56 | 1610210121 | 2.40 | 2.90 | |
| Guide Disc | ||||
| 26/71 | 1610100016 | 1.49 | 1.80 | |
| Striker Pin | ||||
| 28 | 1613124098 | 18.94 | 22.92 | |
| Clamp Handle | ||||
| 32 | 1612026151 | 13.13 | 15.89 | |
| Driver Pin | ||||
| 32/20 | 1614690009 | 3.44 | 4.16 | |
| Switch Button | ||||
| 32/30 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/40 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 32/50 | 1614611006 | 3.44 | 4.16 | |
| Holding Jacket | ||||
| 33 | 1610590020 | 6.73 | 8.14 | |
| Supporting Disc | ||||
| 34 | 1610190067 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 37 | 1613100019 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 38 | 1600A008AG | 3.44 | 4.16 | |
| Gear Cover | ||||
| 39 | 1615808102 | 12.82 | 15.51 | |
| Thrust Ring | ||||
| 42 | 1610102084 | 8.35 | 10.10 | |
| Air-Deflector Ring | ||||
| 45 | 1610591046 | 1.49 | 1.80 | |
| Guide Bushing | ||||
| 46 | 1610390068 | 14.94 | 18.08 | |
| Rotary shaft lip seal | ||||
| 47 | 1610283047 | 11.37 | 13.76 | |
| Bearing Ring | ||||
| 48 | 1610290102 | 6.73 | 8.14 | |
| O-Ring | ||||
| 48/1 | 1610210208 | 1.49 | 1.80 | |
| End Shield | ||||
| 49 | 1615700044 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 50 | 1614615008 | 5.81 | 7.03 | |
| Clutch Sleeve | ||||
| 52/18 | 1610290098 | 4.18 | 5.06 | |
| Cover | ||||
| 52/52 | 1615108154 | 9.67 | 11.70 | |
| O-Ring | ||||
| 53 | 1610210245 | 2.86 | 3.46 | |
| Intermediate Ring | ||||
| 54 | 1600502023 | 2.08 | 2.52 | |
| Seal Ring | ||||
| 55 | 1610210206 | 5.81 | 7.03 | |
| O-Ring | ||||
| 58 | 1610210105 | 4.18 | 5.06 | |
| Shaft Seal | ||||
| 59 | 1600A009VC | 2.86 | 3.46 | |
| O-Ring | ||||
| 60 | 1610210209 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 63/63 | 1610910063 | 5.81 | 7.03 | |
| Bushing | ||||
| 63/64 | 1610390069 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 66 | 1610202021 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 68 | 1610283036 | 7.46 | 9.03 | |
| Retaining ring | ||||
| 72 | 1604601027 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 74 | 160343000V | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 75 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 76 | 2603490027 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 77 | 1613490017 | 2.40 | 2.90 | |
| Shim 0,3 MM | ||||
| 78/1 | 1600A003TA | 1.00 | 1.21 | |
| Shim 0,15 MM | ||||
| 78/1 | 1600A004FU | 1.00 | 1.21 | |
| Shim 0,45 MM | ||||
| 78/1 | 1600A004FV | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 79 | 1613435023 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 80 | 1613435038 | 1.00 | 1.21 | |
| Switch-Pawl | ||||
| 81/193 | 1612026126 | 2.40 | 2.90 | |
| Handle | ||||
| 81/80 | 1615133033 | 10.90 | 13.19 | |
| Handle Cover | ||||
| 82 | 16170006AE | 11.37 | 13.76 | |
| Screw Plate | ||||
| 83/194 | 1610099013 | 2.08 | 2.52 | |
| Leaf Spring | ||||
| 83/83 | 1614690008 | 4.94 | 5.98 | |
| Cover | ||||
| 85 | 1615500404 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 86 | 1614601034 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 87 | 1604601028 | 1.00 | 1.21 | |
| Damping rubber | ||||
| 100 | 1610026003 | 1.49 | 1.80 | |
| Switching Panel | ||||
| 113 | 1616325002 | 11.37 | 13.76 | |
| Auxiliary Handle | ||||
| 120 | 160202508Y | 21.30 | 25.77 | |
| Auxiliary Handle | ||||
| 120/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490001 | 8.35 | 10.10 | |
| Support clamp | ||||
| 120/802 | 1617000685 | 4.94 | 5.98 | |
| Gear Sleeve | ||||
| 130 | 1616333049 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 135 | 1614601067 | 1.49 | 1.80 | |
| Felt Disc | ||||
| 136 | 1610205017 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 137 | 2916660012 | 1.49 | 1.80 | |
| Warning Plate | ||||
| 180 | 1611110W08 | 1.94 | 2.35 | |
| Grip-Spring Tensioning E | ||||
| 199/188 | 1610209008 | 3.44 | 4.16 | |
| Bellows | ||||
| 199/199 | 1610284002 | 5.81 | 7.03 | |
| Rocker Arm | ||||
| 199/43 | 1612099002 | 2.40 | 2.90 | |
| Rocker Foot | ||||
| 199/44 | 1614611025 | 2.86 | 3.46 | |
| Bellows | ||||
| 200 | 1610284007 | 5.81 | 7.03 | |
| Protective Cap | ||||
| 203 | 1610508047 | 2.08 | 2.52 | |
| Ball | ||||
| 206 | 1613230003 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 207 | 1614601027 | 1.00 | 1.21 | |
| Retaining Washer | ||||
| 208 | 1610101629 | 1.00 | 1.21 | |
| Friction Washer | ||||
| 209 | 1610102089 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 211 | 160460102S | 1.00 | 1.21 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Depth-Gauge | ||||
| 688 | 1613001009 | 3.44 | 4.16 | |
| Motor Housing | ||||
| 801 | 1617000689 | 52.45 | 63.46 | |
| Armature 230V | ||||
| 803 | 16170006AT | 102.63 | 124.18 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1617000525 | 9.67 | 11.70 | |
| Socket head cap screw | ||||
| 818 | 2603410001 | 1.49 | 1.80 | |
| Intermediate Flange | ||||
| 820 | 1617000A5J | 31.42 | 38.02 | |
| No longer available, no replacement | ||||
| 821 | 1617000692 | |||
| Tool Holding Fixture | ||||
| 821/1 | 1617000693 | 110.30 | 133.46 | |
| Jack Shaft | ||||
| 824 | 1617000A5K | 64.67 | 78.25 | |
| Tool Holding Fixture | ||||
| 825 | 1617000695 | 14.94 | 18.08 | |
| Striker Pin | ||||
| 828 | 1617000697 | 43.12 | 52.18 | |
| Gear Sleeve | ||||
| 830 | 1617000698 | 31.42 | 38.02 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000699 | 27.81 | 33.65 | |
| Drill Chuck Shank | ||||
| 870 | 1613523011 | 21.30 | 25.77 | |
| Countersunk-Head Screw | ||||
| 870/2 | 2603421207 | 1.49 | 1.80 | |
| Chuck | ||||
| 871 | 1608571069 | 23.90 | 28.92 | |
| Chuck Wrench | ||||
| 872 | 2607950007 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 895 | 1615438426 | |||
