Here you will find all available parts and drawings of the 'Bosch 3611B3A0H1 ( GBH3-28DRE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

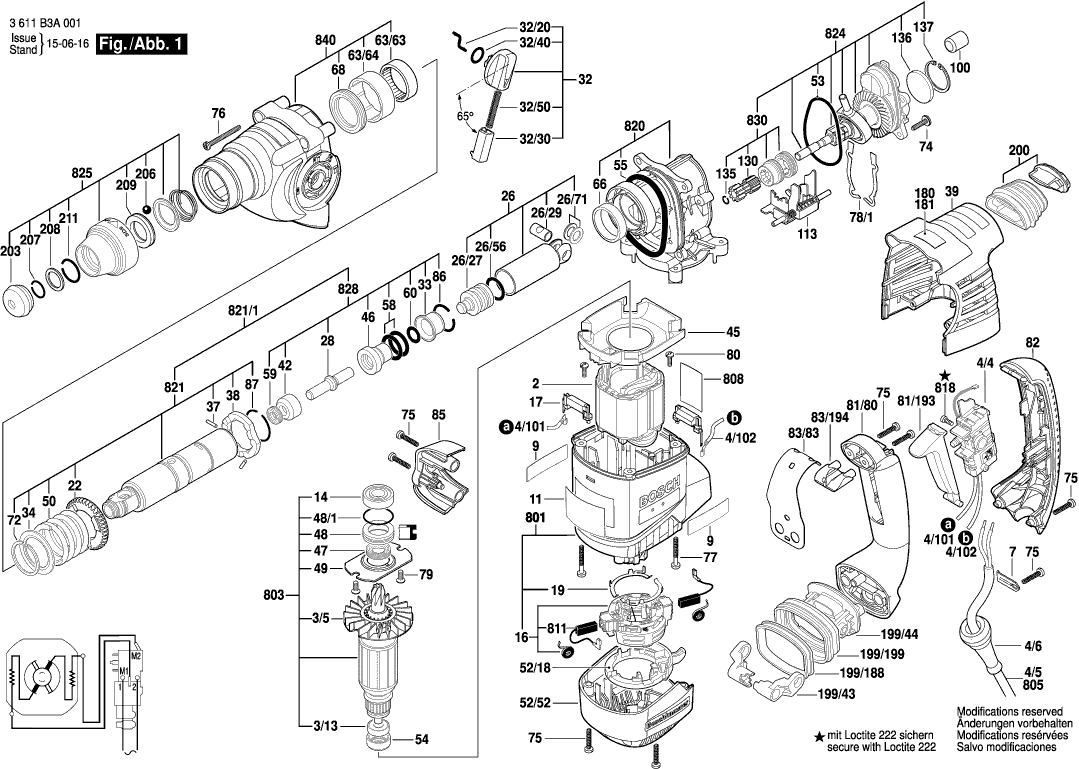

Technical drawing of model Bosch 3611B3A0H1 ( GBH3-28DRE )

Spare parts list of model Bosch 3611B3A0H1 ( GBH3-28DRE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230-240V
2 2604220549 29.75 36.00
groove ball bearing 7x19x6
3/13 1610905032 4.10 4.96
Fan
3/5 1616610104 6.54 7.91
Connecting Cable
4/101 1614490015 2.24 2.71
Connecting Cable
4/102 1614490016 2.24 2.71
Switch
4/4 1617200127 23.75 28.74
Power supply cord AR 4,15m 2 x 1,0mm H07 RN-F
4/5 1614460087 20.42 24.71
Grommet Ø7,3-Ø8,6x66 MM
4/6 1600703034 1.94 2.35
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate
9 160111C0UT 1.94 2.35
Reference Plate
11 1611110Z43 1.94 2.35
groove ball bearing
14 1610905044 6.54 7.91
Brush Plate
16 1614336064 15.71 19.01
Suppression Filter
17 1614465011 5.33 6.45
Switch Contact
19 1611329024 1.18 1.43
Cylindrical Gear
22 1616312004 9.53 11.53
Hammer Piston
26 16170006A5 33.45 40.47
Striker
26/27 1610311019 15.71 19.01
Piston Pin
26/29 1600A01TD0 3.31 4.01
O-Ring 17,0x3,0 MM GREEN
26/56 1610210121 1.94 2.35
Guide Disc
26/71 1610100016 1.18 1.43
Striker Pin
28 1613124098 15.71 19.01
Clamp Handle BLACK
32 1612026151 11.88 14.37
Driver Pin
32/20 1614690009 2.71 3.28
Switch Button RED
32/30 1612026035 1.18 1.43
O-Ring 10,5x2,7 MM
32/40 1610210046 1.70 2.06
Compression Spring
32/50 1614611006 2.71 3.28
Holding Jacket
33 1610590020 5.33 6.45
Supporting Disc
34 1610190067 1.70 2.06
Straight Pin DIN6325-2,5x12-RIKO
37 1613100019 1.18 1.43
Catch Disk
38 1600A008AG 2.71 3.28
Gear Cover BLUE
39 1615808102 10.73 12.98
Thrust Ring
42 1610102084 6.54 7.91
Air-Deflector Ring
45 1610591046 1.18 1.43
Guide Bushing
46 1610390068 12.41 15.02
Rotary shaft lip seal
47 1610283047 9.53 11.53
Bearing Ring
48 1610290102 5.33 6.45
O-Ring 24,0x2,0 MM
48/1 1610210208 1.18 1.43
End Shield
49 1615700044 1.70 2.06
Compression Spring
50 1614615008 4.70 5.69
Clutch Sleeve
52/18 1610290098 3.31 4.01
Cover BLACK
52/52 1615108154 7.58 9.17
O-Ring
53 1610210245 2.24 2.71
Intermediate Ring
54 1600502023 1.70 2.06
Seal Ring 63,0x5,0 MM
55 1610210206 4.70 5.69
O-Ring 18,0x3,5 MM
58 1610210105 3.31 4.01
Shaft Seal
59 1600A009VC 2.24 2.71
O-Ring 9,5x3,5 MM
60 1610210209 1.18 1.43
Needle bearing Ø30xØ37x12 MM
63/63 1610910063 4.70 5.69
Bushing
63/64 1610390069 1.70 2.06
Plain bearing
66 1610202021 1.94 2.35
Rotary shaft lip seal
68 1610283036 5.83 7.05
Retaining ring
72 1604601027 0.83 1.00
Torx Oval-Head Screw
74 160343000V 0.83 1.00
Torx Oval-Head Screw 4x20
75 2603490023 0.83 1.00
Torx Oval-Head Screw 4x40
76 2603490027 0.83 1.00
Thread-forming tap. Screw M4x30 DIN7500-1 T-20
77 1613490017 1.94 2.35
Shim 0,3 MM
78/1 1600A003TA 0.83 1.00
Shim 0,15 MM
78/1 1600A004FU 0.83 1.00
Shim 0,45 MM
78/1 1600A004FV 0.83 1.00
Thread-forming tap. Screw
79 1613435023 0.83 1.00
Lens Head Screw
80 1613435038 0.83 1.00
Switch-Pawl RED
81/193 1612026126 1.94 2.35
Handle BLUE
81/80 1615133033 8.45 10.22
Handle Cover BLACK
82 16170006AE 9.53 11.53
Screw Plate BLACK
83/194 1610099013 1.70 2.06
Leaf Spring
83/83 1614690008 4.10 4.96
Cover
85 1615500404 2.24 2.71
Retaining ring
86 1614601034 1.70 2.06
Retaining ring A22 DIN 7993
87 1604601028 0.83 1.00
Damping rubber
100 1610026003 1.18 1.43
Switching Panel
113 1616325002 9.53 11.53
Auxiliary Handle
120 160202508Y 18.19 22.01
Auxiliary Handle
120/120 160202507H 8.45 10.22
Clamping Band Ø50 MM
120/124 1611316021 2.24 2.71
T-Head Bolt M8x80 MM
120/125 1613490001 6.54 7.91
Support clamp
120/802 1617000685 4.10 4.96
Gear Sleeve
130 1616333049 13.93 16.86
Retaining ring
135 1614601067 1.18 1.43
Felt Disc
136 1610205017 0.83 1.00
Spring retaining ring 30x1,2MM, DIN 472
137 2916660012 1.18 1.43
Warning Plate
180 1611110W08 1.94 2.35
Grip-Spring Tensioning E
199/188 1610209008 2.71 3.28
Bellows
199/199 1610284002 4.70 5.69
Rocker Arm
199/43 1612099002 1.94 2.35
Rocker Foot BLACK
199/44 1614611025 2.24 2.71
Bellows
200 1610284007 4.70 5.69
Protective Cap
203 1610508047 1.70 2.06
Ball Ø7,3 MM
206 1613230003 1.18 1.43
Retaining ring
207 1614601027 0.83 1.00
Retaining Washer
208 1610101629 0.83 1.00
Friction Washer
209 1610102089 2.24 2.71
Retaining ring
211 160460102S 0.83 1.00
Grease Tube 30 ML
661 1615430010 5.33 6.45
Depth-Gauge SW 6x210 MM
688 1613001009 2.71 3.28
Motor Housing BLUE
801 1617000689 44.82 54.23
Armature 230V
803 16170006AT 91.56 110.79
Nameplate
808 160111A3H5 1.94 2.35
Carbon-Brush Set 220 V / 127 V
811 1617000525 8.45 10.22
Socket head cap screw M3x6,5-4.8
818 2603410001 1.18 1.43
Intermediate Flange
820 1617000A5J 26.84 32.48
Tool Holding Fixture
821 1617000692 73.72 89.20
Tool Holding Fixture
821/1 1617000693 91.56 110.79
Jack Shaft
824 1617000A5K 55.25 66.85
Tool Holding Fixture
825 1617000695 12.41 15.02
Striker Pin
828 1617000697 44.82 54.23
Gear Sleeve
830 1617000698 26.84 32.48
Impact Mechanism Housing BLACK
840 1617000699 49.56 59.97
No information available, not orderable
870 1613523011
Countersunk-Head Screw M6x27-KØ11 LEFTHAND THREAD
870/2 2603421207 1.18 1.43
Chuck Ø1,5-13 MM, 1/2"
871 1608571069 20.42 24.71
Chuck Wrench SG2
872 2607950007 5.33 6.45
No longer available, no replacement
895 1615438426
