Here you will find all available parts and drawings of the 'Bosch 0611213003 ( GBH24V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

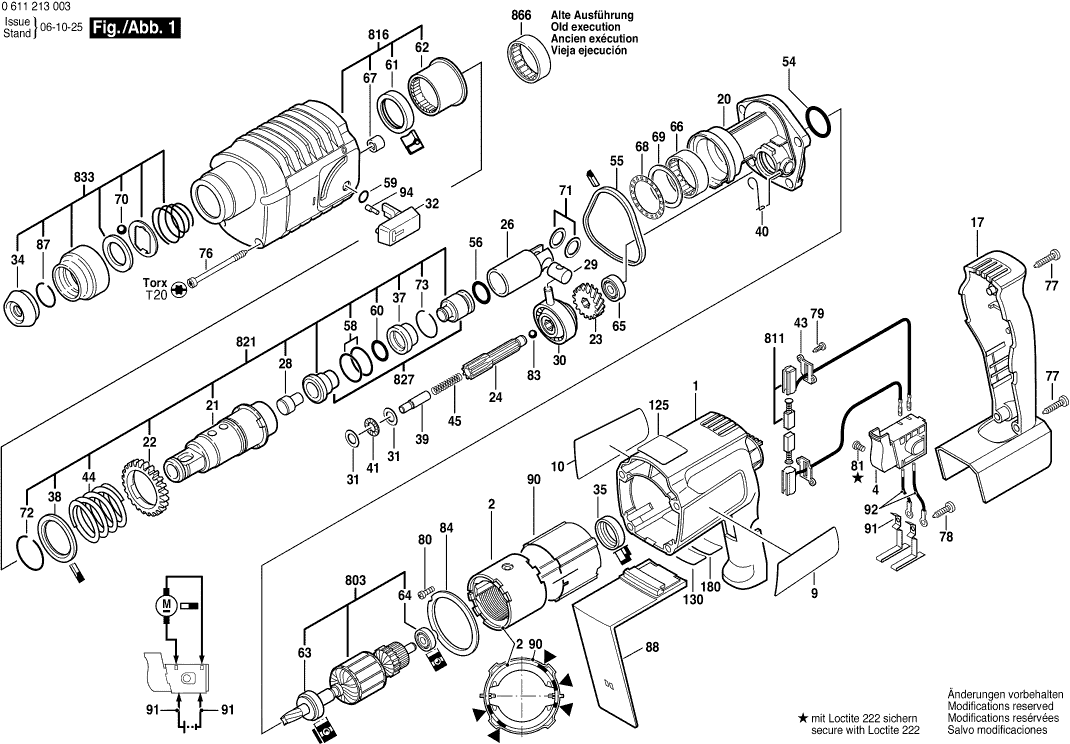

Technical drawing of model Bosch 0611213003 ( GBH24V )
Spare parts list of model Bosch 0611213003 ( GBH24V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615108046 | 18.94 | 22.92 | |
| Pole housing | ||||
| 2 | 1615100007 | 18.94 | 22.92 | |
| On-Off Switch | ||||
| 4 | 2607200134 | 10.90 | 13.19 | |
| Nameplate | ||||
| 9 | 1611110255 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 10 | 1611110730 | 4.18 | 5.06 | |
| Housing Cover | ||||
| 17 | 1615132041 | 12.82 | 15.51 | |
| Intermediate Flange | ||||
| 20 | 1615700037 | 43.12 | 52.18 | |
| Ratchet Sleeve | ||||
| 21 | 1616490058 | 244.89 | 296.32 | |
| Cylindrical Gear | ||||
| 22 | 1616320007 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 23 | 1616320002 | |||
| Toothed Shaft | ||||
| 24 | 1613060010 | 58.03 | 70.22 | |
| Hammer Piston | ||||
| 26 | 1618700052 | 12.82 | 15.51 | |
| Striker Pin | ||||
| 28 | 1613124026 | 2.86 | 3.46 | |
| Piston Pin | ||||
| 29 | 1613105012 | 3.44 | 4.16 | |
| Drive bearing | ||||
| 30 | 1615819005 | 31.42 | 38.02 | |
| Support Disc | ||||
| 31 | 1610100003 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 32 | 1612026023 | 2.40 | 2.90 | |
| Protective Cap | ||||
| 34 | 1610508008 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 35 | 1610206021 | 1.49 | 1.80 | |
| Damping Bushing | ||||
| 37 | 1610390011 | 3.44 | 4.16 | |
| Supporting Disc | ||||
| 38 | 1610102022 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 39 | 1613100013 | 2.08 | 2.52 | |
| Holding Spring | ||||
| 40 | 1614690001 | 1.00 | 1.21 | |
| Roller-Cage Assembly | ||||
| 41 | 1610920003 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 43 | 2601015047 | |||
| Compression Spring | ||||
| 44 | 1614633001 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 45 | 1614614001 | 1.00 | 1.21 | |
| O-Ring | ||||
| 54 | 1610210068 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 55 | 1610206023 | 2.86 | 3.46 | |
| O-Ring | ||||
| 56 | 1610210070 | 2.40 | 2.90 | |
| O-Ring | ||||
| 58 | 1610210058 | 2.40 | 2.90 | |
| O-Ring | ||||
| 59 | 1610210069 | 1.00 | 1.21 | |
| O-Ring | ||||
| 60 | 1610210073 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 61 | 1610283017 | 7.46 | 9.03 | |
| Plain bearing | ||||
| 62 | 1610202026 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 63 | 1610905012 | 18.94 | 22.92 | |
| Ball Bearing | ||||
| 64 | 2600905032 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 65 | 1900900228 | |||
| Needle bearing | ||||
| 66 | 1610910063 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 67 | 1610910064 | |||
| Roller-Cage Assembly | ||||
| 68 | 1610920004 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 69 | 1610102618 | |||
| Ball | ||||
| 70 | 1903230013 | 2.08 | 2.52 | |
| Shim washer | ||||
| 71 | 1610101011 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 72 | 2916540018 | 3.44 | 4.16 | |
| Retaining ring | ||||
| 73 | 1614601009 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 76 | 1613435009 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 77 | 2910211021 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 78 | 2910211217 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 79 | 2910211206 | 1.00 | 1.21 | |
| Cross Recessed-Head Screw | ||||
| 80 | 2603435015 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 81 | 2603410001 | 1.49 | 1.80 | |
| Ball | ||||
| 83 | 1903230309 | 1.49 | 1.80 | |
| Fastening Flange | ||||
| 84 | 1610120024 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 87 | 160460102S | 1.00 | 1.21 | |
| Console | ||||
| 88 | 1615719016 | 14.94 | 18.08 | |
| Sticker | ||||
| 89/12 | 2601110999 | 1.00 | 1.21 | |
| Insulating Sleeve | ||||
| 90 | 1610499010 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 91 | 1611329006 | |||
| Connecting Cable | ||||
| 92 | 1614435011 | 2.86 | 3.46 | |
| Detent Pin | ||||
| 94 | 1613120017 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 120 | 1612025019 | 6.73 | 8.14 | |
| Support clamp | ||||
| 121 | 1618040048 | 8.35 | 10.10 | |
| T-Head Bolt | ||||
| 122 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 123 | 1611316006 | 2.40 | 2.90 | |
| Sticker | ||||
| 125 | 2601110325 | 1.49 | 1.80 | |
| Sticker | ||||
| 126 | 1611110274 | 1.49 | 1.80 | |
| Drill Chuck Shank | ||||
| 700 | 1617000132 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 700/20 | 2603421226 | 1.49 | 1.80 | |
| Chuck | ||||
| 701 | 1608571088 | 27.81 | 33.65 | |
| Chuck Wrench | ||||
| 701/700 | 2607950007 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 711 | 1617000133 | |||
| Retaining ring | ||||
| 711/10/2 | 2604601004 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 712 | 1615439003 | |||
| Rubber Bushing | ||||
| 712/30 | 1610312001 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 712/651 | 1610312002 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 720 | 2602025070 | 13.13 | 15.89 | |
| Parts Set | ||||
| 720/800 | 1617000925 | 14.94 | 18.08 | |
| Carrying Case | ||||
| 750 | 1615438149 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 751 | 1613001009 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 752 | 1617224007 | |||
| No longer available, no replacement | ||||
| 789 | 1617334003 | |||
| Armature | ||||
| 803 | 1614010114 | 110.30 | 133.46 | |
| Carbon Brush | ||||
| 811 | 1617014116 | 18.94 | 22.92 | |
| Gear Housing | ||||
| 816 | 1615806077 | 47.53 | 57.51 | |
| Ratchet Sleeve | ||||
| 821 | 1617000931 | 314.42 | 380.45 | |
| Striker | ||||
| 827 | 1617000338 | 27.81 | 33.65 | |
| Protection Sleeve | ||||
| 833 | 1617000163 | 7.46 | 9.03 | |
| Needle bearing | ||||
| 866 | 1610910063 | 5.81 | 7.03 | |
| Grease Tube | ||||
| 899 | 3605430009 | 47.53 | 57.51 | |
