Here you will find all available parts and drawings of the 'Bosch 3611B5A487 (GBH2000DRE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

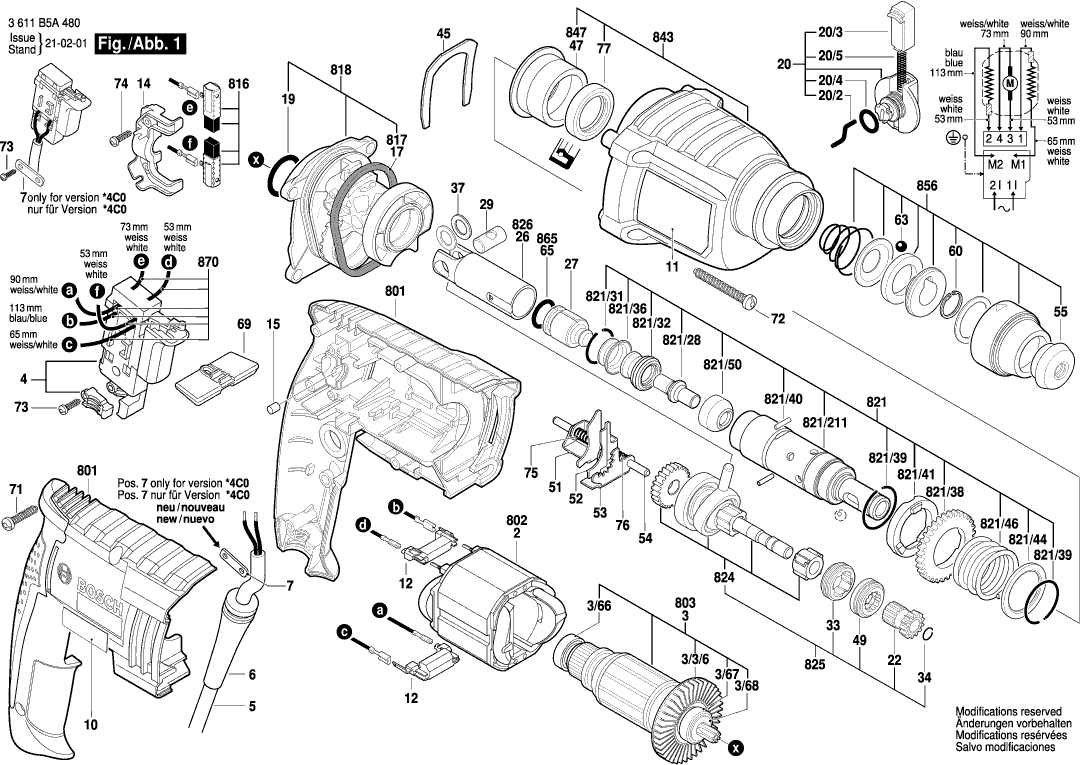

Technical drawing of model Bosch 3611B5A487 (GBH2000DRE)
Spare parts list of model Bosch 3611B5A487 (GBH2000DRE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 1619P08306 | 17.60 | 21.30 | |
| Fan | ||||
| 3/3/6 | 2606610097 | 3.44 | 4.16 | |
| Ball Bearing | ||||
| 3/66 | 1900905029 | 18.94 | 22.92 | |
| groove ball bearing | ||||
| 3/67 | 1610905047 | 7.46 | 9.03 | |
| Plain Washer | ||||
| 3/68 | 1600100037 | 1.00 | 1.21 | |
| Switch | ||||
| 4 | 1617200542 | 21.30 | 25.77 | |
| Power supply cord CN 4,15m 2 x 1,0mm H07 RN-F | ||||
| 5 | 1614460090 | 15.61 | 18.89 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1611035007 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 12 | 1617328032 | 7.46 | 9.03 | |
| Bearing Bracket | ||||
| 14 | 1615806187 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 15 | 2603100056 | 1.49 | 1.80 | |
| O-Ring | ||||
| 17 | 1610290108 | 1.49 | 1.80 | |
| O-Ring | ||||
| 19 | 1610210184 | 1.00 | 1.21 | |
| Clamp Handle | ||||
| 20 | 1612026151 | 13.13 | 15.89 | |
| Driver Pin | ||||
| 20/2 | 1614690009 | 3.44 | 4.16 | |
| Switch Button | ||||
| 20/3 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 20/4 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 20/5 | 1614611006 | 3.44 | 4.16 | |
| Gear Sleeve | ||||
| 22 | 1616328053 | 8.35 | 10.10 | |
| Hammer Piston | ||||
| 26 | 1618700083 | 9.67 | 11.70 | |
| Striker | ||||
| 27 | 1618710085 | 9.67 | 11.70 | |
| Piston Pin | ||||
| 29 | 1613100034 | 2.86 | 3.46 | |
| Switching Element | ||||
| 33 | 1615820103 | 2.40 | 2.90 | |
| Retaining ring | ||||
| 34 | 1619P00829 | 1.00 | 1.21 | |
| Guide Disc | ||||
| 37 | 1610100016 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 45 | 1611016003 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 47 | 1619P09954 | 4.58 | 5.54 | |
| Switching Element | ||||
| 49 | 1615820104 | 2.40 | 2.90 | |
| Shift Plate | ||||
| 51 | 1610021004 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 52 | 1610021006 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 53 | 1610021005 | 1.00 | 1.21 | |
| Guide Rod | ||||
| 54 | 1613023005 | 1.49 | 1.80 | |
| Protective Cap | ||||
| 55 | 1610508052 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 60 | 1614601077 | 1.49 | 1.80 | |
| Ball | ||||
| 63 | 1903230013 | 2.08 | 2.52 | |
| O-Ring | ||||
| 65 | 1619P09814 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 69 | 1613231030 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 71 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 1619P09645 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 73 | 1619P00220 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 74 | 1619P00219 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 75 | 1614643025 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 76 | 1614643023 | 1.00 | 1.21 | |
| Shaft Seal | ||||
| 77 | 1619P09722 | 2.86 | 3.46 | |
| Depth-Gauge | ||||
| 651 | 2603001009 | 4.94 | 5.98 | |
| Motor Housing | ||||
| 801 | 1619P10313 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 803 | 1619P09817 | |||
| Carbon-Brush Set | ||||
| 816 | 1619P01777 | 9.47 | 11.46 | |
| Intermediate Flange | ||||
| 818 | 1619P09616 | 23.90 | 28.92 | |
| Hammer Pipe | ||||
| 821 | 1619P09617 | 39.14 | 47.36 | |
| Hammer Pipe | ||||
| 821/211 | 1619P09815 | 31.42 | 38.02 | |
| Striker Pin | ||||
| 821/28 | 1613124084 | 4.18 | 5.06 | |
| Retaining ring | ||||
| 821/31 | 1619P09816 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 821/32 | 1610508051 | 4.18 | 5.06 | |
| Holding Plate | ||||
| 821/36 | 1610551008 | 2.18 | 2.64 | |
| Cylindrical Gear | ||||
| 821/38 | 1616317084 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 821/39 | 1614601055 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 821/40 | 1613100032 | 1.00 | 1.21 | |
| Ratchet Disc | ||||
| 821/41 | 1610102072 | 5.81 | 7.03 | |
| Friction Washer | ||||
| 821/44 | 1610102092 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 821/46 | 1614630003 | 2.08 | 2.52 | |
| Guide Bushing | ||||
| 821/50 | 1619P11562 | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 822 | 160202508X | 16.79 | 20.32 | |
| Auxiliary Handle | ||||
| 822/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 822/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 822/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 822/802 | 1617000475 | 9.67 | 11.70 | |
| Transmission Shaft | ||||
| 824 | 1619P09185 | 37.50 | 45.38 | |
| Jack Shaft | ||||
| 825 | 1607000E0P | 43.12 | 52.18 | |
| Gear Housing | ||||
| 843 | 1619P09186 | 31.42 | 38.02 | |
| Plain bearing | ||||
| 847 | 1600A0013U | 6.73 | 8.14 | |
| Protection Sleeve | ||||
| 856 | 16170006D3 | 10.90 | 13.19 | |
| O-Ring | ||||
| 865 | 1610210186 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 870 | 1619P01776 | 5.81 | 7.03 | |
| Grease Tube | ||||
| 892 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 893 | 1615430001 | 22.88 | 27.68 | |
