Here you will find all available parts and drawings of the 'Bosch 3611B67200 (GBH2-28DFV)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

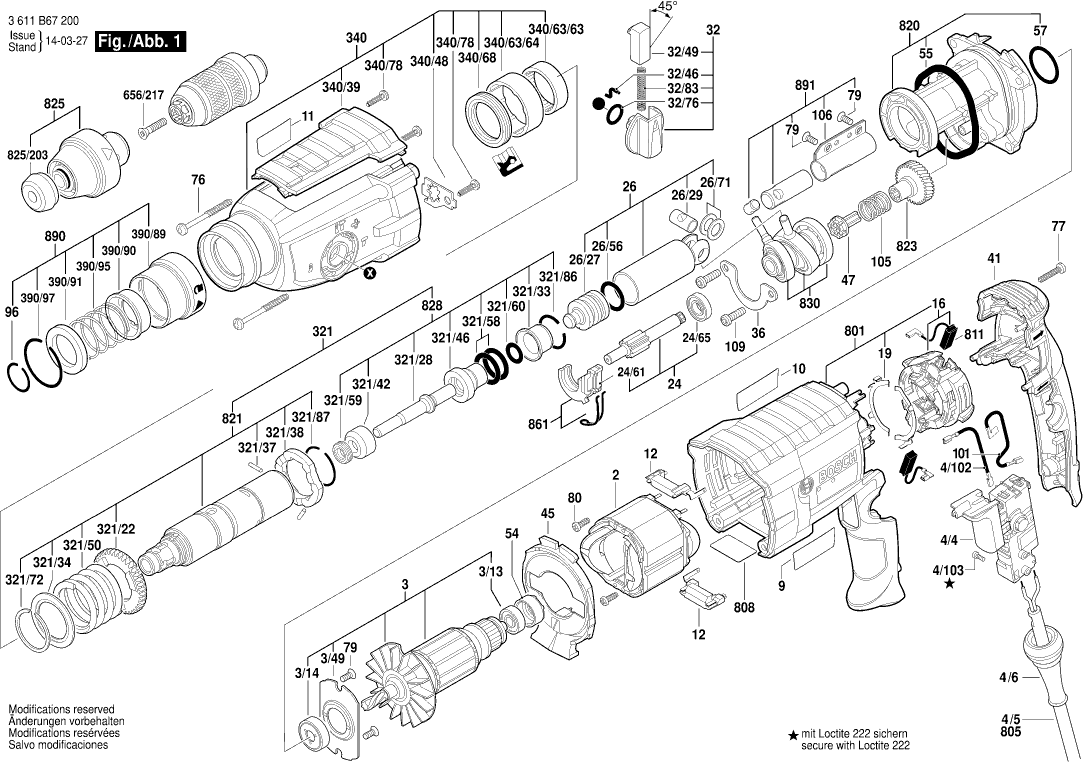

Technical drawing of model Bosch 3611B67200 (GBH2-28DFV)
Spare parts list of model Bosch 3611B67200 (GBH2-28DFV)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 1614220208 | 14.94 | 18.08 | |
| Armature 230V | ||||
| 3 | 1614010262 | 58.03 | 70.22 | |
| groove ball bearing | ||||
| 3/13 | 1610905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 3/14 | 1610905048 | 8.35 | 10.10 | |
| End Shield | ||||
| 3/49 | 1615700044 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 4/102 | 1614449015 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 4/103 | 1613435034 | 1.00 | 1.21 | |
| Switch | ||||
| 4/4 | 1617200532 | 20.39 | 24.67 | |
| Grommet | ||||
| 4/6 | 1600703034 | 2.40 | 2.90 | |
| Manufacturer's nameplate GBH 2-28 DFV | ||||
| 9 | 1611110Z96 | 2.18 | 2.64 | |
| Manufacturer's nameplate GBH 2-28 DFV | ||||
| 10 | 1611110Z97 | 2.18 | 2.64 | |
| Reference Plate | ||||
| 11 | 1611110W02 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1614465011 | 6.73 | 8.14 | |
| Brush Plate | ||||
| 16 | 1614336093 | 15.61 | 18.89 | |
| Switch Contact | ||||
| 19 | 1611329024 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 24 | 16170006EJ | 23.90 | 28.92 | |
| Switching Element | ||||
| 24/61 | 1615820097 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 24/65 | 1610905016 | 9.67 | 11.70 | |
| Hammer Piston | ||||
| 26 | 16170006A5 | 37.50 | 45.38 | |
| Striker | ||||
| 26/27 | 1610311019 | 18.94 | 22.92 | |
| Piston Pin | ||||
| 26/29 | 1613105020 | 4.94 | 5.98 | |
| Piston Pin | ||||
| 26/29 | 1600A01TD0 | 4.18 | 5.06 | |
| O-Ring | ||||
| 26/56 | 1610210121 | 2.40 | 2.90 | |
| Guide Disc | ||||
| 26/71 | 1610100016 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 32 | 1612026037 | 9.67 | 11.70 | |
| Driver Pin | ||||
| 32/46 | 1614690002 | 1.49 | 1.80 | |
| Switch Button | ||||
| 32/49 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/76 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 32/83 | 1614611006 | 3.44 | 4.16 | |
| Bearing Holder | ||||
| 36 | 1615808106 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 41 | 1615500428 | 9.67 | 11.70 | |
| Air-Deflector Ring | ||||
| 45 | 1610522015 | 2.08 | 2.52 | |
| Control Element | ||||
| 47 | 1616312010 | 5.81 | 7.03 | |
| Rubber Bushing | ||||
| 54 | 1610502016 | 1.00 | 1.21 | |
| O-Ring 59,5x5,0 MM | ||||
| 55 | 1610290104 | 3.44 | 4.16 | |
| O-Ring | ||||
| 57 | 1610210208 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 76 | 1613435022 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 76 | 160343000A | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 77 | 2603490024 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 79 | 1613435042 | |||
| Screw | ||||
| 80 | 1613435043 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 96 | 1614601046 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 101 | 1614449014 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 105 | 1614643027 | 1.49 | 1.80 | |
| Protective Sleeve | ||||
| 106 | 1610590024 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 109 | 1613435029 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 109 | 160343508E | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 120 | 160202508X | 16.79 | 20.32 | |
| Auxiliary Handle | ||||
| 120/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 120/802 | 1617000475 | 9.67 | 11.70 | |
| Toolholder | ||||
| 321 | 16170006BV | 47.53 | 57.51 | |
| Cylindrical Gear | ||||
| 321/22 | 1616312004 | 11.37 | 13.76 | |
| Striker Pin | ||||
| 321/28 | 1613124097 | 21.30 | 25.77 | |
| Holding Jacket | ||||
| 321/33 | 1610590020 | 6.73 | 8.14 | |
| Supporting Disc | ||||
| 321/34 | 1610190067 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 321/37 | 1613100019 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 321/38 | 1600A008AG | 3.44 | 4.16 | |
| Thrust Ring | ||||
| 321/42 | 1610102084 | 8.35 | 10.10 | |
| Guide Bushing | ||||
| 321/46 | 1610390068 | 14.94 | 18.08 | |
| Compression Spring | ||||
| 321/50 | 1614615008 | 5.81 | 7.03 | |
| O-Ring | ||||
| 321/58 | 1610210105 | 4.18 | 5.06 | |
| Shaft Seal | ||||
| 321/59 | 1600A009VC | 2.86 | 3.46 | |
| O-Ring | ||||
| 321/60 | 1610210209 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 321/72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 321/86 | 1614601034 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 321/87 | 1604601028 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 340 | 16170006BY | 52.45 | 63.46 | |
| Cover | ||||
| 340/39 | 16055002CF | 7.46 | 9.03 | |
| Tab Washer | ||||
| 340/48 | 1611098008 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 340/63/63 | 1610910063 | 5.81 | 7.03 | |
| Bushing | ||||
| 340/63/64 | 1610390069 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 340/68 | 1610283036 | 7.46 | 9.03 | |
| Screw | ||||
| 340/78 | 2603490022 | 1.00 | 1.21 | |
| Guide Sleeve | ||||
| 390/89 | 1610499059 | 4.18 | 5.06 | |
| Guide Sleeve | ||||
| 390/89 | 1600A00NC8 | 2.40 | 2.90 | |
| Collar Sleeve | ||||
| 390/90 | 1610590016 | 4.18 | 5.06 | |
| Backup ring | ||||
| 390/91 | 1610200033 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 390/95 | 1614643016 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 390/97 | 1614601047 | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 656/217 | 2603421229 | 1.49 | 1.80 | |
| Depth-Gauge | ||||
| 688 | 1613001009 | 3.44 | 4.16 | |
| Motor Housing | ||||
| 801 | 16170006BS | 39.14 | 47.36 | |
| Power supply cord | ||||
| 805 | 1614460026 | 16.79 | 20.32 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1607000485 | 82.63 | 99.98 | |
| Carbon-Brush Set | ||||
| 811 | 1617000525 | 9.67 | 11.70 | |
| Intermediate Flange | ||||
| 820 | 16170006BT | 39.14 | 47.36 | |
| Tool Holding Fixture | ||||
| 821 | 16170006BU | 67.98 | 82.26 | |
| Gear Sleeve | ||||
| 823 | 16170006BW | 20.39 | 24.67 | |
| Tool Holding Fixture | ||||
| 825 | 1617000895 | 43.12 | 52.18 | |
| Protective Cap | ||||
| 825/203 | 1610508047 | 2.08 | 2.52 | |
| Striker Pin | ||||
| 828 | 16170006A7 | 52.45 | 63.46 | |
| Drive bearing | ||||
| 830 | 16170006BX | 39.14 | 47.36 | |
| Switching Element | ||||
| 861 | 1615820097 | 4.94 | 5.98 | |
| Guide Sleeve | ||||
| 890 | 1617000V41 | 10.90 | 13.19 | |
| Weight | ||||
| 891 | 16170006BZ | 6.73 | 8.14 | |
| Lock | ||||
| 895 | 1615438409 | 6.73 | 8.14 | |
| Grease Tube | ||||
| 896 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 897 | 1615430002 | 47.53 | 57.51 | |
