Here you will find all available parts and drawings of the 'Bosch 0611253703 ( GBH2-26DRE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

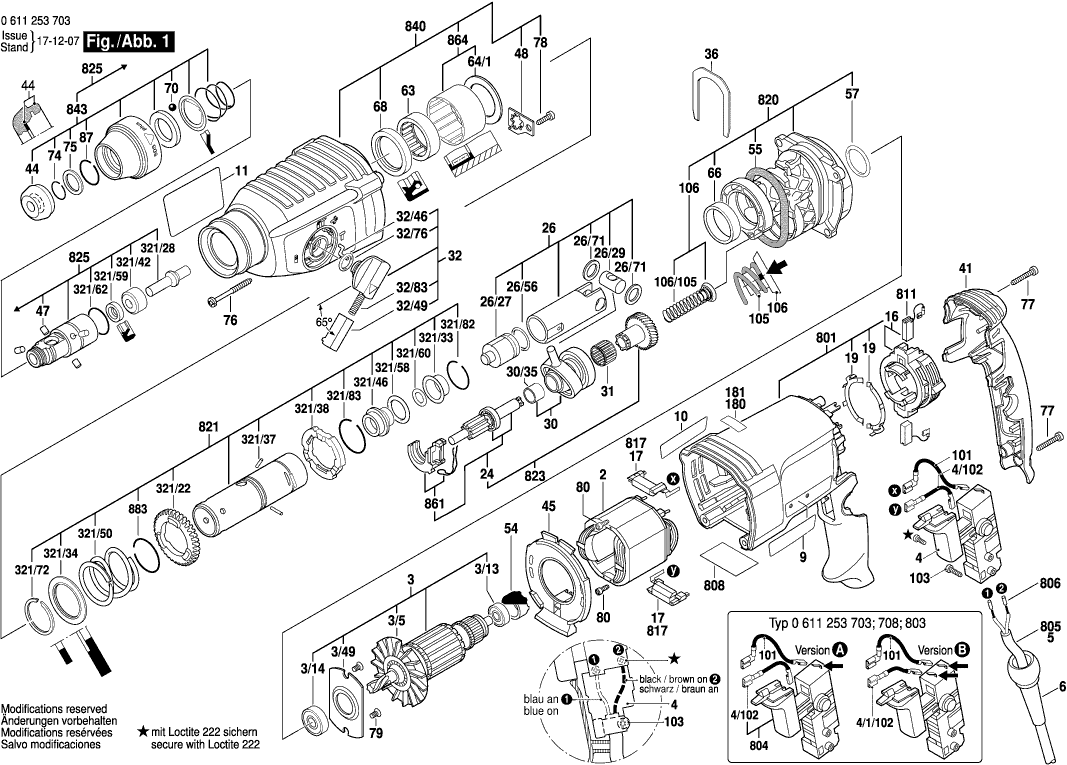

Technical drawing of model Bosch 0611253703 ( GBH2-26DRE )
Spare parts list of model Bosch 0611253703 ( GBH2-26DRE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1614220117 | 14.94 | 18.08 | |
| Armature | ||||
| 3 | 1614010709 | 43.12 | 52.18 | |
| groove ball bearing | ||||
| 3/13 | 1610905025 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 3/14 | 1610905048 | 8.35 | 10.10 | |
| End Shield | ||||
| 3/49 | 1615700044 | 2.08 | 2.52 | |
| Fan | ||||
| 3/5 | 1616610094 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 4/1/102 | 1614449021 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 4/102 | 1614449015 | 1.49 | 1.80 | |
| Grommet | ||||
| 6 | 1600703034 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110Z33 | 2.18 | 2.64 | |
| Manufacturer's nameplate | ||||
| 10 | 1611110Z34 | 2.18 | 2.64 | |
| Reference Plate | ||||
| 11 | 1611110X17 | 3.44 | 4.16 | |
| Brush Plate | ||||
| 16 | 1614336061 | 16.79 | 20.32 | |
| Suppression Filter | ||||
| 17 | 1614465011 | 6.73 | 8.14 | |
| Switch Contact | ||||
| 19 | 1611329024 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 24 | 1617000556 | 41.30 | 49.97 | |
| Toothed Shaft | ||||
| 24 | 16170006EJ | 23.90 | 28.92 | |
| Hammer Piston | ||||
| 26 | 1617000557 | 22.88 | 27.68 | |
| Hammer Piston | ||||
| 26 | 1600A01U34 | 18.94 | 22.92 | |
| Striker | ||||
| 26/27 | 1610311018 | 16.79 | 20.32 | |
| Piston Pin | ||||
| 26/29 | 1613105012 | 3.44 | 4.16 | |
| O-Ring | ||||
| 26/56 | 1610210187 | 2.08 | 2.52 | |
| Shim washer | ||||
| 26/71 | 1610101011 | 1.49 | 1.80 | |
| Drive bearing | ||||
| 30 | 1615819028 | 22.88 | 27.68 | |
| Drive bearing | ||||
| 30 | 1600A01U33 | 18.94 | 22.92 | |
| Plain bearing | ||||
| 30/35 | 1610202024 | 4.94 | 5.98 | |
| Needle-Roller Assembly | ||||
| 31 | 1610913016 | 3.44 | 4.16 | |
| Clamp Handle | ||||
| 32 | 1612026037 | 9.67 | 11.70 | |
| Driver Pin | ||||
| 32/46 | 1614690002 | 1.49 | 1.80 | |
| Switch Button | ||||
| 32/49 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/76 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 32/83 | 1614611006 | 3.44 | 4.16 | |
| Holding Plate | ||||
| 36 | 1611016003 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 41 | 1615500343 | 8.35 | 10.10 | |
| Protective Cap | ||||
| 44 | 1610508047 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 45 | 1610522013 | 2.08 | 2.52 | |
| Needle Roller | ||||
| 47 | 1613100030 | 2.86 | 3.46 | |
| Tab Washer | ||||
| 48 | 1611098008 | 2.08 | 2.52 | |
| Rubber Bushing | ||||
| 54 | 1610502016 | 1.00 | 1.21 | |
| Seal Ring | ||||
| 55 | 1610290226 | 3.44 | 4.16 | |
| O-Ring | ||||
| 57 | 1610210068 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 63 | 1610910063 | 5.81 | 7.03 | |
| Supporting Disc | ||||
| 64/1 | 1610190060 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 66 | 1610202021 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 68 | 1610283036 | 7.46 | 9.03 | |
| Ball | ||||
| 70 | 1903230013 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 74 | 1614601027 | 1.00 | 1.21 | |
| Retaining Washer | ||||
| 75 | 1610101629 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 76 | 160343000A | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 77 | 2603490024 | 1.49 | 1.80 | |
| Screw | ||||
| 78 | 2603490022 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 79 | 1613435023 | 1.00 | 1.21 | |
| Screw | ||||
| 80 | 1613435043 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 87 | 160460102S | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 101 | 1614449014 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 102 | 1614449015 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 103 | 2603490017 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 106 | 1614611022 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 106/105 | 1614611021 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 321/22 | 1616312004 | 11.37 | 13.76 | |
| Striker Pin | ||||
| 321/28 | 1613124081 | 9.67 | 11.70 | |
| Holding Jacket | ||||
| 321/33 | 1610590014 | 2.08 | 2.52 | |
| Supporting Disc | ||||
| 321/34 | 1619PS6014 | 4.18 | 5.06 | |
| Supporting Disc | ||||
| 321/34 | 1610190067 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 321/37 | 1613100019 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 321/38 | 1600A008AG | 3.44 | 4.16 | |
| Thrust Ring | ||||
| 321/42 | 1610102073 | 4.94 | 5.98 | |
| Guide Bushing | ||||
| 321/46 | 1610390051 | 6.73 | 8.14 | |
| Compression Spring | ||||
| 321/50 | 1614611020 | 2.86 | 3.46 | |
| O-Ring | ||||
| 321/58 | 1610210178 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 321/59 | 1610283035 | 5.81 | 7.03 | |
| O-Ring | ||||
| 321/60 | 1610210176 | 1.00 | 1.21 | |
| O-Ring | ||||
| 321/62 | 1610210179 | 2.40 | 2.90 | |
| Retaining ring | ||||
| 321/72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 321/82 | 1614601034 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 321/83 | 1604601028 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 651 | 1613001009 | 3.44 | 4.16 | |
| Lock | ||||
| 691/895 | 1615438409 | 6.73 | 8.14 | |
| Lock | ||||
| 691/895 | 1615438431 | 6.73 | 8.14 | |
| Motor Housing | ||||
| 801 | 1617000558 | 26.62 | 32.21 | |
| On-Off Switch | ||||
| 804 | 16170006D4 | 17.60 | 21.30 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| End Splice | ||||
| 806 | 1900452012 | 1.49 | 1.80 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1607000485 | 82.63 | 99.98 | |
| Carbon-Brush Set | ||||
| 811 | 1617000525 | 9.67 | 11.70 | |
| Intermediate Flange | ||||
| 820 | 16170006DX | 26.62 | 32.21 | |
| Pipe | ||||
| 821 | 1617000564 | 67.98 | 82.26 | |
| Auxiliary Handle | ||||
| 822 | 160202508X | 16.79 | 20.32 | |
| Auxiliary Handle | ||||
| 822/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 822/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 822/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 822/802 | 1617000475 | 9.67 | 11.70 | |
| Toothed Shaft | ||||
| 823 | 1617000579 | 33.33 | 40.33 | |
| Tool Holding Fixture | ||||
| 825 | 1617000598 | 55.56 | 67.23 | |
| Gear Housing | ||||
| 840 | 1617000581 | 39.14 | 47.36 | |
| Protection Sleeve | ||||
| 843 | 1617000582 | 10.90 | 13.19 | |
| Switching Element | ||||
| 861 | 1615820097 | 4.94 | 5.98 | |
| Supporting Disc | ||||
| 864 | 1617000A07 | 10.90 | 13.19 | |
| Drill Chuck Shank | ||||
| 870 | 1613523011 | 21.30 | 25.77 | |
| Countersunk-Head Screw | ||||
| 870/2 | 2603421207 | 1.49 | 1.80 | |
| Chuck | ||||
| 871 | 1608571088 | 27.81 | 33.65 | |
| Chuck Wrench | ||||
| 872 | 2607950007 | 6.73 | 8.14 | |
| Retaining ring | ||||
| 883 | 1604601028 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 892 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 893 | 1615430002 | 47.53 | 57.51 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
| Grease Tube | ||||
| 896 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 897 | 1615430002 | 47.53 | 57.51 | |
