Here you will find all available parts and drawings of the 'Bosch 0611238708 (GBH2-24DFR)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

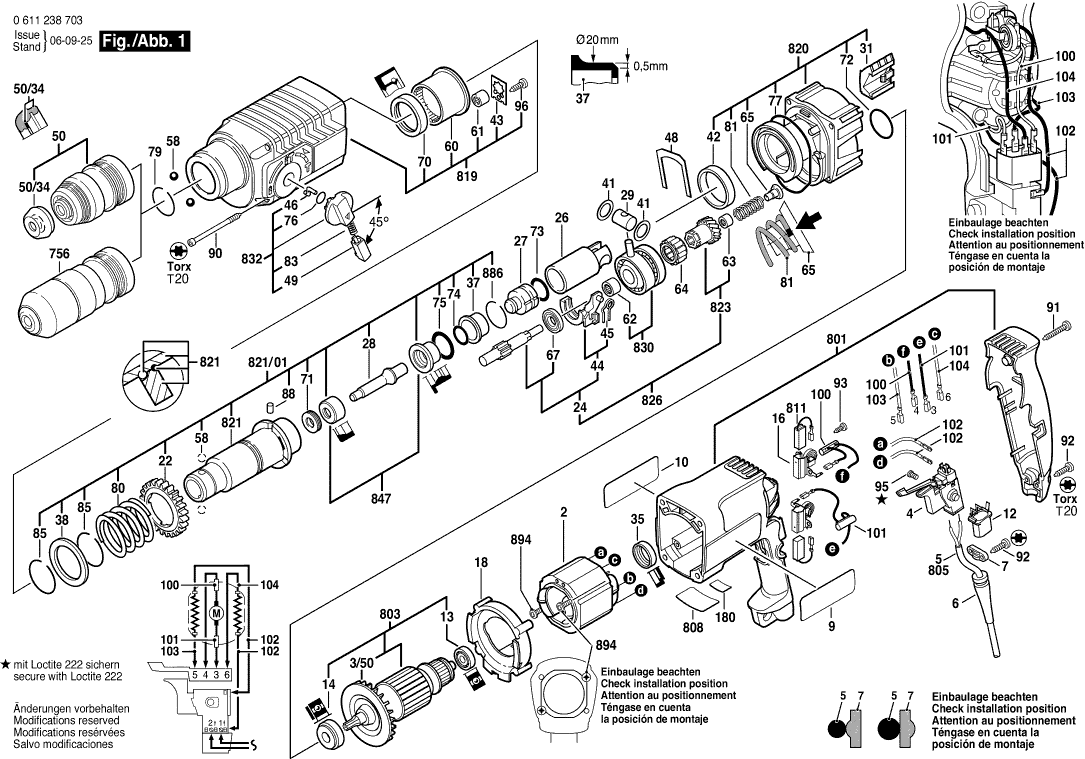

Technical drawing of model Bosch 0611238708 (GBH2-24DFR)
Spare parts list of model Bosch 0611238708 (GBH2-24DFR)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1614220172 | 21.30 | 25.77 | |
| Fan | ||||
| 3/50 | 1616610095 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 1617200077 | 34.82 | 42.13 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1611035005 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110852 | 3.71 | 4.49 | |
| Manufacturer's nameplate | ||||
| 10 | 1611110853 | 2.52 | 3.05 | |
| No longer available, no replacement | ||||
| 12 | 1617328026 | |||
| groove ball bearing | ||||
| 13 | 1610905025 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 1610905048 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 1617000343 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 18 | 1610522009 | |||
| Cylindrical Gear | ||||
| 22 | 1616317602 | 11.37 | 13.76 | |
| Toothed Shaft | ||||
| 24 | 1617000518 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 26 | 1618700062 | |||
| Striker | ||||
| 27 | 1618710057 | 14.94 | 18.08 | |
| Striker Pin | ||||
| 28 | 1613124052 | 9.47 | 11.46 | |
| Piston Pin | ||||
| 29 | 1613105012 | 3.44 | 4.16 | |
| Protective Grille | ||||
| 31 | 1615510003 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 35 | 1610206021 | 1.49 | 1.80 | |
| Damping Bushing | ||||
| 37 | 1610390017 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 38 | 1610102026 | |||
| Shim washer | ||||
| 41 | 1610101011 | 1.49 | 1.80 | |
| Plain bearing | ||||
| 42 | 1610202015 | 2.86 | 3.46 | |
| Tab Washer | ||||
| 43 | 1611098005 | 2.86 | 3.46 | |
| Switching Element | ||||
| 44 | 1615820092 | 2.40 | 2.90 | |
| Switch Spring | ||||
| 45 | 1614651014 | 1.49 | 1.80 | |
| Driver Pin | ||||
| 46 | 1614690002 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 48 | 1611016003 | 2.08 | 2.52 | |
| Switch Button | ||||
| 49 | 1612026035 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 1617000327 | |||
| Protective Cap | ||||
| 50/34 | 1610508047 | 2.08 | 2.52 | |
| Ball | ||||
| 58 | 1903230010 | 1.00 | 1.21 | |
| Needle-Roller Bearing | ||||
| 60 | 1610910073 | 10.90 | 13.19 | |
| Needle bearing | ||||
| 61 | 1610910098 | 3.44 | 4.16 | |
| Needle bearing | ||||
| 62 | 1610910074 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 63 | 1610910064 | |||
| Needle-Roller Assembly | ||||
| 64 | 1610913010 | 4.18 | 5.06 | |
| Plain bearing | ||||
| 65 | 1610591016 | 2.86 | 3.46 | |
| groove ball bearing | ||||
| 67 | 1610905016 | 9.67 | 11.70 | |
| Shaft Seal | ||||
| 70 | 1610283019 | 7.46 | 9.03 | |
| Scraper | ||||
| 71 | 1610290029 | 3.44 | 4.16 | |
| O-Ring | ||||
| 72 | 1610210068 | 1.49 | 1.80 | |
| O-Ring | ||||
| 73 | 1610210187 | 2.08 | 2.52 | |
| O-Ring | ||||
| 74 | 1610210104 | 2.40 | 2.90 | |
| O-Ring | ||||
| 75 | 1610210105 | 4.18 | 5.06 | |
| O-Ring | ||||
| 76 | 1610210046 | 2.08 | 2.52 | |
| O-Ring | ||||
| 77 | 1610210106 | 2.40 | 2.90 | |
| Retaining ring | ||||
| 79 | 1614601026 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 80 | 1614634005 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 81 | 1614611009 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 83 | 1614611006 | 3.44 | 4.16 | |
| Retaining ring | ||||
| 85 | 1614601011 | 1.49 | 1.80 | |
| Roller | ||||
| 88 | 1613200007 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 90 | 1603435036 | 1.80 | 2.18 | |
| Lens Head Screw | ||||
| 91 | 2603490026 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 92 | 2603490023 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 93 | 2910211005 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 95 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 96 | 2912401018 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 100 | 2604465086 | 5.81 | 7.03 | |
| Suppression Filter | ||||
| 101 | 2604465097 | 5.81 | 7.03 | |
| Cable | ||||
| 102 | 2604448005 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 103 | 1614448017 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 104 | 2604448137 | |||
| No information available, not orderable | ||||
| 756 | 1617000328 | |||
| Motor Housing | ||||
| 801 | 1617000477 | 16.79 | 20.32 | |
| Armature With Fan | ||||
| 803 | 1614010227 | 71.68 | 86.73 | |
| Power supply cord | ||||
| 805 | 1614460026 | 16.79 | 20.32 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 811 | 1617014134 | 8.35 | 10.10 | |
| Gear Housing | ||||
| 819 | 1615806093 | 52.45 | 63.46 | |
| Intermediate Flange | ||||
| 820 | 1617000981 | 27.81 | 33.65 | |
| Tool Holding Fixture | ||||
| 821 | 1617000325 | 41.30 | 49.97 | |
| Tool Holding Fixture | ||||
| 821/01 | 1617000326 | 65.16 | 78.84 | |
| Auxiliary Handle | ||||
| 822 | 2602025118 | 13.13 | 15.89 | |
| Auxiliary Handle | ||||
| 822/120 | 1612025019 | 6.73 | 8.14 | |
| Clamping Band | ||||
| 822/124 | 1611316006 | 2.40 | 2.90 | |
| T-Head Bolt | ||||
| 822/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 822/802 | 2608040176 | 6.73 | 8.14 | |
| Gear Sleeve | ||||
| 823 | 1616328042 | 43.12 | 52.18 | |
| Toothed Shaft | ||||
| 826 | 1617000517 | 88.83 | 107.48 | |
| Drive bearing | ||||
| 830 | 1615819018 | 64.67 | 78.25 | |
| Clamp Handle | ||||
| 832 | 1612026037 | 9.67 | 11.70 | |
| Guide Ring | ||||
| 847 | 1617000348 | 13.13 | 15.89 | |
| Depth-Gauge | ||||
| 879 | 1613001009 | 3.44 | 4.16 | |
| Retaining ring | ||||
| 886 | 1614601024 | 1.49 | 1.80 | |
| Cross Recessed-Head Screw | ||||
| 894 | 2603435015 | 2.08 | 2.52 | |
