Here you will find all available parts and drawings of the 'Bosch 3611BA6000 (GBH2-21)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

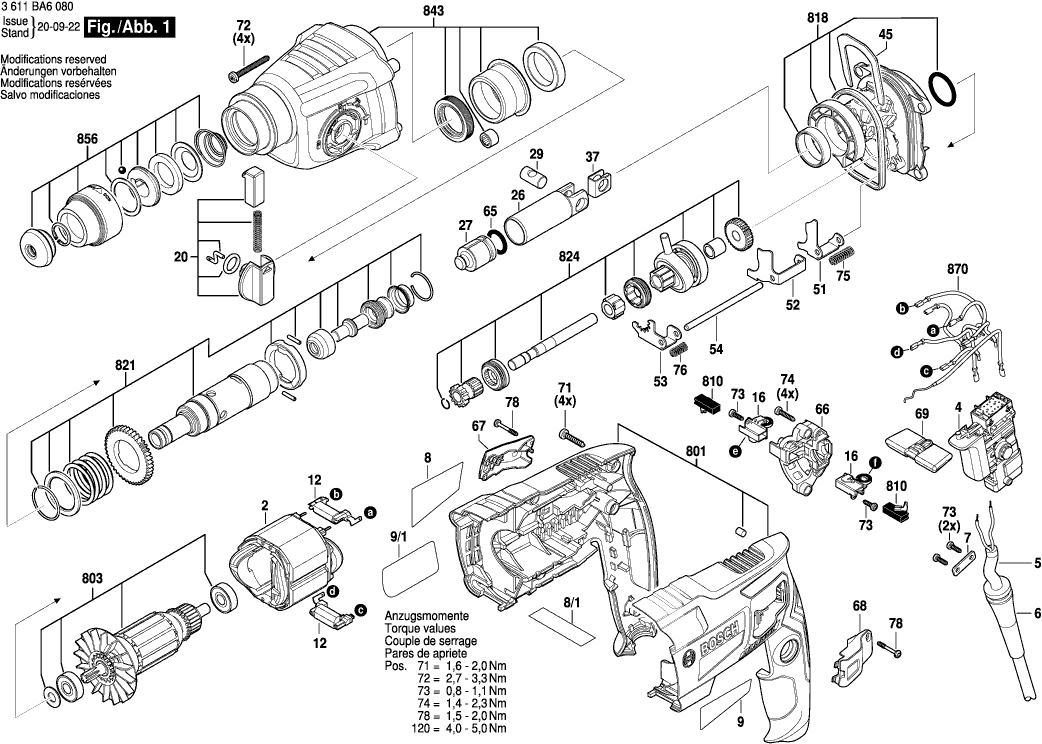

Technical drawing of model Bosch 3611BA6000 (GBH2-21)
Spare parts list of model Bosch 3611BA6000 (GBH2-21)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| POOLSCHOEN | ||||
| 2 | 1619P21223 | 17.60 | 21.30 | |
| Field | ||||
| 2 | 1619PS1129 | 14.94 | 18.08 | |
| Switch | ||||
| 4 | 1607200372 | 14.94 | 18.08 | |
| Power supply cord | ||||
| 5 | 1614460026 | 16.79 | 20.32 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1611035007 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619P16262 | 2.40 | 2.90 | |
| Nameplate | ||||
| 8/1 | 1619P16263 | 2.40 | 2.90 | |
| Manufacturer's nameplate GBH 2-21 | ||||
| 9 | 1619P16261 | 2.40 | 2.90 | |
| Reference Plate GBH 2-21 | ||||
| 9/1 | 1619P16275 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1617328032 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 16 | 1619P20535 | 1.49 | 1.80 | |
| O-Ring | ||||
| 17 | 1610290108 | 1.49 | 1.80 | |
| O-Ring | ||||
| 19 | 1610210184 | 1.00 | 1.21 | |
| Clamp Handle | ||||
| 20 | 1612026151 | 13.13 | 15.89 | |
| No information available, not orderable | ||||
| 21 | 1619PS4727 | |||
| Gear Sleeve | ||||
| 22 | 1619PS1115 | 2.40 | 2.90 | |
| Hammer Piston | ||||
| 26 | 1619P20540 | 8.35 | 10.10 | |
| Striker | ||||
| 27 | 1619P20541 | 4.94 | 5.98 | |
| Striker Pin | ||||
| 28 | 1613124084 | 4.18 | 5.06 | |
| Piston Pin | ||||
| 29 | 1613100034 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 31 | 1619P09816 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 32 | 1610508051 | 4.18 | 5.06 | |
| Holding Plate | ||||
| 36 | 1610551008 | 2.18 | 2.64 | |
| Guide Disc | ||||
| 37 | 1610100016 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 38 | 1616317084 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 39 | 1614601055 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 40 | 1613100032 | 1.00 | 1.21 | |
| Ratchet Disc | ||||
| 41 | 1610102072 | 5.81 | 7.03 | |
| Friction Washer | ||||
| 44 | 1610102092 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 45 | 1611016003 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 46 | 1619PS4729 | |||
| Guide Bushing | ||||
| 50 | 1619P11562 | 9.67 | 11.70 | |
| Shift Plate | ||||
| 51 | 1610021004 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 52 | 1610021006 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 53 | 1610021005 | 1.00 | 1.21 | |
| Guide Rod | ||||
| 54 | 1613023005 | 1.49 | 1.80 | |
| O-Ring | ||||
| 65 | 1610210070 | 2.40 | 2.90 | |
| Bracket | ||||
| 66 | 1619P20537 | 1.00 | 1.21 | |
| Insulating Cap | ||||
| 67 | 1619P20547 | 1.00 | 1.21 | |
| Insulating Cap | ||||
| 68 | 1619P20548 | 1.00 | 1.21 | |
| Change-Over Switch | ||||
| 69 | 1619P20702 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 71 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 1619P09645 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 73 | 1619P00220 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 74 | 1619P00219 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 75 | 1614643025 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 76 | 1614643023 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 78 | 1619P20563 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 651 | 2603001009 | 4.94 | 5.98 | |
| Lock | ||||
| 691 | 1615438409 | 6.73 | 8.14 | |
| Lock | ||||
| 691 | 1615438431 | 6.73 | 8.14 | |
| Drill Chuck Shank | ||||
| 700 | 1617000154 | 31.42 | 38.02 | |
| Countersunk-Head Screw | ||||
| 700/1 | 2603421207 | 1.49 | 1.80 | |
| Chuck | ||||
| 701 | 1608571088 | 27.81 | 33.65 | |
| Chuck Wrench | ||||
| 701/1 | 2607950007 | 6.73 | 8.14 | |
| Motor Housing | ||||
| 801 | 1619P16274 | 18.94 | 22.92 | |
| Armature | ||||
| 803 | 1619P16276 | 27.81 | 33.65 | |
| Carbon-Brush Set | ||||
| 810 | 1617000525 | 9.67 | 11.70 | |
| Intermediate Flange | ||||
| 818 | 1619P16278 | 18.94 | 22.92 | |
| Hammer Pipe | ||||
| 821 | 1619P16280 | 64.67 | 78.25 | |
| Auxiliary Handle | ||||
| 822 | 160202508X | 16.79 | 20.32 | |
| Auxiliary Handle | ||||
| 822/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 822/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 822/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 822/802 | 1617000475 | 9.67 | 11.70 | |
| Jack Shaft | ||||
| 824 | 1619P16282 | 39.14 | 47.36 | |
| Gear Housing | ||||
| 843 | 1619P16284 | 23.90 | 28.92 | |
| Protection Sleeve | ||||
| 856 | 16170006D3 | 10.90 | 13.19 | |
| Connecting Cable | ||||
| 870 | 1619P16327 | 8.35 | 10.10 | |
| Grease Tube | ||||
| 892 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 893 | 1615430002 | 47.53 | 57.51 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
