Here you will find all available parts and drawings of the 'Bosch 3611B5A401 (GBH2-20D)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

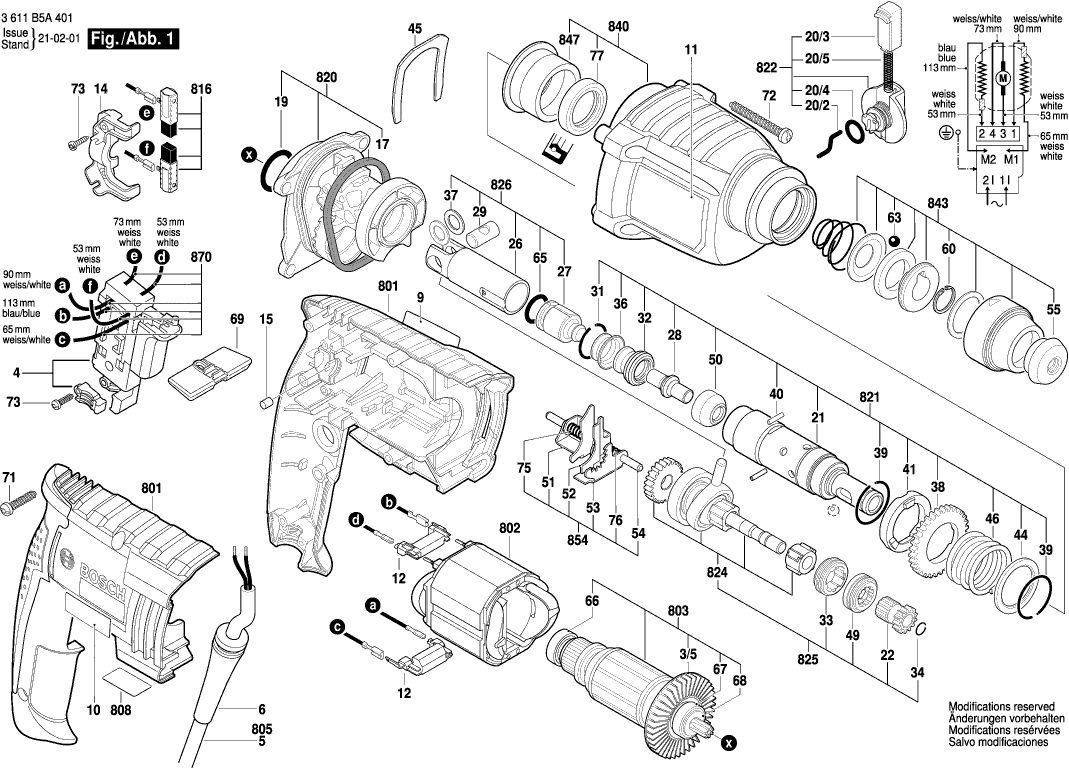

Technical drawing of model Bosch 3611B5A401 (GBH2-20D)
Spare parts list of model Bosch 3611B5A401 (GBH2-20D)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fan | ||||
| 3/5 | 1616610113 | 2.86 | 3.46 | |
| Switch | ||||
| 4 | 1617200542 | 21.30 | 25.77 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Manufacturer's nameplate GBH 2-20 D | ||||
| 9 | 1618B0002G | 1.70 | 2.06 | |
| No information available, not orderable | ||||
| 10 | 1618B0002H | |||
| Reference Plate | ||||
| 11 | 1618B00401 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1617328032 | 7.46 | 9.03 | |
| Bearing Bracket | ||||
| 14 | 1615806187 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 15 | 2603100056 | 1.49 | 1.80 | |
| O-Ring | ||||
| 17 | 1610290108 | 1.49 | 1.80 | |
| O-Ring | ||||
| 19 | 1610210184 | 1.00 | 1.21 | |
| Driver Pin | ||||
| 20/2 | 1614690009 | 3.44 | 4.16 | |
| Switch Button | ||||
| 20/3 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 20/4 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 20/5 | 1614611006 | 3.44 | 4.16 | |
| Hammer Pipe | ||||
| 21 | 1619P09815 | 31.42 | 38.02 | |
| Gear Sleeve | ||||
| 22 | 1616328053 | 8.35 | 10.10 | |
| Hammer Piston | ||||
| 26 | 1618700083 | 9.67 | 11.70 | |
| Striker | ||||
| 27 | 1618710085 | 9.67 | 11.70 | |
| Striker Pin | ||||
| 28 | 1613124084 | 4.18 | 5.06 | |
| Piston Pin | ||||
| 29 | 1613100034 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 31 | 1614601053 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 32 | 1610508051 | 4.18 | 5.06 | |
| Switching Element | ||||
| 33 | 1615820103 | 2.40 | 2.90 | |
| Retaining ring | ||||
| 34 | 1619P00829 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 36 | 1610551008 | 2.18 | 2.64 | |
| Guide Disc | ||||
| 37 | 1610100016 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 38 | 1616317084 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 39 | 1614601055 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 40 | 1613100019 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 40 | 1613100032 | 1.00 | 1.21 | |
| Ratchet Disc | ||||
| 41 | 1610102072 | 5.81 | 7.03 | |
| Friction Washer | ||||
| 44 | 1610102092 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 45 | 1611016003 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 46 | 1614630003 | 2.08 | 2.52 | |
| Switching Element | ||||
| 49 | 1615820104 | 2.40 | 2.90 | |
| Guide Bushing | ||||
| 50 | 1619P11562 | 9.67 | 11.70 | |
| Thrust Ring | ||||
| 50 | 1600A00FL3 | 2.86 | 3.46 | |
| Shift Plate | ||||
| 51 | 1610021004 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 52 | 1610021006 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 53 | 1610021005 | 1.00 | 1.21 | |
| Guide Rod | ||||
| 54 | 1613023005 | 1.49 | 1.80 | |
| Protective Cap | ||||
| 55 | 1610508052 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 60 | 1614601077 | 1.49 | 1.80 | |
| Ball | ||||
| 63 | 1903230013 | 2.08 | 2.52 | |
| O-Ring | ||||
| 65 | 1610210186 | 2.08 | 2.52 | |
| Ball Bearing | ||||
| 66 | 2609110491 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 67 | 1610905047 | 7.46 | 9.03 | |
| Plain Washer | ||||
| 68 | 1600100037 | 1.00 | 1.21 | |
| Change-Over Switch | ||||
| 69 | 1613231030 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 71 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 1613435039 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 73 | 1613435034 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 75 | 1614643025 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 76 | 1614643023 | 1.00 | 1.21 | |
| Shaft Seal | ||||
| 77 | 1619P09722 | 2.86 | 3.46 | |
| Auxiliary Handle | ||||
| 120 | 1618B00500 | 12.82 | 15.51 | |
| Auxiliary Handle | ||||
| 120/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 120/802 | 1617000475 | 9.67 | 11.70 | |
| Depth-Gauge | ||||
| 651 | 2603001009 | 4.94 | 5.98 | |
| Motor Housing | ||||
| 801 | 16170006B8 | 27.81 | 33.65 | |
| Field | ||||
| 802 | 1614220219 | 18.94 | 22.92 | |
| Armature | ||||
| 803 | 1614010711 | 43.12 | 52.18 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A3H6 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 816 | 1619P01777 | 9.47 | 11.46 | |
| Intermediate Flange | ||||
| 820 | 16170006BB | 21.30 | 25.77 | |
| Hammer Pipe | ||||
| 821 | 1600A0013V | 88.83 | 107.48 | |
| Clamp Handle | ||||
| 822 | 1612026151 | 13.13 | 15.89 | |
| Jack Shaft | ||||
| 824 | 16170006BC | 31.42 | 38.02 | |
| Jack Shaft | ||||
| 825 | 1607000E0P | 43.12 | 52.18 | |
| Hammer Piston | ||||
| 826 | 1600A0013X | 23.90 | 28.92 | |
| Gear Housing | ||||
| 840 | 16170006BF | 27.81 | 33.65 | |
| Protection Sleeve | ||||
| 843 | 16170006D3 | 10.90 | 13.19 | |
| Plain bearing | ||||
| 847 | 1600A0013U | 6.73 | 8.14 | |
| Guide Rod | ||||
| 854 | 1600A0013W | 8.35 | 10.10 | |
| Connecting Cable | ||||
| 870 | 1619P01776 | 5.81 | 7.03 | |
| Grease Tube | ||||
| 890 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 891 | 1615430001 | 22.88 | 27.68 | |
