Here you will find all available parts and drawings of the 'Bosch 3611J13080 ( GBH18V-45C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

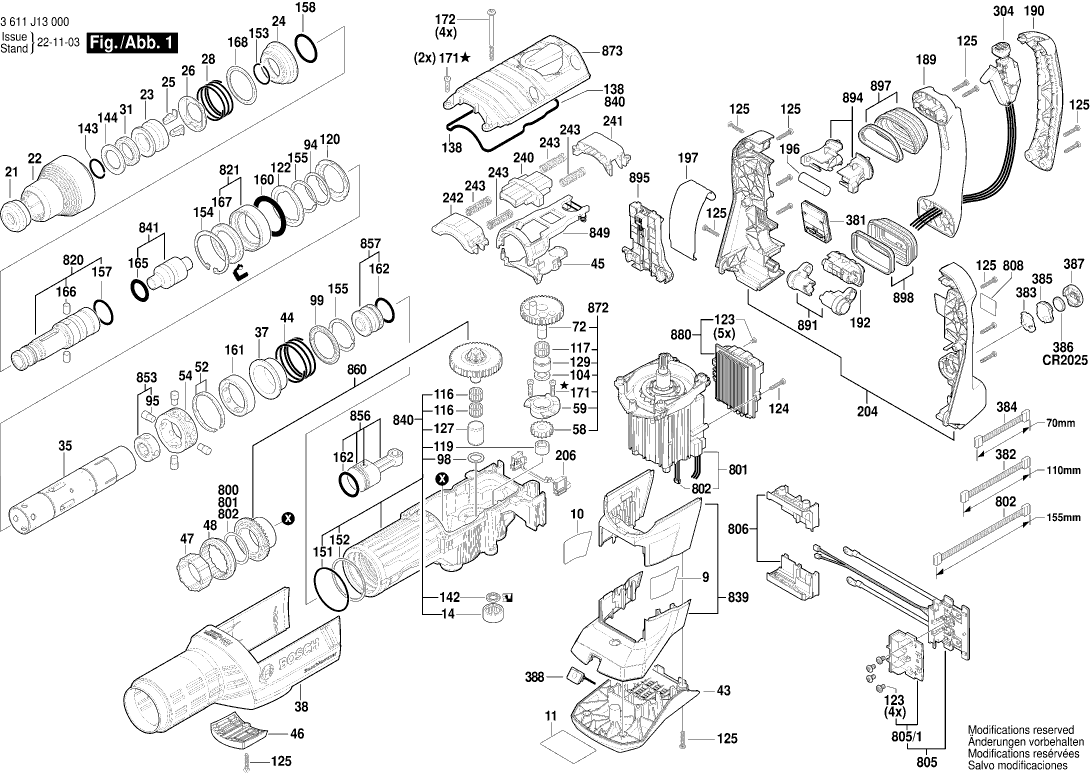

Technical drawing of model Bosch 3611J13080 ( GBH18V-45C )
Spare parts list of model Bosch 3611J13080 ( GBH18V-45C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Manufacturer's nameplate | ||||
| 9 | 160111C375 | 1.94 | 2.35 | |
| Manufacturer's nameplate | ||||
| 10 | 160111C376 | 1.94 | 2.35 | |
| Needle-Roller Bearing | ||||
| 14 | 1610910096 | 18.19 | 22.01 | |
| Protective Cap | ||||
| 21 | 1610508038 | 5.83 | 7.05 | |
| Protection Sleeve | ||||
| 22 | 1610591051 | 8.45 | 10.22 | |
| Stop Sleeve | ||||
| 23 | 1610520006 | 13.93 | 16.86 | |
| Headed Bush | ||||
| 24 | 1610500025 | 7.58 | 9.17 | |
| Stopping Device | ||||
| 25 | 1612300027 | 8.45 | 10.22 | |
| Indexing Disk | ||||
| 26 | 1600A019WL | 2.24 | 2.71 | |
| Compression Spring | ||||
| 28 | 1614621010 | 3.31 | 4.01 | |
| Damping Ring | ||||
| 31 | 1610290129 | 5.33 | 6.45 | |
| Hammer Pipe | ||||
| 35 | 1615806249 | 101.94 | 123.35 | |
| Control Bushing | ||||
| 37 | 1610322018 | 5.83 | 7.05 | |
| Covering hood | ||||
| 38 | 1615190177 | 26.84 | 32.48 | |
| Fan Cover | ||||
| 43 | 1600A01D7D | 15.71 | 19.01 | |
| Compression Spring | ||||
| 44 | 1614621020 | 1.94 | 2.35 | |
| Holding-Down-Appliance | ||||
| 45 | 1610591052 | 1.70 | 2.06 | |
| Support Element | ||||
| 46 | 1600A01S8V | 1.70 | 2.06 | |
| Gear Sleeve | ||||
| 47 | 1610300076 | 6.54 | 7.91 | |
| Clutch Sleeve | ||||
| 48 | 1619990177 | 7.58 | 9.17 | |
| Retaining snap ring | ||||
| 52 | 1610224015 | 0.83 | 1.00 | |
| Spacer Tube | ||||
| 54 | 1600A019Z4 | 2.24 | 2.71 | |
| Cylindrical Gear | ||||
| 58 | 1616317620 | 10.73 | 12.98 | |
| Bearing Pedestal | ||||
| 59 | 1615805074 | 7.58 | 9.17 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616317090 | 67.25 | 81.37 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 8.45 | 10.22 | |
| Auxiliary Handle | ||||
| 84 | 160202509C | 4.10 | 4.96 | |
| Support clamp | ||||
| 85 | 1618040095 | 4.70 | 5.69 | |
| Clamping Band Ø87 MM | ||||
| 87 | 1617000807 | 13.93 | 16.86 | |
| Supporting Disc | ||||
| 94 | 1610290111 | 1.70 | 2.06 | |
| Driving Pin | ||||
| 95 | 1613120023 | 3.31 | 4.01 | |
| Shim ring 1,0 MM THICK | ||||
| 98 | 1610101015 | 1.18 | 1.43 | |
| Backup ring | ||||
| 99 | 1600220029 | 2.24 | 2.71 | |
| Stop Disc | ||||
| 104 | 1610190027 | 4.70 | 5.69 | |
| Needle-Roller Assembly | ||||
| 116 | 1610913029 | 3.31 | 4.01 | |
| Needle-Roller Assembly | ||||
| 117 | 1610913023 | 13.93 | 16.86 | |
| Needle-Roller Bearing | ||||
| 119 | 1610910081 | 11.88 | 14.37 | |
| Spacer Tube | ||||
| 120 | 1610190080 | 9.53 | 11.53 | |
| Spacer Ring | ||||
| 122 | 1610290128 | 5.83 | 7.05 | |
| Screw | ||||
| 123 | 160343003T | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 124 | 2603490022 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 125 | 1613435040 | 0.83 | 1.00 | |
| Bushing | ||||
| 127 | 1610300079 | 3.31 | 4.01 | |
| Bushing | ||||
| 129 | 1610300080 | 3.31 | 4.01 | |
| Sealing Frame | ||||
| 138 | 1611015064 | 5.33 | 6.45 | |
| Rotary shaft lip seal | ||||
| 142 | 1610290112 | 3.31 | 4.01 | |
| Retaining ring | ||||
| 143 | 1614601072 | 1.70 | 2.06 | |
| Supporting Disc | ||||
| 144 | 1610103025 | 2.71 | 3.28 | |
| O-Ring | ||||
| 151 | 1610210222 | 0.83 | 1.00 | |
| Retaining ring | ||||
| 152 | 1614601073 | 1.18 | 1.43 | |
| Retaining ring DIN 7993 A 30 | ||||
| 153 | 2916540017 | 1.18 | 1.43 | |
| Spring retaining ring DIN 472 62x2 MM | ||||
| 154 | 2916660027 | 3.31 | 4.01 | |
| Retaining ring | ||||
| 155 | 1614601074 | 1.18 | 1.43 | |
| O-Ring 33,0x2,0 MM | ||||
| 157 | 1610210103 | 1.94 | 2.35 | |
| O-Ring | ||||
| 158 | 1610210224 | 0.83 | 1.00 | |
| O-Ring | ||||
| 160 | 1610210246 | 1.18 | 1.43 | |
| Damping Ring | ||||
| 161 | 1610210227 | 6.54 | 7.91 | |
| O-Ring | ||||
| 162 | 1600210080 | 1.94 | 2.35 | |
| Seal Ring | ||||
| 165 | 1610290125 | 8.45 | 10.22 | |
| Cylindrical Roller | ||||
| 166 | 1613200020 | 1.94 | 2.35 | |
| Rotary shaft lip seal | ||||
| 167 | 161029012A | 3.31 | 4.01 | |
| Packing Washer | ||||
| 168 | 1610206027 | 1.94 | 2.35 | |
| Torx socket button screw | ||||
| 171 | 1613414026 | 1.70 | 2.06 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613435041 | 1.18 | 1.43 | |
| Handle | ||||
| 189 | 160513217Z | 6.54 | 7.91 | |
| Handle Cover | ||||
| 190 | 1600A015RL | 7.58 | 9.17 | |
| Rocker Foot | ||||
| 192 | 1600A015RV | 2.24 | 2.71 | |
| Damping rubber | ||||
| 196 | 1600A002PC | 1.18 | 1.43 | |
| Leaf Spring | ||||
| 197 | 160120000C | 7.58 | 9.17 | |
| Rear Housing Section | ||||
| 204 | 1600A01A78 | 26.84 | 32.48 | |
| Holding strip | ||||
| 206 | 1612386006 | 0.83 | 1.00 | |
| Counterweight | ||||
| 240 | 1600A000K3 | 7.58 | 9.17 | |
| Guide Piece | ||||
| 241 | 1615190181 | 1.94 | 2.35 | |
| Guide Piece | ||||
| 242 | 1615190182 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 243 | 1614621013 | 1.94 | 2.35 | |
| Switch | ||||
| 304 | 2607202360 | 6.54 | 7.91 | |
| Electronic Module | ||||
| 381 | 16072335EP | 26.84 | 32.48 | |
| Ribbon cable | ||||
| 382 | 1607503566 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 383 | 1600A016CY | 7.58 | 9.17 | |
| Ribbon cable | ||||
| 384 | 1607503567 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 385 | 1600A013WF | 29.75 | 36.00 | |
| Cover unit | ||||
| 387 | 1600A01N8R | 1.18 | 1.43 | |
| LED-Module | ||||
| 388 | 1600A01P8Z | 4.70 | 5.69 | |
| Shim 0,45 MM | ||||
| 800 | 1610102096 | 1.18 | 1.43 | |
| Shim 0,30 MM | ||||
| 800 | 1610102095 | 0.83 | 1.00 | |
| Brushless DC motor | ||||
| 801 | 1607000DN4 | 148.65 | 179.87 | |
| Ribbon cable | ||||
| 802 | 1600A01R8P | 3.31 | 4.01 | |
| Contact retainer | ||||
| 805 | 1607000DN6 | 36.85 | 44.59 | |
| Contact retainer | ||||
| 805/1 | 1607000DL8 | 13.93 | 16.86 | |
| Rail | ||||
| 806 | 1607000DF6 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 1.94 | 2.35 | |
| Toolholder | ||||
| 820 | 1618597102 | 113.29 | 137.08 | |
| Plain bearing | ||||
| 821 | 1610508058 | 23.75 | 28.74 | |
| Motor Hood | ||||
| 839 | 1607000EX8 | 13.93 | 16.86 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000A29 | 168.86 | 204.32 | |
| Striker Pin | ||||
| 841 | 1617000A4R | 49.56 | 59.97 | |
| Control Fork | ||||
| 849 | 1617000A31 | 5.83 | 7.05 | |
| Guide Bushing | ||||
| 853 | 1610231004 | 23.75 | 28.74 | |
| Hammer Piston | ||||
| 856 | 1617000A32 | 44.82 | 54.23 | |
| Striker | ||||
| 857 | 1617000A33 | 23.75 | 28.74 | |
| Spur Wheel Clutch | ||||
| 860 | 1607000EL4 | 159.00 | 192.39 | |
| Eccentric | ||||
| 872 | 1617000A35 | 81.47 | 98.58 | |
| Housing Cover | ||||
| 873 | 1617000A36 | 44.82 | 54.23 | |
| Electronics Module | ||||
| 880 | 1607000DN5 | 168.86 | 204.32 | |
| Auxiliary Handle | ||||
| 884 | 16070312E7 | 29.75 | 36.00 | |
| Rocker Arm | ||||
| 891 | 1607000DF1 | 11.88 | 14.37 | |
| Screw Plate | ||||
| 894 | 1607000DF2 | 11.88 | 14.37 | |
| Diaphragm | ||||
| 895 | 1607000DF3 | 29.75 | 36.00 | |
| Boot | ||||
| 897 | 1607000DF4 | 13.93 | 16.86 | |
| Boot | ||||
| 898 | 1607000DF5 | 13.93 | 16.86 | |
