Here you will find all available parts and drawings of the 'Bosch 3611J19000 (GBH18V-28DC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

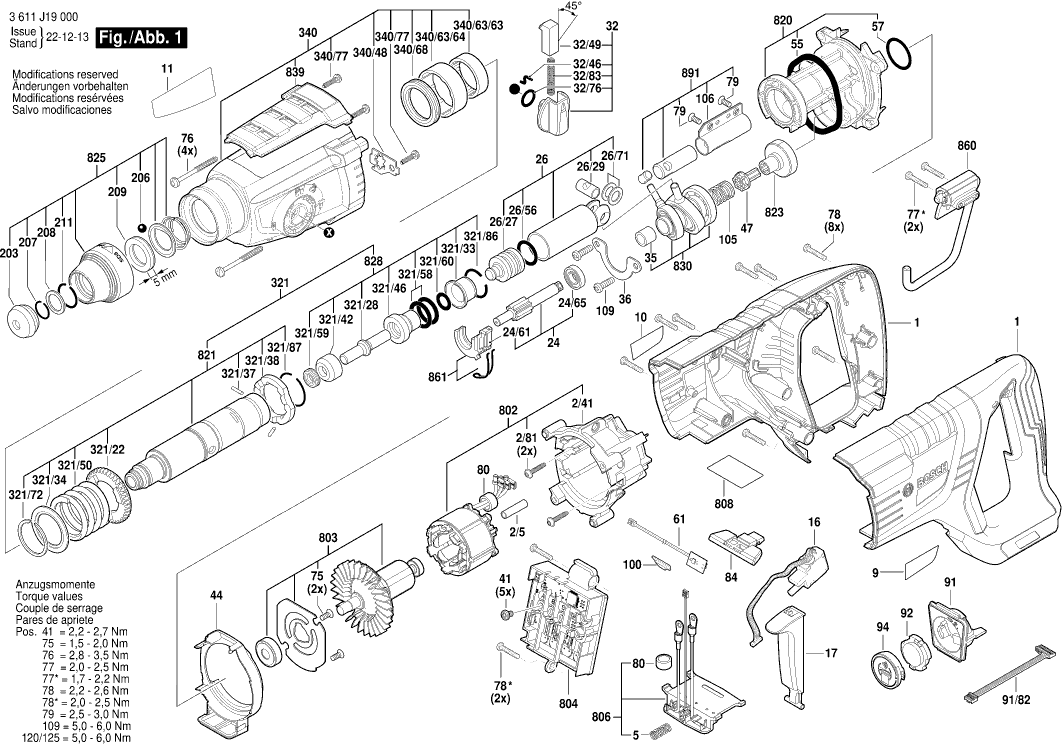

Technical drawing of model Bosch 3611J19000 (GBH18V-28DC)
Spare parts list of model Bosch 3611J19000 (GBH18V-28DC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082L7 | 34.82 | 42.13 | |
| Stator Casing | ||||
| 2/41 | 1600A01RR3 | 4.94 | 5.98 | |
| Woven-Fabric Flex. Tubing | ||||
| 2/5 | 1600A029GH | 1.00 | 1.21 | |
| Torx head screw | ||||
| 2/81 | 1603435086 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 5 | 1609280477 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C3UN | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 10 | 160111C3UP | 2.40 | 2.90 | |
| Reference Plate | ||||
| 11 | 160111C41Z | 2.40 | 2.90 | |
| Switch | ||||
| 16 | 2607202530 | 11.37 | 13.76 | |
| Switch-Pawl | ||||
| 17 | 1600A01U4C | 2.86 | 3.46 | |
| Toothed Shaft | ||||
| 24 | 16170006EJ | 23.90 | 28.92 | |
| Switching Element | ||||
| 24/61 | 1615820097 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 24/65 | 1610905016 | 9.67 | 11.70 | |
| Hammer Piston | ||||
| 26 | 16170006A5 | 37.50 | 45.38 | |
| Striker | ||||
| 26/27 | 1610311019 | 18.94 | 22.92 | |
| Piston Pin | ||||
| 26/29 | 1613105020 | 4.94 | 5.98 | |
| O-Ring | ||||
| 26/56 | 1610210121 | 2.40 | 2.90 | |
| Guide Disc | ||||
| 26/71 | 1610100016 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 32 | 1612026037 | 9.67 | 11.70 | |
| Driver Pin | ||||
| 32/46 | 1614690002 | 1.49 | 1.80 | |
| Switch Button | ||||
| 32/49 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/76 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 32/83 | 1614611006 | 3.44 | 4.16 | |
| Plain bearing | ||||
| 35 | 1610202024 | 4.94 | 5.98 | |
| Bearing Holder | ||||
| 36 | 1615808106 | 1.49 | 1.80 | |
| Screw | ||||
| 41 | 160343003T | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 44 | 1600591063 | 4.94 | 5.98 | |
| Control Element | ||||
| 47 | 1616312010 | 5.81 | 7.03 | |
| O-Ring 59,5x5,0 MM | ||||
| 55 | 1610290104 | 3.44 | 4.16 | |
| O-Ring | ||||
| 57 | 1610210208 | 1.49 | 1.80 | |
| Printed-Board Assembly | ||||
| 61 | 1607503764 | 5.81 | 7.03 | |
| Thread-forming tap. Screw | ||||
| 75 | 1613435023 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 76 | 1613435022 | 1.49 | 1.80 | |
| Screw | ||||
| 77 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 78 | 2603490023 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 79 | 1613435042 | |||
| Ferrite | ||||
| 80 | 1600A0276C | 1.00 | 1.21 | |
| Pusher | ||||
| 84 | 1600A01VJ2 | 2.08 | 2.52 | |
| Electronics Module | ||||
| 91 | 1600A0288W | 13.13 | 15.89 | |
| Ribbon cable | ||||
| 91/82 | 1607503567 | 2.40 | 2.90 | |
| Cover Panel | ||||
| 92 | 1600A016ML | 1.00 | 1.21 | |
| Cover unit | ||||
| 94 | 1600A01N8R | 1.49 | 1.80 | |
| Lens | ||||
| 100 | 1600A000LE | 1.49 | 1.80 | |
| Compression Spring | ||||
| 105 | 1614643027 | 1.49 | 1.80 | |
| Protective Sleeve | ||||
| 106 | 1619PS6015 | 4.94 | 5.98 | |
| Protective Sleeve | ||||
| 106 | 1610590024 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 109 | 160343508E | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 120 | 16020250AB | 14.94 | 18.08 | |
| Auxiliary Handle | ||||
| 120/120 | 160202509C | 4.94 | 5.98 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 120/802 | 1600A0288A | 4.18 | 5.06 | |
| Protective Cap | ||||
| 203 | 1610508047 | 2.08 | 2.52 | |
| Ball | ||||
| 206 | 1613230003 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 207 | 1614601027 | 1.00 | 1.21 | |
| Retaining Washer | ||||
| 208 | 1610101629 | 1.00 | 1.21 | |
| Friction Washer | ||||
| 209 | 1610102089 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 211 | 160460102S | 1.00 | 1.21 | |
| Tool Holding Fixture | ||||
| 321 | 1618597135 | 82.63 | 99.98 | |
| Cylindrical Gear | ||||
| 321/22 | 1616312004 | 11.37 | 13.76 | |
| Striker Pin | ||||
| 321/28 | 1613124098 | 18.94 | 22.92 | |
| Holding Jacket | ||||
| 321/33 | 1610590020 | 6.73 | 8.14 | |
| Supporting Disc | ||||
| 321/34 | 1619PS6014 | 4.18 | 5.06 | |
| Supporting Disc | ||||
| 321/34 | 1610190067 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 321/37 | 1613100019 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 321/38 | 1600A008AG | 3.44 | 4.16 | |
| Thrust Ring | ||||
| 321/42 | 1610102084 | 8.35 | 10.10 | |
| Guide Bushing | ||||
| 321/46 | 1610390068 | 14.94 | 18.08 | |
| Compression Spring | ||||
| 321/50 | 1614615008 | 5.81 | 7.03 | |
| O-Ring | ||||
| 321/58 | 1610210105 | 4.18 | 5.06 | |
| Shaft Seal | ||||
| 321/59 | 1600A009VC | 2.86 | 3.46 | |
| O-Ring | ||||
| 321/60 | 1610210209 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 321/72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 321/86 | 1614601034 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 321/87 | 1604601028 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 340 | 160580667L | 43.12 | 52.18 | |
| Tab Washer | ||||
| 340/48 | 1611098008 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 340/63/63 | 1600A001CN | 2.40 | 2.90 | |
| Bushing | ||||
| 340/63/64 | 1610390069 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 340/68 | 1610283036 | 7.46 | 9.03 | |
| Screw | ||||
| 340/77 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 653 | 1607A350V0 | |||
| Charger | ||||
| 654 | 2607225921 | 165.14 | 199.82 | |
| Depth-Gauge | ||||
| 688 | 1613001009 | 3.44 | 4.16 | |
| Stator | ||||
| 802 | 1600A0288B | 47.53 | 57.51 | |
| Rotor | ||||
| 803 | 1600A0288C | 47.53 | 57.51 | |
| Electronics Module | ||||
| 804 | 1600A0288D | 126.98 | 153.65 | |
| Contact Plate | ||||
| 806 | 1600A0288E | 9.67 | 11.70 | |
| Nameplate | ||||
| 808 | 160111A8WK | 2.40 | 2.90 | |
| Intermediate Flange | ||||
| 820 | 1600A0288F | 27.81 | 33.65 | |
| Tool Holding Fixture | ||||
| 821 | 1618597138 | 52.45 | 63.46 | |
| Gear Sleeve | ||||
| 823 | 16170006BW | 20.39 | 24.67 | |
| Tool Holding Fixture | ||||
| 825 | 1618597139 | 11.37 | 13.76 | |
| Striker Pin | ||||
| 828 | 1617000697 | 43.12 | 52.18 | |
| Drive bearing | ||||
| 830 | 16170006BX | 39.14 | 47.36 | |
| Cover | ||||
| 839 | 16055002JW | 9.67 | 11.70 | |
| Hook | ||||
| 860 | 1600A0288G | 7.46 | 9.03 | |
| Switching Element | ||||
| 861 | 1615820097 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 870 | 1613523011 | |||
| Countersunk-Head Screw | ||||
| 870/2 | 2603421207 | 1.49 | 1.80 | |
| Chuck | ||||
| 871 | 1608571069 | 23.90 | 28.92 | |
| Chuck Wrench | ||||
| 872 | 2607950007 | 6.73 | 8.14 | |
| Weight | ||||
| 891 | 16170006BZ | 6.73 | 8.14 | |
