Here you will find all available parts and drawings of the 'Bosch 3611J24000 (GBH18V-22)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

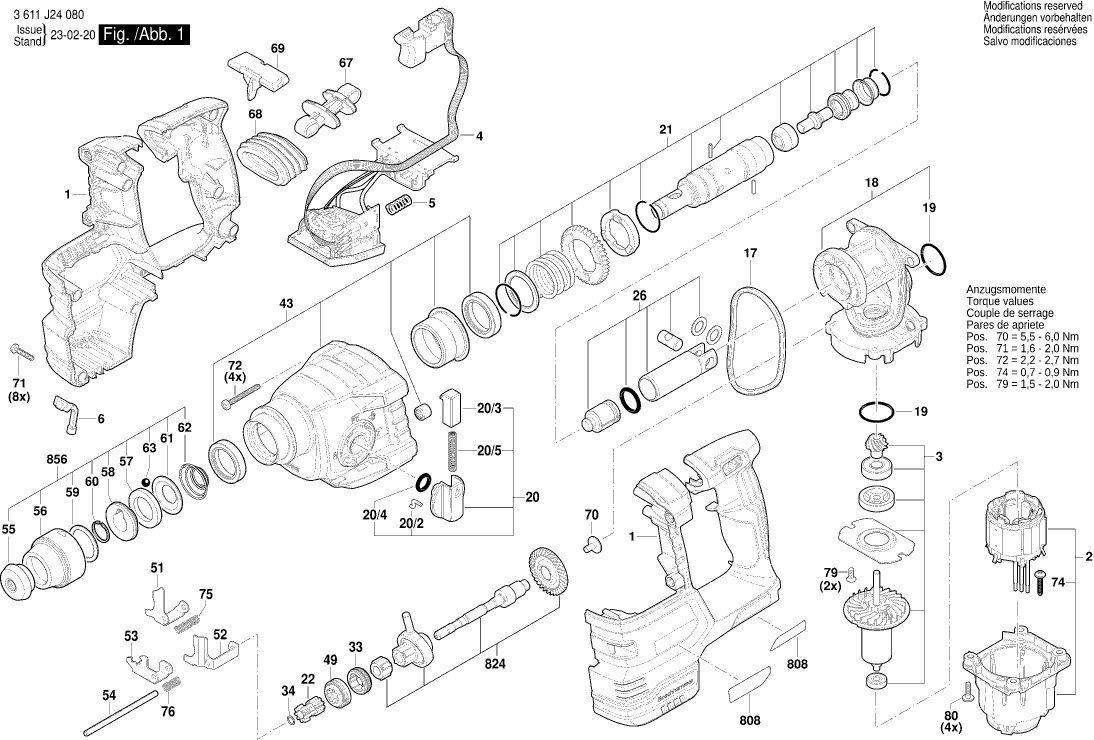

Technical drawing of model Bosch 3611J24000 (GBH18V-22)
Spare parts list of model Bosch 3611J24000 (GBH18V-22)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082R3 | 16.79 | 20.32 | |
| Stator | ||||
| 2 | 1600A0299X | 43.12 | 52.18 | |
| Rotor | ||||
| 3 | 1600A0299Y | 43.12 | 52.18 | |
| Electronics Module | ||||
| 4 | 1619P18209 | 98.18 | 118.80 | |
| Compression Spring | ||||
| 5 | 2604690055 | 1.00 | 1.21 | |
| Lens | ||||
| 6 | 1600A026NJ | 1.49 | 1.80 | |
| Sealing Ring | ||||
| 17 | 1619P17872 | 2.08 | 2.52 | |
| O-Ring | ||||
| 17 | 1610290108 | 1.49 | 1.80 | |
| Intermediate Flange | ||||
| 18 | 1600A0299Z | 26.62 | 32.21 | |
| Intermediate Flange | ||||
| 18 | 1619PS1037 | 21.30 | 25.77 | |
| O-Ring | ||||
| 19 | 1610210208 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 20 | 1612026151 | 13.13 | 15.89 | |
| Driver Pin | ||||
| 20/2 | 1614690009 | 3.44 | 4.16 | |
| Switch Button | ||||
| 20/3 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 20/4 | 1610210046 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 20/5 | 1614611006 | 3.44 | 4.16 | |
| Toolholder | ||||
| 21 | 161859713C | 27.81 | 33.65 | |
| Gear Sleeve | ||||
| 22 | 1600A022V6 | 5.96 | 7.21 | |
| Hammer Piston | ||||
| 26 | 1619P17855 | 16.79 | 20.32 | |
| O-Ring | ||||
| 26/65 | 1610210186 | 2.08 | 2.52 | |
| Switching Element | ||||
| 33 | 1619P16867 | 1.32 | 1.60 | |
| Retaining ring | ||||
| 34 | 1614601067 | 1.49 | 1.80 | |
| Gear Housing | ||||
| 43 | 16058066B4 | 18.94 | 22.92 | |
| Switching Element | ||||
| 49 | 1600A022W7 | 1.90 | 2.30 | |
| Shift Plate | ||||
| 51 | 1610021004 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 52 | 1610021006 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 53 | 1600A02195 | 1.49 | 1.80 | |
| Guide Rod | ||||
| 54 | 1613023005 | 1.49 | 1.80 | |
| Protective Cap | ||||
| 55 | 1610508052 | 1.49 | 1.80 | |
| Protection Sleeve | ||||
| 56 | 1610499060 | 2.08 | 2.52 | |
| Friction Washer | ||||
| 57 | 1610102025 | 2.08 | 2.52 | |
| Support | ||||
| 58 | 1619P16959 | 2.40 | 2.90 | |
| Friction Washer | ||||
| 59 | 1610102045 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 60 | 1614601077 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 61 | 1610551005 | 2.40 | 2.90 | |
| Conical helical spring | ||||
| 62 | 1619P01799 | 1.00 | 1.21 | |
| Ball | ||||
| 63 | 1903230013 | 2.08 | 2.52 | |
| Guide Piece | ||||
| 67 | 1600A00798 | 9.67 | 11.70 | |
| Bellows | ||||
| 68 | 1600A001CL | 4.94 | 5.98 | |
| Switch Slide | ||||
| 69 | 1600A027G6 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 70 | 160343509H | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 71 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 1619P09645 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 74 | 1619P00220 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 75 | 1614643025 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 76 | 1614643023 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 79 | 1613435023 | 1.00 | 1.21 | |
| Screw 4x14 | ||||
| 80 | 1619P01380 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 120 | 1619P16971 | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 120/120 | 1619P20196 | 2.86 | 3.46 | |
| Support clamp | ||||
| 120/121 | 1617000475 | 9.67 | 11.70 | |
| Push-Button | ||||
| 120/122 | 1613231010 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 120/123 | 2604610028 | 1.49 | 1.80 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490002 | 4.18 | 5.06 | |
| Depth-Gauge | ||||
| 651 | 1613001009 | 3.44 | 4.16 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 653 | 2607337069 | 114.26 | 138.25 | |
| Battery Pack | ||||
| 653 | 1607A350M0 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 653 | 1617S020T1 | 80.26 | 97.11 | |
| Battery Pack | ||||
| 653 | 1617S020T2 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 654 | 2607226251 | 75.38 | 91.21 | |
| Fast Charger CN GAL 18V-40 | ||||
| 654 | 2607226267 | 71.68 | 86.73 | |
| Latch | ||||
| 691 | 1619P17425 | 4.18 | 5.06 | |
| Label | ||||
| 808 | 1619P17864 | 7.46 | 9.03 | |
| Jack Shaft | ||||
| 824 | 1619P17847 | 33.33 | 40.33 | |
| Jack Shaft | ||||
| 824 | 1619PS1035 | 18.94 | 22.92 | |
| Protection Sleeve | ||||
| 856 | 16170006D3 | 10.90 | 13.19 | |
| Grease Tube | ||||
| 892 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 893 | 1615430001 | 22.88 | 27.68 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
