Here you will find all available parts and drawings of the 'Bosch 3611J04300 (GBH18V-LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

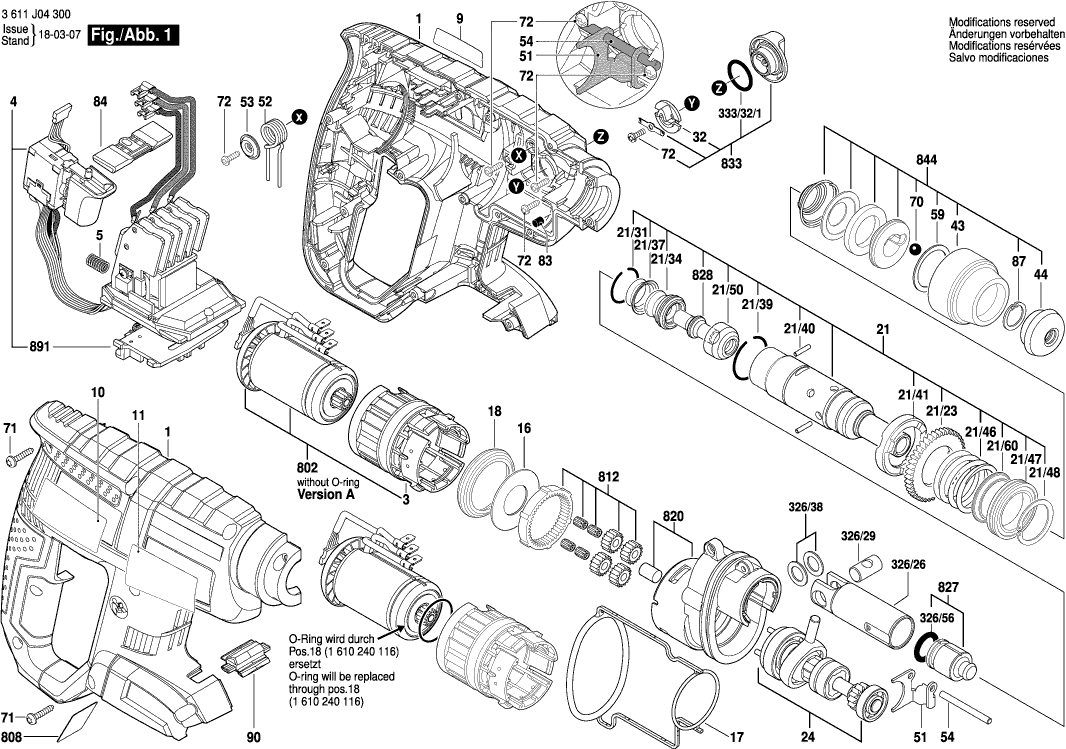

Technical drawing of model Bosch 3611J04300 (GBH18V-LI)
Spare parts list of model Bosch 3611J04300 (GBH18V-LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1615104063 | 27.81 | 33.65 | |
| Centering Sleeve | ||||
| 3 | 1610499067 | 10.90 | 13.19 | |
| Electronics Module | ||||
| 4 | 1607233376 | 98.18 | 118.80 | |
| Compression Spring | ||||
| 5 | 1609280477 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110Z82 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 10 | 1611110Z83 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 11 | 1611110Z84 | |||
| Supporting Disc | ||||
| 16 | 1610102637 | 1.49 | 1.80 | |
| Sealing Frame | ||||
| 17 | 1611015062 | 4.94 | 5.98 | |
| Seal Ring | ||||
| 18 | 1610290116 | 4.18 | 5.06 | |
| Hammer Pipe | ||||
| 21 | 1617000667 | 64.67 | 78.25 | |
| Cylindrical Gear | ||||
| 21/23 | 1616317084 | 16.79 | 20.32 | |
| Retaining ring | ||||
| 21/31 | 1614601053 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 21/34 | 1610508051 | 4.18 | 5.06 | |
| Holding Plate | ||||
| 21/37 | 1610551008 | 2.18 | 2.64 | |
| Retaining ring | ||||
| 21/39 | 160460102U | 1.00 | 1.21 | |
| Straight Pin | ||||
| 21/40 | 1613100019 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 21/40 | 1613100032 | 1.00 | 1.21 | |
| Ratchet Disc | ||||
| 21/41 | 1610102072 | 5.81 | 7.03 | |
| Compression Spring | ||||
| 21/46 | 1614630003 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 21/47 | 1610905039 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 21/48 | 1614601054 | 1.49 | 1.80 | |
| Thrust Ring | ||||
| 21/50 | 1600A00FL3 | 2.86 | 3.46 | |
| Support Disc | ||||
| 21/60 | 1610190054 | 1.49 | 1.80 | |
| Jack Shaft | ||||
| 24 | 1607000D10 | 71.68 | 86.73 | |
| Switch Button | ||||
| 32 | 1612026114 | 1.00 | 1.21 | |
| Protection Sleeve | ||||
| 43 | 1610499080 | 2.08 | 2.52 | |
| Protective Cap | ||||
| 44 | 1610508052 | 1.49 | 1.80 | |
| Shift Plate | ||||
| 51 | 1613231014 | 4.94 | 5.98 | |
| Coiled Spring | ||||
| 52 | 1614690005 | 1.49 | 1.80 | |
| Pressure Disc | ||||
| 53 | 1619P00828 | 1.00 | 1.21 | |
| Guide Rod | ||||
| 54 | 1613100033 | 1.49 | 1.80 | |
| Friction Washer | ||||
| 59 | 1610102045 | 1.00 | 1.21 | |
| Ball | ||||
| 70 | 1903230013 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 71 | 1613435036 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 2603490017 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 83 | 2603100056 | 1.49 | 1.80 | |
| Switch Slide | ||||
| 84 | 1613231029 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 87 | 1614601077 | 1.49 | 1.80 | |
| Lens | ||||
| 90 | 1600A00071 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 120 | 160202508X | 16.79 | 20.32 | |
| Auxiliary Handle | ||||
| 120/120 | 160202507H | 10.90 | 13.19 | |
| Clamping Band | ||||
| 120/124 | 1611316021 | 2.86 | 3.46 | |
| T-Head Bolt | ||||
| 120/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 120/802 | 1617000475 | 9.67 | 11.70 | |
| Hammer Piston | ||||
| 326/26 | 1618700083 | 9.67 | 11.70 | |
| Piston Pin | ||||
| 326/29 | 1613100034 | 2.86 | 3.46 | |
| Guide Disc | ||||
| 326/38 | 1610100016 | 1.49 | 1.80 | |
| O-Ring | ||||
| 326/56 | 1610210186 | 2.08 | 2.52 | |
| O-Ring | ||||
| 333/32/1 | 1610210185 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 651 | 1613001009 | 3.44 | 4.16 | |
| Battery Pack | ||||
| 653 | 1607A350M0 | 110.30 | 133.46 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 653 | 2607336815 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 653 | 1607A350B2 | 102.63 | 124.18 | |
| Battery Pack | ||||
| 653 | 1617S020T1 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 654 | 2607225325 | 136.48 | 165.14 | |
| Charger | ||||
| 654 | 2607225923 | 136.48 | 165.14 | |
| Charger | ||||
| 654 | 2607225925 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 654 | 2607225437 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 654 | 2607225587 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 654 | 2607225589 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 654 | 2607225431 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 654 | 2607225425 | 71.68 | 86.73 | |
| Charger | ||||
| 654 | 2607225321 | 64.67 | 78.25 | |
| DC motor | ||||
| 802 | 16170006BG | 136.48 | 165.14 | |
| Nameplate | ||||
| 808 | 160111A3H9 | 2.40 | 2.90 | |
| Planetary Gear Train | ||||
| 812 | 1617000665 | 14.94 | 18.08 | |
| Intermediate Flange | ||||
| 820 | 16170006BH | 33.33 | 40.33 | |
| Striker | ||||
| 827 | 1617000669 | 16.79 | 20.32 | |
| Striker Pin | ||||
| 828 | 1613124084 | 4.18 | 5.06 | |
| Clamp Handle | ||||
| 833 | 16170006BJ | 2.86 | 3.46 | |
| Protection Sleeve | ||||
| 844 | 16170006D3 | 10.90 | 13.19 | |
| Contact retainer | ||||
| 891 | 1609280478 | 11.37 | 13.76 | |
