Here you will find all available parts and drawings of the 'Bosch 3611J05400 ( GBH14,4V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

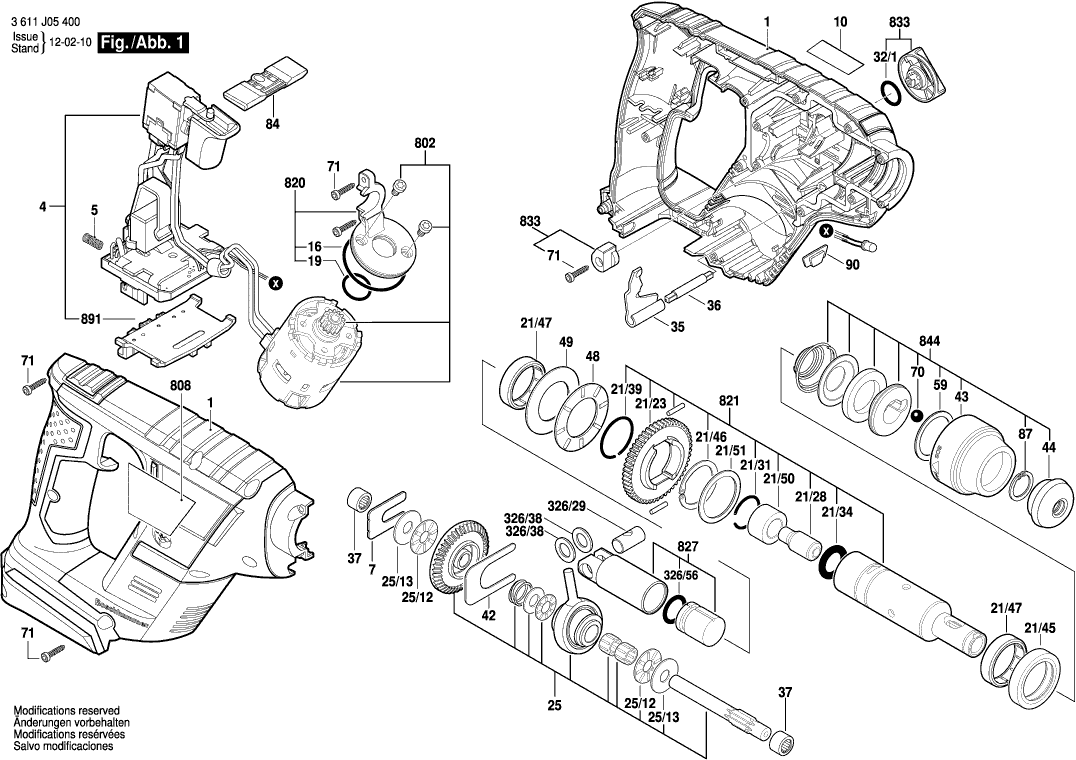

Technical drawing of model Bosch 3611J05400 ( GBH14,4V-LI )
Spare parts list of model Bosch 3611J05400 ( GBH14,4V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1615104164 | 23.75 | 28.74 | |
| Electronics Module | ||||
| 4 | 1607233411 | 91.56 | 110.79 | |
| U-Sheet 0.9 MM | ||||
| 7 | 1611320001 | 1.18 | 1.43 | |
| U-Sheet 0.7 MM | ||||
| 7 | 1611320002 | 1.18 | 1.43 | |
| U-Sheet 0.8 MM | ||||
| 7 | 1611320003 | 1.18 | 1.43 | |
| Manufacturer's nameplate GBH 14,4 V-LI | ||||
| 10 | 1611110W13 | 1.94 | 2.35 | |
| O-Ring 32,0x1,5 MM | ||||
| 16 | 1610210243 | 1.70 | 2.06 | |
| O-Ring 14,2x2,0 MM | ||||
| 19 | 1610210231 | 0.83 | 1.00 | |
| Cylindrical Gear | ||||
| 21/23 | 1616312011 | 12.41 | 15.02 | |
| Striker Pin | ||||
| 21/28 | 1613124107 | 3.31 | 4.01 | |
| Retaining ring | ||||
| 21/31 | 1614601075 | 0.83 | 1.00 | |
| O-Ring 11,3x4,75 MM | ||||
| 21/34 | 1610210113 | 1.18 | 1.43 | |
| Retaining ring | ||||
| 21/39 | 1614601076 | 0.83 | 1.00 | |
| Shaft Seal | ||||
| 21/45 | 1610283048 | 4.70 | 5.69 | |
| Retaining ring | ||||
| 21/46 | 1614601054 | 1.18 | 1.43 | |
| Needle bearing | ||||
| 21/47 | 1610910071 | 5.33 | 6.45 | |
| Guide Bushing | ||||
| 21/50 | 1610400047 | 4.70 | 5.69 | |
| Supporting Disc 1,0 MM THICK | ||||
| 21/51 | 1610100025 | 1.18 | 1.43 | |
| Jack Shaft | ||||
| 25 | 16170006CZ | 60.65 | 73.39 | |
| Thrust Needle Rim | ||||
| 25/12 | 1610913024 | 1.70 | 2.06 | |
| Support Disc | ||||
| 25/13 | 1610100024 | 0.83 | 1.00 | |
| O-Ring 12,0x2,0 MM | ||||
| 32/1 | 1610210233 | 2.24 | 2.71 | |
| Pressure Lever | ||||
| 35 | 1611329032 | 2.24 | 2.71 | |
| Adjusting Pin | ||||
| 36 | 1613101015 | 4.10 | 4.96 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 37 | 2600917003 | 2.24 | 2.71 | |
| Brake Plate | ||||
| 42 | 1611031008 | 1.18 | 1.43 | |
| Protection Sleeve | ||||
| 43 | 1610499080 | 1.70 | 2.06 | |
| Protective Cap | ||||
| 44 | 1610508052 | 1.18 | 1.43 | |
| Needle-Roller Assembly | ||||
| 48 | 1610913027 | 2.71 | 3.28 | |
| Support Disc 1,0 MM THICK | ||||
| 49 | 1610102617 | 1.70 | 2.06 | |
| Friction Washer 1,0 MM THICK | ||||
| 59 | 1610102045 | 0.83 | 1.00 | |
| Ball DIN 5401-Ø7MM-III-ST | ||||
| 70 | 1903230013 | 1.70 | 2.06 | |
| Torx Oval-Head Screw | ||||
| 71 | 1613490028 | 0.83 | 1.00 | |
| Switch Slide | ||||
| 84 | 1613231029 | 1.18 | 1.43 | |
| Spring retaining ring | ||||
| 87 | 1614601077 | 1.18 | 1.43 | |
| Lens | ||||
| 90 | 1600A000LE | 1.18 | 1.43 | |
| Piston Pin | ||||
| 326/29 | 1613100039 | 1.94 | 2.35 | |
| Shim washer 1,2 MM THICK | ||||
| 326/38 | 1610100608 | 1.18 | 1.43 | |
| O-Ring 13,0x2,5 MM | ||||
| 326/56 | 1610210232 | 0.83 | 1.00 | |
| Battery Pack BBS-MR XL-PACK 14,4V, LI, 4,0 Ah | ||||
| 653 | 2607336813 | 91.56 | 110.79 | |
| Charger J GAL 1880 CV 100/14,4-18V | ||||
| 654 | 2607225931 | 113.29 | 137.08 | |
| Fast Charger ROK 220/10,8-18V, 1h | ||||
| 654 | 2607225435 | 81.47 | 98.58 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 654 | 2607225321 | 55.25 | 66.85 | |
| DC motor | ||||
| 802 | 16170006CW | 101.94 | 123.35 | |
| Nameplate | ||||
| 808 | 1611110W32 | 2.24 | 2.71 | |
| Intermediate Flange | ||||
| 820 | 16170006CX | 23.75 | 28.74 | |
| Hammer Pipe | ||||
| 821 | 16170006CY | 91.56 | 110.79 | |
| Hammer Piston | ||||
| 827 | 16170006D0 | 12.41 | 15.02 | |
| Clamp Handle | ||||
| 833 | 16170006D1 | 6.54 | 7.91 | |
| Protection Sleeve | ||||
| 844 | 16170006D3 | 8.45 | 10.22 | |
| Contact retainer | ||||
| 891 | 1609280474 | 11.88 | 14.37 | |
