Here you will find all available parts and drawings of the 'Bosch 0611217783 ( GBH12VRE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

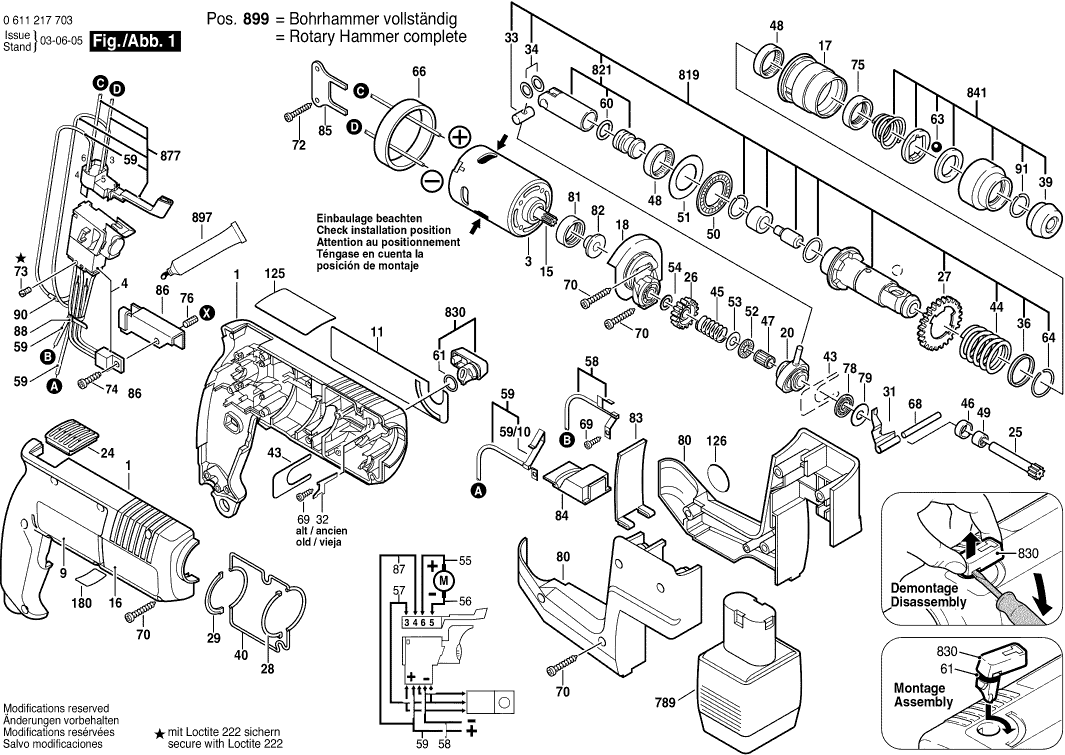

Technical drawing of model Bosch 0611217783 ( GBH12VRE )

Spare parts list of model Bosch 0611217783 ( GBH12VRE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 1615104005 20.42 24.71
DC motor 230V
3 1617220011 73.72 89.20
On-Off Switch
4 2607200269 81.47 98.58
Manufacturer's nameplate
9 1611110543 2.24 2.71
Manufacturer's nameplate
11 1611110544 2.24 2.71
Drive pinion Z=8
15 1616333024 4.70 5.69
Reference Plate
16 1611110539 2.24 2.71
Guide Sleeve
17 1615819013 5.83 7.05
Flanged Bearing
18 1615700027 12.41 15.02
Drive bearing
20 1615819012 26.84 32.48
Protective Grille
24 1612388019 1.18 1.43
Toothed Shaft Z=9
25 1613160008 15.71 19.01
Cylindrical Gear Z=31
26 1616317600 0.83 1.00
No longer available, no replacement
27 1616317034
No longer available, no replacement
28 1611015034
No longer available, no replacement
29 1611015035
Pressure Lever
31 1611329009 2.24 2.71
Piston Pin
33 1613103006 2.24 2.71
Shim washer 1,2 MM THICK
34 1610100608 1.18 1.43
Supporting Disc
36 1610102024 1.18 1.43
Protective Cap L=17 MM, SDS-PLUS
39 1610508008 1.70 2.06
No longer available, no replacement
40 1611015033
Holding Plate
43 1611031005 1.18 1.43
No longer available, no replacement
44 1614634002
Compression Spring
45 1614610005 1.18 1.43
Retaining snap ring
46 1610200014 1.18 1.43
Needle-Roller Assembly
47 1610913008 3.31 4.01
Needle bearing
48 1610910071 5.33 6.45
Needle-Roller Bearing Ø8x8 MM
49 2600917003 2.24 2.71
Roller-Cage Assembly
50 1610920002 2.71 3.28
Support Disc 1,0 MM THICK
51 1610102617 1.70 2.06
Thrust Needle Rim
52 1610920005 2.24 2.71
Support Disc
53 1610100602 1.18 1.43
Shim 0,6 MM THICK
54 1610100604 1.18 1.43
Shim 0,8 MM THICK
54 1610100605 1.18 1.43
Shim 1,0 MM THICK
54 1610100606 1.18 1.43
Shim 1,2 MM THICK
54 1610100607 1.18 1.43
Contact Spring 2,5 MM BLUE
58 1614449007 6.54 7.91
Contact Spring 2,5 MM RED
59 1614449009 6.54 7.91
Contact Spring
59/10 1611290002 2.71 3.28
No longer available, no replacement
60 1610210086
O-Ring 10,5x2,7 MM
61 1610210046 1.70 2.06
Ball DIN 5401-Ø7MM-III-ST
63 1903230013 1.70 2.06
No longer available, no replacement
64 1614601007
Rubber Ring
66 1610206025 2.24 2.71
Straight Pin DIN 6325-5M6x45
68 2917550133 0.83 1.00
Tapping Screw DIN7981-ST2,9x9,5C-Z
69 2912401005 0.83 1.00
Tapping Screw DIN 7981-ST3,9x25-C-Z
70 2912401022 0.83 1.00
Tapping Screw DIN7981-ST3,9x16-C-Z
72 2912401019 0.83 1.00
Socket head cap screw M3x6,5-4.8
73 2603410001 1.18 1.43
Oval-Head Screw DIN 7985 M 3x8-5.8-Z
74 2912451050 0.83 1.00
Rotary shaft lip seal
75 1610283021 5.33 6.45
Expansion Bushing
76 1610390020 1.18 1.43
Roller-Cage Assembly
78 1610920006 2.24 2.71
Support Disc
79 1610100609 1.18 1.43
Additional Housing
80 1615190031 12.41 15.02
Locating ring
81 1610290017 1.18 1.43
Cover Disc
82 1610516011 1.18 1.43
Holding Spring
83 1611290003 3.31 4.01
Push-Button
84 1612026034 1.94 2.35
Guiding Plate
85 1611098003 1.18 1.43
Cooling Sheet
86 1611329013 6.54 7.91
Connecting Cable
87 1614430028 2.71 3.28
Holding Belt
88 2601398007 1.18 1.43
Shrinkable Tube
90 2600409018 1.18 1.43
Retaining ring
91 160460102S 0.83 1.00
Auxiliary Handle
120 160202507H 8.45 10.22
Support clamp Ø43 MM
121 1618040048 6.54 7.91
T-Head Bolt M8x40 MM
122 1613490002 3.31 4.01
Clamping Band Ø43 MM
123 1611316006 1.94 2.35
No longer available, no replacement
126 2601110461
No information available, not orderable
700 1617000132
Countersunk-Head Screw M6x27 LEFTHAND THREADS
700/20 2603421226 1.18 1.43
Tandkransboorhouder 1,5-13.1/2
701 1608571062 0.83 1.00
Chuck Wrench SG2
701/7 2607950007 5.33 6.45
No longer available, no replacement
702 1617000133
Retaining ring
702/10/2 2604601004 1.18 1.43
No longer available, no replacement
703 1615439003
Rubber Bushing Ø5-7 MM
703/30 1610312001 0.83 1.00
Rubber Bushing Ø8-10 MM
703/651 1610312002 0.83 1.00
No information available, not orderable
720 1612025032
Parts Set
720/800 1617000925 12.41 15.02
Carrying Case
750 1615438188 0.83 1.00
Depth-Gauge SW 6x210 MM
752 1613001009 2.71 3.28
No information available, not orderable
753 1618596166
Fast Charger EU 230/7,2-24V, 1h
760 2607224425 130.32 157.69
Fast Charger USA 120/7,2-24V, 1h
760 2607224431 130.32 157.69
Fast Charger J 100/7,2-14,4V, 30 MIN.
760 2607224711 101.94 123.35
Fast Charger GB 230/7,2-24V, 1h
760 2607224427 91.56 110.79
Fast Charger AUS 240/7,2-14,4V, 1h
760 2607224443 81.47 98.58
No information available, not orderable
777 2607018296
No information available, not orderable
778 1618580000
No longer available, no replacement
789 2607335010
Ratchet Sleeve
819 1617000940 101.94 123.35
Parts Set
821 1617000230 23.75 28.74
No longer available, no replacement
830 1617000177
Protection Sleeve SDS-PLUS
841 1617000163 5.83 7.05
Change-Over Switch
877 2607200231 12.41 15.02
Thermal Conduction Compound
897 3609391500 60.65 73.39
Grease Tube 225 ML
898 3605430009 40.61 49.14
No longer available, no replacement
899 0611217720
