Here you will find all available parts and drawings of the 'Bosch 0611217703 (GBH12VRE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

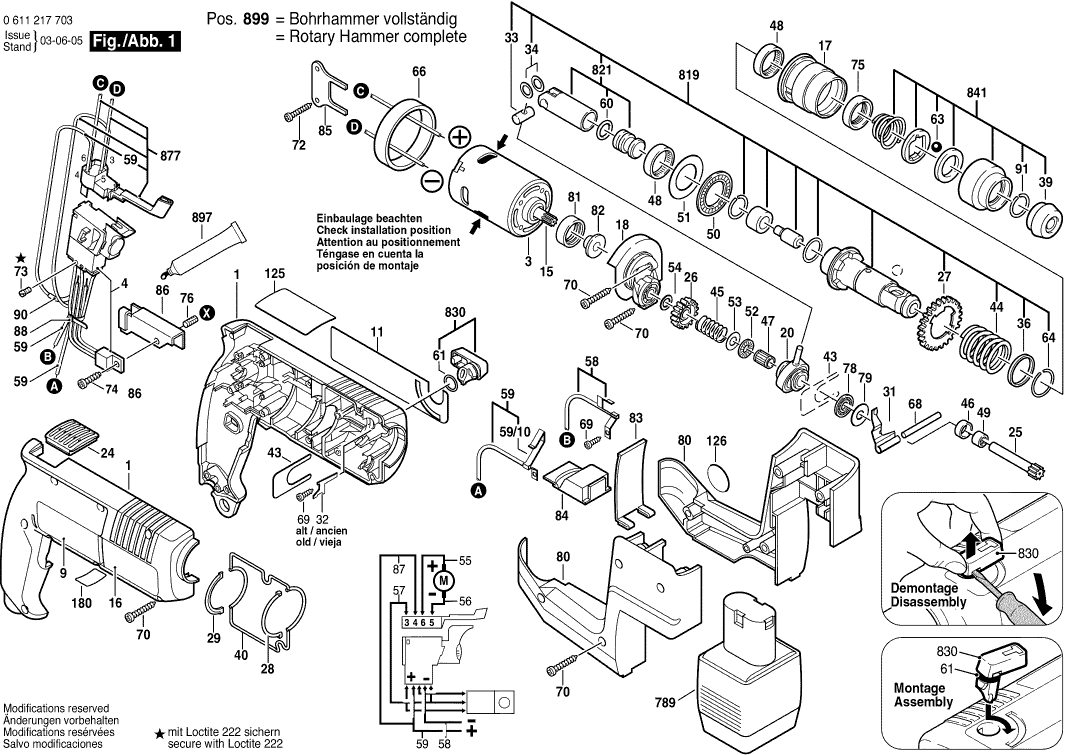

Technical drawing of model Bosch 0611217703 (GBH12VRE)
Spare parts list of model Bosch 0611217703 (GBH12VRE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1615104005 | 23.90 | 28.92 | |
| DC motor | ||||
| 3 | 1617220011 | 88.83 | 107.48 | |
| On-Off Switch | ||||
| 4 | 2607200269 | 89.25 | 107.99 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110543 | 2.38 | 2.88 | |
| Manufacturer's nameplate | ||||
| 11 | 1611110544 | 2.38 | 2.88 | |
| Drive pinion | ||||
| 15 | 1616333024 | 5.81 | 7.03 | |
| Reference Plate | ||||
| 16 | 1611110539 | 2.38 | 2.88 | |
| Guide Sleeve | ||||
| 17 | 1615819013 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 18 | 1615700027 | |||
| Drive bearing | ||||
| 20 | 1615819012 | 31.42 | 38.02 | |
| Protective Grille | ||||
| 24 | 1612388019 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 25 | 1613160008 | 18.94 | 22.92 | |
| Cylindrical Gear | ||||
| 26 | 1616317600 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 27 | 1616317034 | |||
| No longer available, no replacement | ||||
| 28 | 1611015034 | |||
| No longer available, no replacement | ||||
| 29 | 1611015035 | |||
| Pressure Lever | ||||
| 31 | 1611329009 | 2.86 | 3.46 | |
| Piston Pin | ||||
| 33 | 1613103006 | 2.86 | 3.46 | |
| Shim washer | ||||
| 34 | 1610100608 | 1.49 | 1.80 | |
| Supporting Disc | ||||
| 36 | 1610102024 | 1.49 | 1.80 | |
| Protective Cap | ||||
| 39 | 1610508008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 40 | 1611015033 | |||
| Holding Plate | ||||
| 43 | 1611031005 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 44 | 1614634002 | |||
| Compression Spring | ||||
| 45 | 1614610005 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 46 | 1610200014 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 47 | 1610913008 | 4.18 | 5.06 | |
| Needle bearing | ||||
| 48 | 1610910071 | 6.73 | 8.14 | |
| Needle-Roller Bearing | ||||
| 49 | 2600917003 | 2.86 | 3.46 | |
| Roller-Cage Assembly | ||||
| 50 | 1610920002 | 3.44 | 4.16 | |
| Support Disc | ||||
| 51 | 1610102617 | 2.08 | 2.52 | |
| Thrust Needle Rim | ||||
| 52 | 1610920005 | 2.86 | 3.46 | |
| Support Disc | ||||
| 53 | 1610100602 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100604 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100606 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100607 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 58 | 1614449007 | |||
| No longer available, no replacement | ||||
| 59 | 1614449009 | |||
| Contact Spring | ||||
| 59/10 | 1611290002 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 60 | 1610210086 | |||
| O-Ring | ||||
| 61 | 1610210046 | 2.08 | 2.52 | |
| Ball | ||||
| 63 | 1903230013 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 64 | 1614601007 | |||
| Rubber Ring | ||||
| 66 | 1610206025 | 2.86 | 3.46 | |
| Straight Pin | ||||
| 68 | 2917550133 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 69 | 2912401005 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 70 | 2912401022 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 72 | 2912401019 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 73 | 2603410001 | 1.49 | 1.80 | |
| Oval-Head Screw | ||||
| 74 | 2912451050 | 0.83 | 1.00 | |
| Rotary shaft lip seal | ||||
| 75 | 1610283021 | 6.73 | 8.14 | |
| Expansion Bushing | ||||
| 76 | 1610390020 | 1.24 | 1.50 | |
| Roller-Cage Assembly | ||||
| 78 | 1610920006 | 2.86 | 3.46 | |
| Support Disc | ||||
| 79 | 1610100609 | 1.49 | 1.80 | |
| Additional Housing | ||||
| 80 | 1615190031 | 14.94 | 18.08 | |
| Locating ring | ||||
| 81 | 1610290017 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 82 | 1610516011 | 1.49 | 1.80 | |
| Holding Spring | ||||
| 83 | 1611290003 | 4.18 | 5.06 | |
| Push-Button | ||||
| 84 | 1612026034 | 2.40 | 2.90 | |
| Guiding Plate | ||||
| 85 | 1611098003 | 1.49 | 1.80 | |
| Cooling Sheet | ||||
| 86 | 1611329013 | 6.96 | 8.42 | |
| Connecting Cable | ||||
| 87 | 1614430028 | 2.87 | 3.47 | |
| Holding Belt | ||||
| 88 | 2601398007 | 1.24 | 1.50 | |
| Shrinkable Tube | ||||
| 90 | 2600409018 | 1.24 | 1.50 | |
| Retaining ring | ||||
| 91 | 160460102S | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 120 | 160202507H | 10.90 | 13.19 | |
| Support clamp | ||||
| 121 | 1618040048 | 8.35 | 10.10 | |
| T-Head Bolt | ||||
| 122 | 1613490002 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 123 | 1611316006 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 125 | 1611110345 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 126 | 2601110461 | |||
| Drill Chuck Shank | ||||
| 700 | 1617000132 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 700/20 | 2603421226 | 1.49 | 1.80 | |
| Key Chuck | ||||
| 701 | 1608571062 | 1.00 | 1.21 | |
| Chuck Wrench | ||||
| 701/7 | 2607950007 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 702 | 1617000133 | |||
| Retaining ring | ||||
| 702/10/2 | 2604601004 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 703 | 1615439003 | |||
| Rubber Bushing | ||||
| 703/30 | 1610312001 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 703/651 | 1610312002 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 720 | 1612025032 | 1.00 | 1.21 | |
| Parts Set | ||||
| 720/800 | 1617000925 | 14.94 | 18.08 | |
| Carrying Case | ||||
| 750 | 1615438188 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 752 | 1613001009 | 3.44 | 4.16 | |
| Rotary hammer bit | ||||
| 753 | 1618596166 | 1.00 | 1.21 | |
| Fast Charger | ||||
| 760 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224431 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224711 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 760 | 2607224427 | 110.30 | 133.46 | |
| Fast Charger | ||||
| 760 | 2607224443 | 98.18 | 118.80 | |
| Chisel Attachment | ||||
| 777 | 2607018296 | 1.00 | 1.21 | |
| Angle Drill Head | ||||
| 778 | 1618580000 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 789 | 2607335010 | |||
| Ratchet Sleeve | ||||
| 819 | 1617000940 | 122.80 | 148.59 | |
| Parts Set | ||||
| 821 | 1617000230 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 830 | 1617000177 | |||
| Protection Sleeve | ||||
| 841 | 1617000163 | 7.46 | 9.03 | |
| Change-Over Switch | ||||
| 877 | 2607200231 | 14.94 | 18.08 | |
| Thermal Conduction Compou | ||||
| 897 | 3609391500 | 65.16 | 78.84 | |
| Grease Tube | ||||
| 898 | 3605430009 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 899 | 0611217720 | |||
