Here you will find all available parts and drawings of the 'Bosch 3611B66100 ( GBH12-52D )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

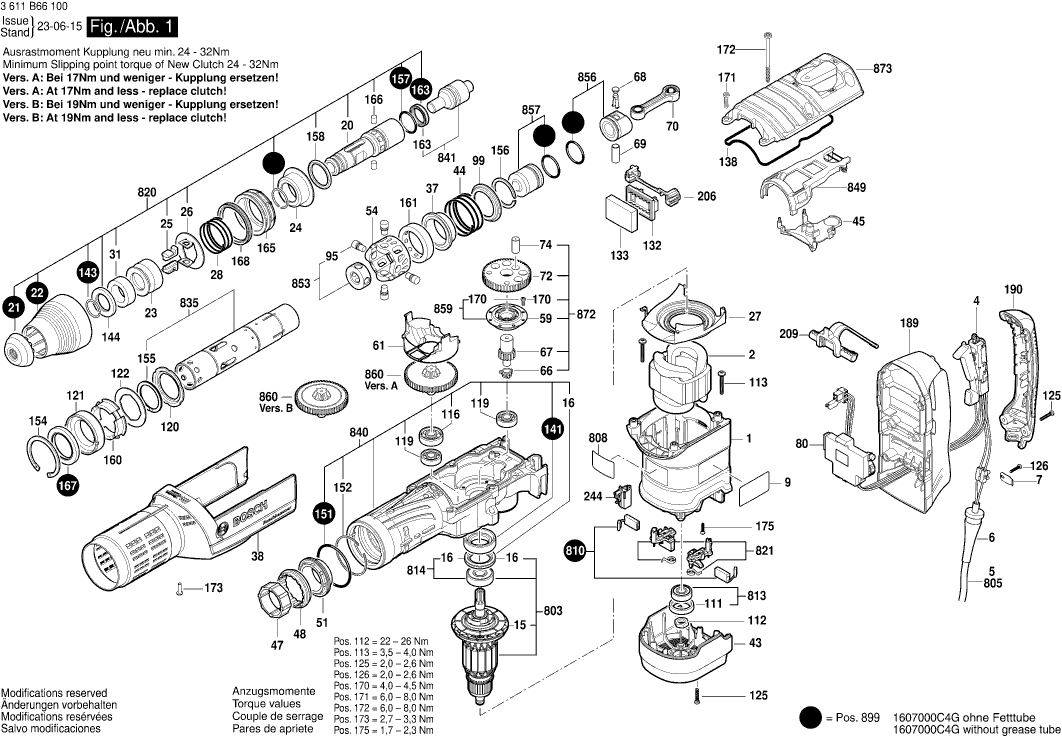

Technical drawing of model Bosch 3611B66100 ( GBH12-52D )

Spare parts list of model Bosch 3611B66100 ( GBH12-52D )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1615108172 33.45 40.47
Field 230V
2 160422023P 73.72 89.20
Switch
4 1617200130 33.45 40.47
Grommet Ø9,7-Ø12x89 MM
6 1610703053 1.94 2.35
Fastening Clamp
7 1601302018 1.18 1.43
Manufacturer's nameplate
9 160111A48B 4.10 4.96
Fan
15 1616610114 9.53 11.53
Clamp ring
16 1600A0015D 1.94 2.35
Toolholder
20 1618597105 130.32 157.69
Protective Cap
21 1600A001XC 4.10 4.96
Protection Sleeve
22 1610591054 6.54 7.91
Stop Sleeve
23 1610520007 9.53 11.53
Headed Bush
24 1610500026 4.70 5.69
Stopping Device
25 1612300025 6.54 7.91
Indexing Disk
26 1610290027 2.71 3.28
Air-Deflector Ring
27 1600591056 2.24 2.71
Compression Spring
28 1614621017 2.71 3.28
Damping Ring
31 1610290123 2.71 3.28
Control Bushing
37 1610322019 5.33 6.45
Covering hood
38 1600A004BM 23.75 28.74
Brush-Cover
43 1615500447 8.45 10.22
Compression Spring
44 1614621016 2.71 3.28
Holding-Down-Appliance
45 1610591053 1.70 2.06
Gear Sleeve
47 1610300082 5.83 7.05
Clutch Sleeve
48 1619990179 7.58 9.17
Crown Gear
51 1616333053 81.47 98.58
Spacer Tube
54 1600A00218 3.31 4.01
Bearing Pedestal
59 1615805079 9.53 11.53
Grease Distributor
61 1600A0015E 3.31 4.01
Rubber Ring
66 1600210246 1.70 2.06
Eccentric Shaft
67 1600A000XS 12.41 15.02
Pickup Clip
68 1600A0015F 0.83 1.00
Piston Pin
69 1613100040 1.70 2.06
Connecting Rod
70 1600A001Y6 18.19 22.01
Eccentric Cog Wheel
72 1616317622 23.75 28.74
Eccentric Bolt
74 1600A000XT 4.10 4.96
Speed governor
80 1607233461 81.47 98.58
Auxiliary Handle
84 160202507H 8.45 10.22
Support clamp
85 1618040097 6.54 7.91
Clamping Band
87 1611316038 6.54 7.91
Driving Pin
95 1613120025 4.10 4.96
Supporting Disc
99 1600A005BD 5.83 7.05
Bushing
111 1615801027 4.10 4.96
Hex Nut
112 1613300009 1.70 2.06
Torx Oval-Head Screw
113 160343507A 0.83 1.00
groove ball bearing 12x37x12
116 1600905035 7.58 9.17
groove ball bearing
119 1600900041 4.10 4.96
Spacer bushing
120 1610190078 4.70 5.69
Plain bearing
121 1615805080 11.88 14.37
Spacer Ring
122 1610290122 2.24 2.71
Torx Oval-Head Screw
125 1613435040 0.83 1.00
Torx Oval-Head Screw 4x20
126 2603490023 0.83 1.00
Cover
132 160550044M 1.18 1.43
Felt
133 1610205016 1.70 2.06
Sealing Frame
138 1611015065 4.10 4.96
Shaft Seal
141 1610290119 3.31 4.01
Retaining ring
143 1614601071 0.83 1.00
Supporting Disc
144 1610101023 2.71 3.28
O-Ring
151 1610210236 0.83 1.00
Retaining ring
152 1614601022 1.94 2.35
Retaining ring DIN 7993-A32
153 2916540018 2.71 3.28
Spring retaining ring DIN 472-68x2,5MM
154 2916660040 1.70 2.06
Spring retaining ring
155 1614601080 1.18 1.43
Spring retaining ring
156 160015001V 2.24 2.71
O-Ring
157 1610210238 0.83 1.00
Rubber Ring
158 1610210239 1.18 1.43
Damping Ring
160 1610210240 2.24 2.71
Damping Ring
161 1610210241 10.73 12.98
O-Ring
162 1610210237 2.24 2.71
Seal Ring
163 1610210242 10.73 12.98
Seal Fastener
165 1600A000XU 1.94 2.35
Cylindrical Roller
166 1613200022 1.18 1.43
Rotary shaft lip seal
167 1610290124 7.58 9.17
Seal Ring
168 1600A001XD 2.24 2.71
Torx Socket Button Screw
170 1600A0015H 0.83 1.00
Torx socket button screw
171 1613414026 1.70 2.06
Torx Oval-Head Screw
172 1613435041 1.18 1.43
Torx Oval-Head Screw M5x20
173 1613490024 1.18 1.43
Torx Oval-Head Screw
175 160343507D 0.83 1.00
Handle
189 161513213B 20.42 24.71
Handle Cover
190 1615500438 12.41 15.02
Retaining Part
206 1612386007 1.18 1.43
Control Lever
209 1600A002ST 2.71 3.28
Plug Housing
244 1600A0013J 0.83 1.00
Carrying Case
691 1615438705 46.67 56.47
Armature assembly 230V
803 1607000C3Y 233.78 282.87
Nameplate
808 160111A3H5 1.94 2.35
Carbon-Brush Set
810 1607000C3Z 20.42 24.71
groove ball bearing
813 1607000C40 20.42 24.71
groove ball bearing
814 1607000C41 26.84 32.48
Tool Holder Set
820 1607000C42 209.26 253.20
Brush Holder
821 1607000C5H 15.71 19.01
Hammer Pipe
835 1607000C43 148.65 179.87
Impact Mechanism Housing
840 1607000C44 233.78 282.87
Striker Pin
841 1607000C45 49.56 59.97
Control Fork
849 1607000C46 10.73 12.98
Guide Bushing
853 1607000C47 44.82 54.23
Hammer Piston
856 1607000C48 26.84 32.48
Striker
857 1607000C49 36.85 44.59
Bearing Pedestal
859 1607000C4A 29.75 36.00
Spur Wheel Clutch
860 1607000C4B 130.32 157.69
Eccentric
872 1607000C4C 91.56 110.79
Housing Cover
873 1607000C4D 49.56 59.97
Auxiliary Handle
884 1607000C4E 33.45 40.47
Service package
899 1607000C4G 67.25 81.37
