Here you will find all available parts and drawings of the 'Bosch 3601B7A100 (GBG8)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

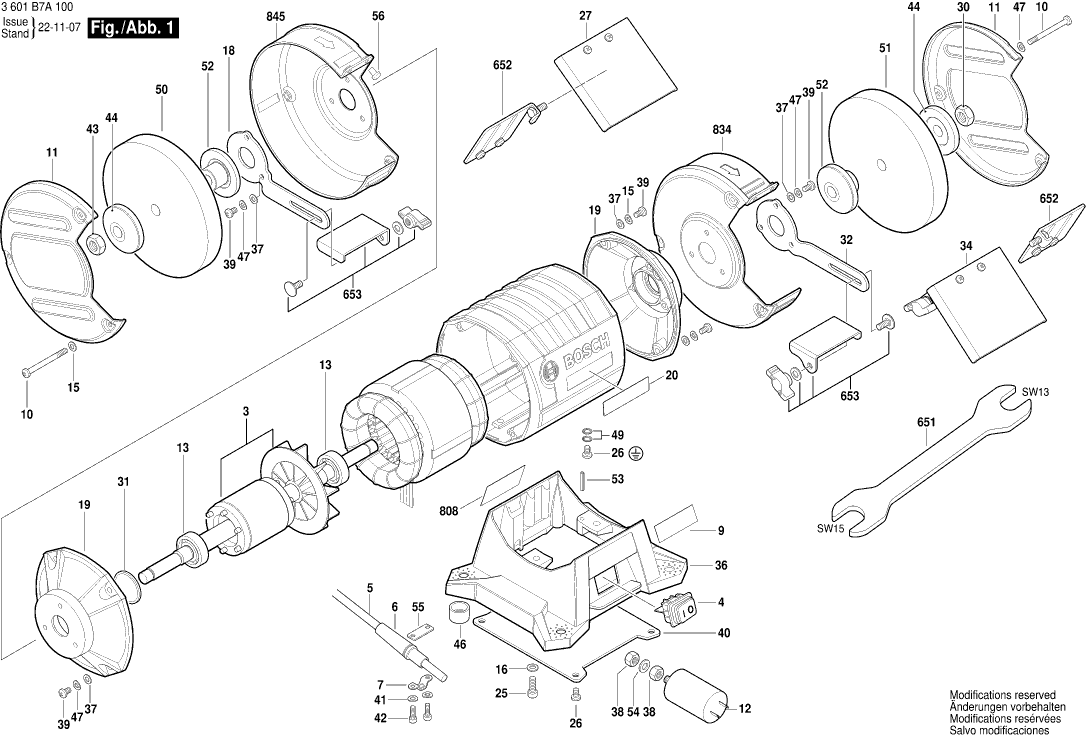

Technical drawing of model Bosch 3601B7A100 (GBG8)
Spare parts list of model Bosch 3601B7A100 (GBG8)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotor | ||||
| 3 | 1619PA4776 | 47.53 | 57.51 | |
| Switch | ||||
| 4 | 1619PA1962 | 23.90 | 28.92 | |
| Power supply cord | ||||
| 5 | 1619PA2244 | 43.12 | 52.18 | |
| Grommet | ||||
| 6 | 1619PA2101 | 1.00 | 1.21 | |
| Fastening Clamp | ||||
| 7 | 1619PA2102 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PA2232 | 2.40 | 2.90 | |
| Screw | ||||
| 10 | 1619PA2103 | 1.00 | 1.21 | |
| Lateral Guard | ||||
| 11 | 1619PA2146 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 12 | 1619PA2147 | |||
| groove ball bearing | ||||
| 13 | 1619PA2148 | 12.82 | 15.51 | |
| Spring Washer | ||||
| 15 | 1619PA2108 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 16 | 1619PA2109 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 18 | 1619PA2149 | |||
| End Shield | ||||
| 19 | 1619PA2150 | 21.30 | 25.77 | |
| Warning Label | ||||
| 20 | 1619PA2235 | 2.40 | 2.90 | |
| Screw | ||||
| 25 | 1619PA2117 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 26 | 1619PA2118 | 1.00 | 1.21 | |
| Protective Glass | ||||
| 27 | 1619PB1523 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 30 | 1619PA2122 | |||
| Corrugated Washer | ||||
| 31 | 1619PA2151 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 32 | 1619PA2152 | |||
| Protective Glass | ||||
| 34 | 1619PB1532 | 2.86 | 3.46 | |
| Base Plate | ||||
| 36 | 1619PA2154 | 31.42 | 38.02 | |
| Plain Washer | ||||
| 37 | 1619PA2129 | 1.00 | 1.21 | |
| Hex thin nut | ||||
| 38 | 1619PA2568 | 1.00 | 1.21 | |
| Screw | ||||
| 39 | 1619PA2131 | 1.00 | 1.21 | |
| Base Plate | ||||
| 40 | 1619PA2155 | 3.44 | 4.16 | |
| Spring Washer | ||||
| 41 | 1619PA2133 | 1.00 | 1.21 | |
| Screw | ||||
| 42 | 1619PA2134 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 43 | 1619PA2135 | |||
| Clamping Flange | ||||
| 44 | 1619PA2156 | 12.82 | 15.51 | |
| Rubber Base | ||||
| 46 | 1619PA2138 | 2.08 | 2.52 | |
| Spring Washer | ||||
| 47 | 1619PA2139 | 1.00 | 1.21 | |
| Toothed lock washer | ||||
| 49 | 1619PA2141 | 1.00 | 1.21 | |
| Grinding Wheel | ||||
| 50 | 1619PA1960 | 27.81 | 33.65 | |
| Grinding Wheel | ||||
| 51 | 1619PA1961 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 52 | 1619PA2158 | |||
| Spring Pin | ||||
| 53 | 1619PA2143 | 1.00 | 1.21 | |
| Toothed lock washer | ||||
| 54 | 1619PA2144 | 1.00 | 1.21 | |
| Support Plate | ||||
| 55 | 1619PA2322 | 1.00 | 1.21 | |
| Blind Rivet Nut | ||||
| 56 | 1619PA2571 | 1.00 | 1.21 | |
| Assembly Wrench | ||||
| 651 | 1619PA4770 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 652 | 1619PA2254 | |||
| Support Plate | ||||
| 653 | 1619PA2255 | 5.81 | 7.03 | |
| Protective Glass | ||||
| 654 | 1619PB1523 | 2.86 | 3.46 | |
| Nameplate | ||||
| 808 | 1619PA2198 | 2.40 | 2.90 | |
| Protective Cover | ||||
| 834 | 1619PA2585 | 27.81 | 33.65 | |
| Protective Cover | ||||
| 845 | 1619PA2586 | 27.81 | 33.65 | |
