Here you will find all available parts and drawings of the 'Bosch 3601B7A400 (GBG60-20)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

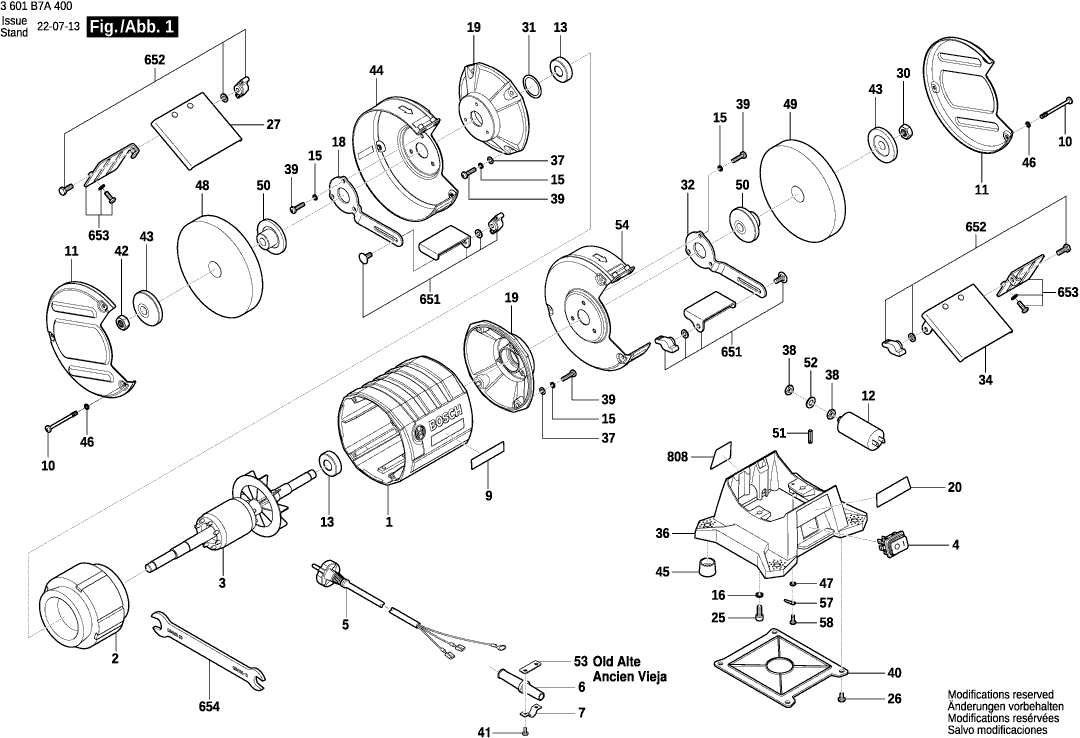

Technical drawing of model Bosch 3601B7A400 (GBG60-20)
Spare parts list of model Bosch 3601B7A400 (GBG60-20)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB1467 | 27.81 | 33.65 | |
| Field assembly | ||||
| 2 | 1619PB1469 | 122.80 | 148.59 | |
| Armature | ||||
| 3 | 1619PB1471 | 47.53 | 57.51 | |
| Switch | ||||
| 4 | 1619PB1472 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 5 | 1619PB1478 | 18.94 | 22.92 | |
| No information available, not orderable | ||||
| 6 | 1619PB1480 | |||
| Clip | ||||
| 7 | 1619PB1481 | 1.00 | 1.21 | |
| Manufacturer's nameplate GBG60-20 | ||||
| 9 | 1619PB1499 | 2.40 | 2.90 | |
| Screw | ||||
| 10 | 1619PB1501 | 1.00 | 1.21 | |
| Lateral Guard | ||||
| 11 | 1619PB1503 | 16.79 | 20.32 | |
| Suppression Capacitor | ||||
| 12 | 1619PB1505 | 9.67 | 11.70 | |
| groove ball bearing | ||||
| 13 | 1619PB1507 | 5.81 | 7.03 | |
| Spring Washer | ||||
| 15 | 1619PB1508 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 16 | 1619PB1509 | |||
| Support Plate | ||||
| 18 | 1619PB1512 | 4.18 | 5.06 | |
| End Shield | ||||
| 19 | 1619PB1514 | 18.94 | 22.92 | |
| Warning Label | ||||
| 20 | 1619PB1516 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 25 | 1619PB1521 | |||
| Pan head screw | ||||
| 26 | 1619PB1522 | 1.00 | 1.21 | |
| Protective Glass | ||||
| 27 | 1619PB1523 | 2.86 | 3.46 | |
| Hex Nut | ||||
| 30 | 1619PB1526 | 1.00 | 1.21 | |
| Corrugated Washer | ||||
| 31 | 1619PB1528 | 1.00 | 1.21 | |
| Support Plate | ||||
| 32 | 1619PB1530 | 3.44 | 4.16 | |
| Protective Glass | ||||
| 34 | 1619PB1532 | 2.86 | 3.46 | |
| Base | ||||
| 36 | 1619PB1535 | 21.30 | 25.77 | |
| Plain Washer | ||||
| 37 | 1619PB1536 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 38 | 1619PB1537 | |||
| Screw | ||||
| 39 | 1619PB1538 | 1.00 | 1.21 | |
| Base Plate | ||||
| 40 | 1619PB1540 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 41 | 1619PB1541 | |||
| Hex Nut | ||||
| 42 | 1619PB1542 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 43 | 1619PB1544 | 9.67 | 11.70 | |
| Protective Cover | ||||
| 44 | 1619PB1546 | 14.94 | 18.08 | |
| Supporting foot | ||||
| 45 | 1619PB1547 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 46 | 1619PB1548 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 47 | 1619PB1549 | |||
| Grinding Wheel 200mm 24# | ||||
| 48 | 1619PB1447 | 27.81 | 33.65 | |
| Grinding Wheel 200mm 60# | ||||
| 49 | 1619PB1449 | 27.81 | 33.65 | |
| Clamping Flange | ||||
| 50 | 1619PB1551 | 12.82 | 15.51 | |
| Terminal Screw | ||||
| 51 | 1619PB1552 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 52 | 1619PB1553 | |||
| No information available, not orderable | ||||
| 53 | 1619PB1554 | |||
| Protective Cover | ||||
| 54 | 1619PB1556 | 16.79 | 20.32 | |
| Spring Washer | ||||
| 57 | 1619PB1668 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 58 | 1619PB1780 | 1.00 | 1.21 | |
| Support Plate | ||||
| 651 | 1619PB1781 | 10.90 | 13.19 | |
| Screw | ||||
| 652 | 1619PB1782 | 2.86 | 3.46 | |
| Guard Plate | ||||
| 653 | 1619PB1783 | 5.81 | 7.03 | |
| Assembly Wrench | ||||
| 654 | 1619PB1581 | 2.40 | 2.90 | |
| Nameplate | ||||
| 808 | 1619PB2029 | 2.40 | 2.90 | |
