Here you will find all available parts and drawings of the 'Bosch 3601B7A300 (GBG35-15)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

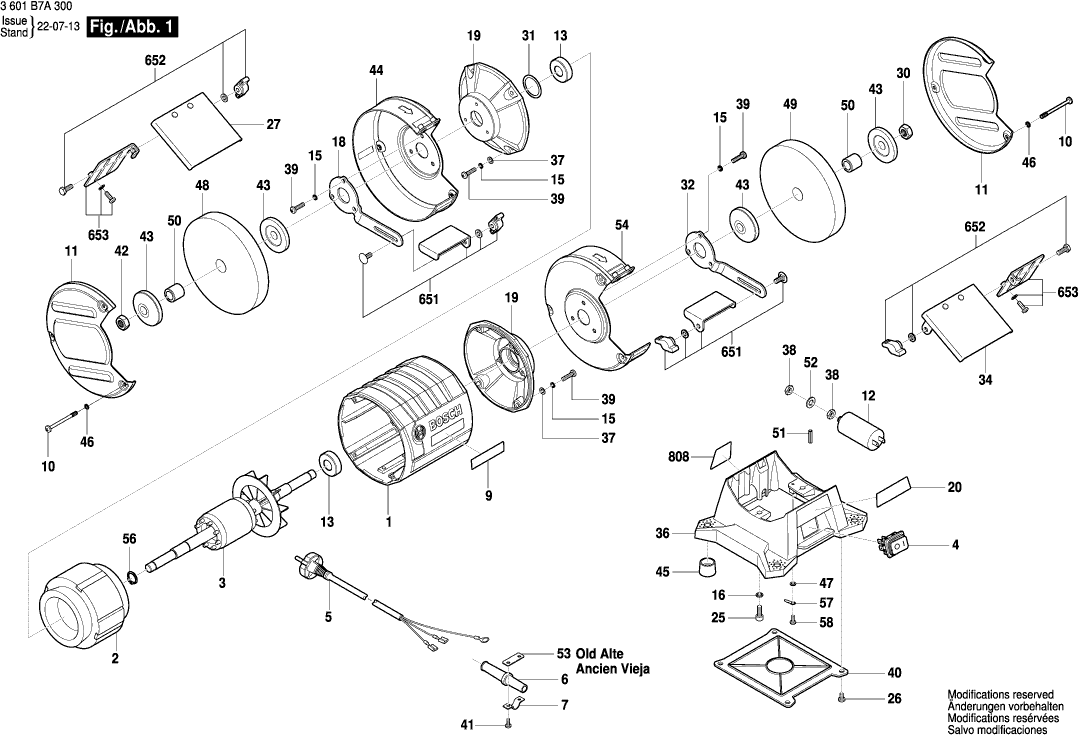

Technical drawing of model Bosch 3601B7A300 (GBG35-15)
Spare parts list of model Bosch 3601B7A300 (GBG35-15)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB1466 | 23.90 | 28.92 | |
| Field assembly | ||||
| 2 | 1619PB1468 | 58.03 | 70.22 | |
| Armature | ||||
| 3 | 1619PB1470 | 23.90 | 28.92 | |
| Switch | ||||
| 4 | 1619PB1472 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 5 | 1619PB1478 | 18.94 | 22.92 | |
| Grommet | ||||
| 6 | 1619PB1480 | 1.49 | 1.80 | |
| Clip | ||||
| 7 | 1619PB1481 | 1.00 | 1.21 | |
| Manufacturer's nameplate GBG 35-15 | ||||
| 9 | 1619PB1498 | 2.40 | 2.90 | |
| Screw | ||||
| 10 | 1619PB1500 | 1.00 | 1.21 | |
| Lateral Guard | ||||
| 11 | 1619PB1502 | 10.90 | 13.19 | |
| Suppression Capacitor | ||||
| 12 | 1619PB1504 | 9.67 | 11.70 | |
| groove ball bearing | ||||
| 13 | 1619PB1506 | 6.73 | 8.14 | |
| Spring Washer | ||||
| 15 | 1619PB1508 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 16 | 1619PB1509 | 1.00 | 1.21 | |
| Support Plate | ||||
| 18 | 1619PB1511 | 3.44 | 4.16 | |
| End Shield | ||||
| 19 | 1619PB1513 | 14.94 | 18.08 | |
| Warning Label | ||||
| 20 | 1619PB1515 | 2.40 | 2.90 | |
| Screw | ||||
| 25 | 1619PB1521 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 26 | 1619PB1522 | 1.00 | 1.21 | |
| Protective Glass | ||||
| 27 | 1619PB1523 | 2.86 | 3.46 | |
| Hex Nut | ||||
| 30 | 1619PB1526 | 1.00 | 1.21 | |
| Corrugated Washer | ||||
| 31 | 1619PB1527 | 1.00 | 1.21 | |
| Support Plate | ||||
| 32 | 1619PB1529 | 3.44 | 4.16 | |
| Protective Glass | ||||
| 34 | 1619PB1532 | 2.86 | 3.46 | |
| Base | ||||
| 36 | 1619PB1534 | 16.79 | 20.32 | |
| Plain Washer | ||||
| 37 | 1619PB1536 | 1.00 | 1.21 | |
| Hex thin nut | ||||
| 38 | 1619PB1537 | 1.00 | 1.21 | |
| Screw | ||||
| 39 | 1619PB1538 | 1.00 | 1.21 | |
| Base Plate | ||||
| 40 | 1619PB1539 | 2.08 | 2.52 | |
| Pan head screw | ||||
| 41 | 1619PB1541 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 42 | 1619PB1542 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 43 | 1619PB1543 | 5.81 | 7.03 | |
| Protective Cover | ||||
| 44 | 1619PB1545 | 11.37 | 13.76 | |
| Supporting foot | ||||
| 45 | 1619PB1547 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 46 | 1619PB1548 | 1.00 | 1.21 | |
| Toothed lock washer | ||||
| 47 | 1619PB1549 | 1.00 | 1.21 | |
| Grinding Wheel 150 mm 24# | ||||
| 48 | 1619PB1446 | 10.90 | 13.19 | |
| Grinding Wheel 150 mm 60# | ||||
| 49 | 1619PB1448 | 10.90 | 13.19 | |
| Reduction Sleeve | ||||
| 50 | 1619PB1550 | 1.49 | 1.80 | |
| Terminal Screw | ||||
| 51 | 1619PB1552 | 1.00 | 1.21 | |
| Toothed lock washer | ||||
| 52 | 1619PB1553 | 1.00 | 1.21 | |
| Support Plate | ||||
| 53 | 1619PB1554 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 54 | 1619PB1555 | 11.37 | 13.76 | |
| Spacer Ring | ||||
| 56 | 1619PB1558 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 57 | 1619PB1668 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 58 | 1619PB1780 | 1.00 | 1.21 | |
| Support Plate | ||||
| 651 | 1619PB1781 | 10.90 | 13.19 | |
| Screw | ||||
| 652 | 1619PB1782 | 2.86 | 3.46 | |
| Guard Plate | ||||
| 653 | 1619PB1783 | 5.81 | 7.03 | |
| Nameplate | ||||
| 808 | 1619PB2021 | 2.40 | 2.90 | |
