Here you will find all available parts and drawings of the 'Bosch 3601JS70K0 (GBC18V-32PS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

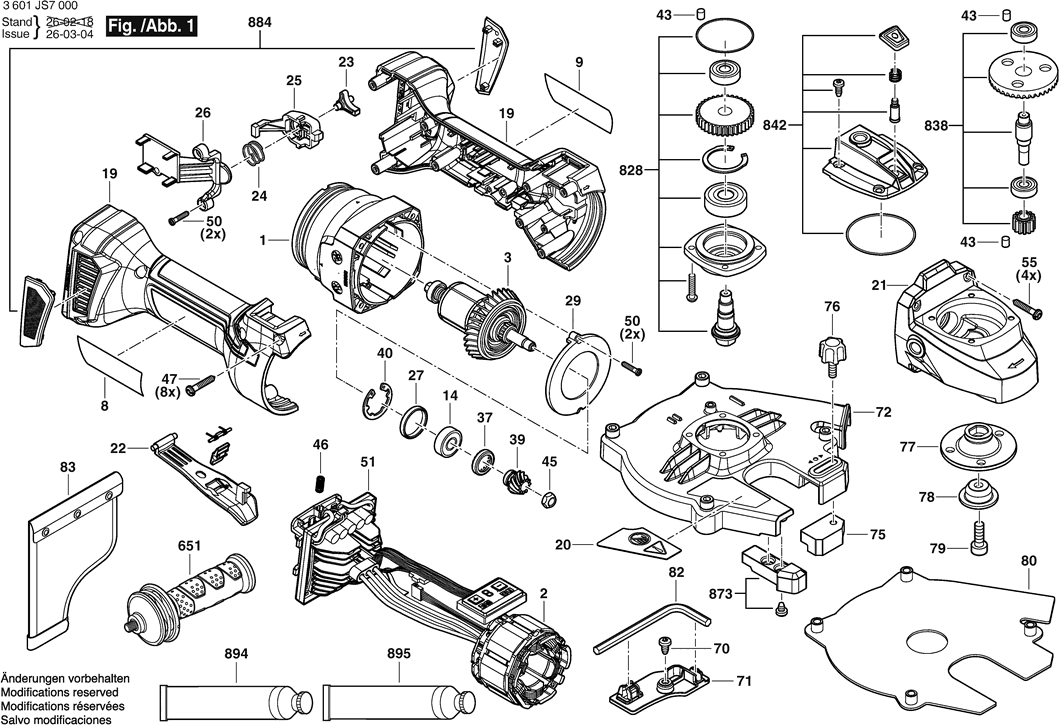

Technical drawing of model Bosch 3601JS70K0 (GBC18V-32PS)
Spare parts list of model Bosch 3601JS70K0 (GBC18V-32PS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1619PS7332 | |||
| Stator | ||||
| 2 | 1619PS4937 | 43.12 | 52.18 | |
| Rotor | ||||
| 3 | 1619PS1139 | 23.90 | 28.92 | |
| No information available, not orderable | ||||
| 8 | 1619PS7336 | |||
| No information available, not orderable | ||||
| 9 | 1619PS7337 | |||
| groove ball bearing | ||||
| 14 | 1619P09955 | 5.81 | 7.03 | |
| Handle | ||||
| 19 | 1619PS4940 | 21.30 | 25.77 | |
| No information available, not orderable | ||||
| 20 | 1619PS7338 | |||
| No information available, not orderable | ||||
| 21 | 1619PS7339 | |||
| Switch-Pawl | ||||
| 22 | 1619PS4941 | 3.44 | 4.16 | |
| Reverse-Transfer Lever | ||||
| 23 | 1619PS4942 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 24 | 1604611032 | 1.49 | 1.80 | |
| Button | ||||
| 25 | 1619PS4943 | 2.86 | 3.46 | |
| Support Plate | ||||
| 26 | 1619PS4944 | 4.18 | 5.06 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619PS4945 | 4.18 | 5.06 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 39 | 1619PS7650 | |||
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 43 | 2603100056 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Screw | ||||
| 47 | 1619P00106 | 1.00 | 1.21 | |
| Torx Flat-Head Screw | ||||
| 50 | 2609110201 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 51 | 1619PS7340 | |||
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 70 | 2914492405 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 71 | 1619PS7341 | |||
| No information available, not orderable | ||||
| 72 | 1619PS7342 | |||
| No information available, not orderable | ||||
| 75 | 1619PS7343 | |||
| No information available, not orderable | ||||
| 76 | 1619PS7344 | |||
| No information available, not orderable | ||||
| 77 | 1619PS7345 | |||
| No information available, not orderable | ||||
| 78 | 1619PS7346 | |||
| No information available, not orderable | ||||
| 79 | 1619PS7347 | |||
| No information available, not orderable | ||||
| 80 | 1619PS7348 | |||
| Offset Screwdriver | ||||
| 82 | 1619P14506 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 83 | 1619PS7651 | |||
| Auxiliary Handle | ||||
| 651 | 16020250A0 | 10.90 | 13.19 | |
| No information available, not orderable | ||||
| 828 | 1619PS7349 | |||
| No information available, not orderable | ||||
| 838 | 1619PS7350 | |||
| No information available, not orderable | ||||
| 842 | 1619PS7351 | |||
| No information available, not orderable | ||||
| 873 | 1619PS7352 | |||
| Filter | ||||
| 884 | 1619PS1128 | 3.44 | 4.16 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
