Here you will find all available parts and drawings of the 'Bosch 3601JS7000 ( GBC18V-32PS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

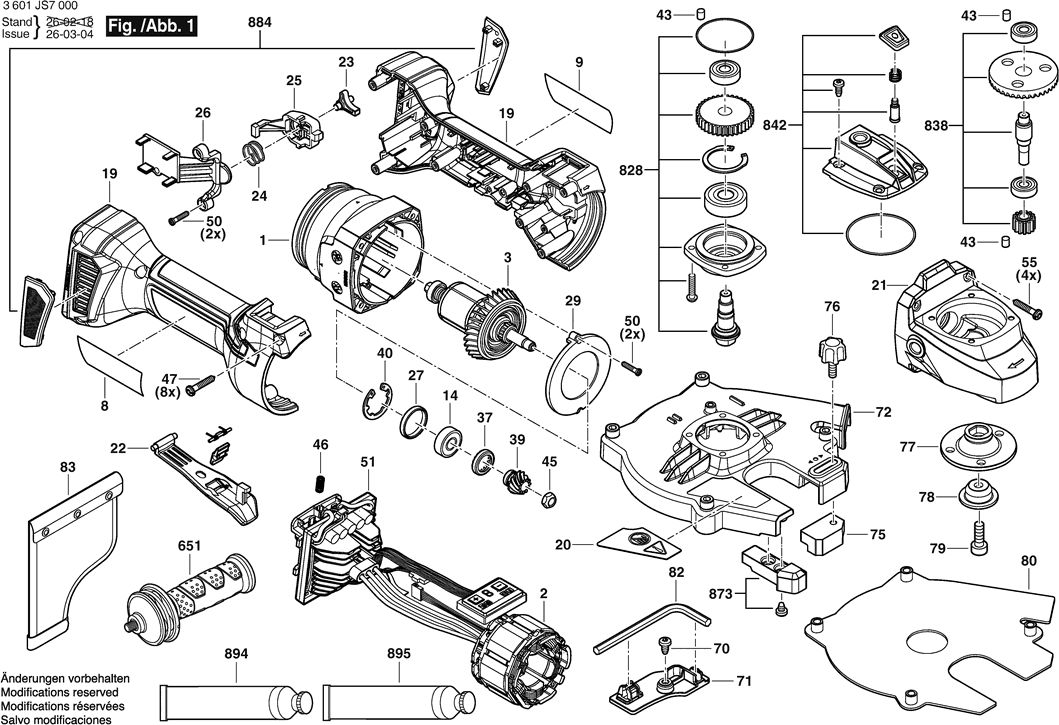

Technical drawing of model Bosch 3601JS7000 ( GBC18V-32PS )
Spare parts list of model Bosch 3601JS7000 ( GBC18V-32PS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PS7332 | 10.90 | 13.19 | |
| Stator | ||||
| 2 | 1619PS4937 | 43.12 | 52.18 | |
| Rotor | ||||
| 3 | 1619PS1139 | 23.90 | 28.92 | |
| Nameplate | ||||
| 8 | 1619PS7333 | 4.18 | 5.06 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PS7337 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 14 | 1619P09955 | 5.81 | 7.03 | |
| Handle | ||||
| 19 | 1619PS4940 | 21.30 | 25.77 | |
| Warning Label | ||||
| 20 | 1619PS7338 | 4.18 | 5.06 | |
| Gear Housing | ||||
| 21 | 1619PS7339 | 21.30 | 25.77 | |
| Switch-Pawl | ||||
| 22 | 1619PS4941 | 3.44 | 4.16 | |
| Reverse-Transfer Lever | ||||
| 23 | 1619PS4942 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 24 | 1604611032 | 1.49 | 1.80 | |
| Button | ||||
| 25 | 1619PS4943 | 2.86 | 3.46 | |
| Support Plate | ||||
| 26 | 1619PS4944 | 4.18 | 5.06 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619PS4945 | 4.18 | 5.06 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Bevel Gear | ||||
| 39 | 1619PS7650 | 10.90 | 13.19 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 43 | 2603100056 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Screw | ||||
| 47 | 1619P00106 | 1.00 | 1.21 | |
| Torx Flat-Head Screw | ||||
| 50 | 2609110201 | 2.08 | 2.52 | |
| Electronic Module | ||||
| 51 | 1619PS7340 | 80.26 | 97.11 | |
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 70 | 2914492405 | 1.00 | 1.21 | |
| Key Holder | ||||
| 71 | 1619PS7341 | 4.94 | 5.98 | |
| Guard | ||||
| 72 | 1619PS7342 | 23.90 | 28.92 | |
| Stopper | ||||
| 75 | 1619PS7343 | 7.46 | 9.03 | |
| Knob | ||||
| 76 | 1619PS7344 | 4.94 | 5.98 | |
| Inner Disc | ||||
| 77 | 1619PS7345 | 10.90 | 13.19 | |
| Locking washer | ||||
| 78 | 1619PS7346 | 9.67 | 11.70 | |
| Locking Bolt | ||||
| 79 | 1619PS7347 | 4.18 | 5.06 | |
| Base Plate | ||||
| 80 | 1619PS7348 | 21.30 | 25.77 | |
| Offset Screwdriver | ||||
| 82 | 1619P14506 | 1.49 | 1.80 | |
| Dust Bag | ||||
| 83 | 1619PS7651 | 34.82 | 42.13 | |
| Auxiliary Handle | ||||
| 651 | 16020250A0 | 10.90 | 13.19 | |
| Bearing Flange | ||||
| 828 | 1619PS7349 | 27.81 | 33.65 | |
| Crown Gear | ||||
| 838 | 1619PS7350 | 27.81 | 33.65 | |
| Gear Cover | ||||
| 842 | 1619PS7351 | 18.94 | 22.92 | |
| Guide Block | ||||
| 873 | 1619PS7352 | 12.82 | 15.51 | |
| Filter | ||||
| 884 | 1619PS1128 | 3.44 | 4.16 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
