Here you will find all available parts and drawings of the 'Bosch 3601J7B001 ( GAS1200L )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

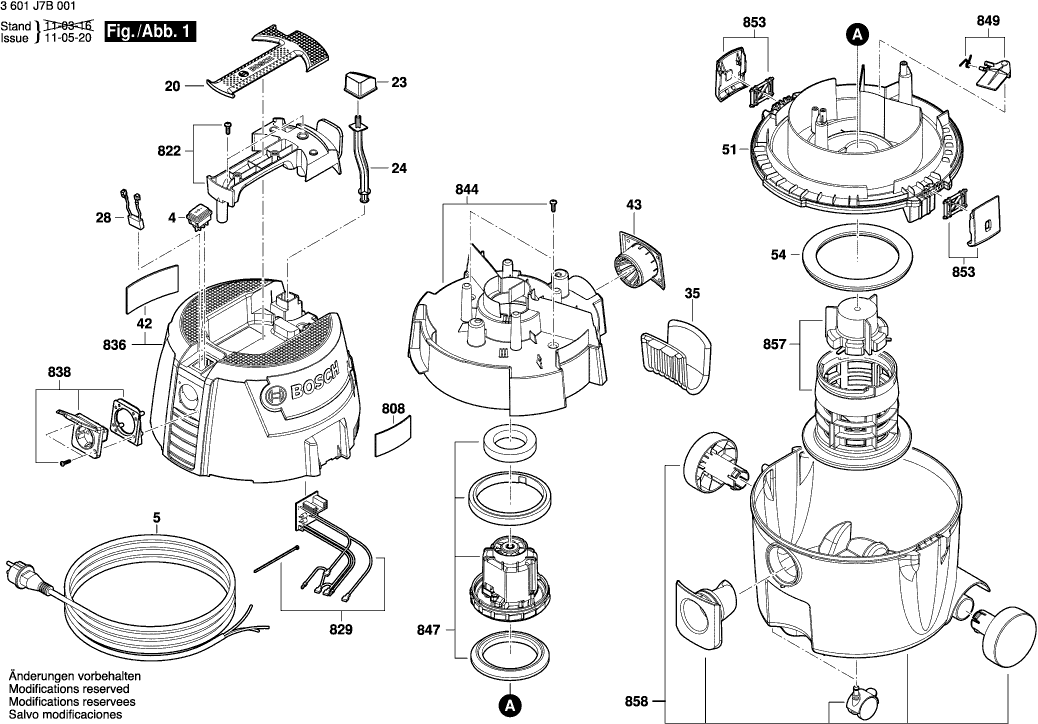

Technical drawing of model Bosch 3601J7B001 ( GAS1200L )
Spare parts list of model Bosch 3601J7B001 ( GAS1200L )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 1600A000LH | 23.75 | 28.74 | |
| Power supply cord EU 230V 1,5 x 5,6m | ||||
| 5 | 1600A000LR | 60.65 | 73.39 | |
| Cap-Handle | ||||
| 20 | 1600A000KJ | 5.33 | 6.45 | |
| Push-Button | ||||
| 23 | 1600A000KS | 1.94 | 2.35 | |
| Thrust Rod | ||||
| 24 | 1600A000KR | 3.31 | 4.01 | |
| Suppression Capacitor | ||||
| 28 | 1600A000LL | 13.93 | 16.86 | |
| Hose Holder | ||||
| 35 | 1600A000KP | 7.58 | 9.17 | |
| Warning Plate | ||||
| 42 | 1600A000MD | 3.31 | 4.01 | |
| Outlet Grillage | ||||
| 43 | 1600A000KL | 3.31 | 4.01 | |
| Base Plate | ||||
| 51 | 1600A000KT | 29.75 | 36.00 | |
| Seal Ring | ||||
| 54 | 1600A000M0 | 5.33 | 6.45 | |
| Air Hose | ||||
| 650 | 1600A000JF | 44.82 | 54.23 | |
| Tool Clutch | ||||
| 654 | 1600A000JM | 15.71 | 19.01 | |
| Cable Clip | ||||
| 658 | 1600A000LK | 0.83 | 1.00 | |
| Nameplate | ||||
| 808 | 1600A000UH | 0.83 | 1.00 | |
| Handle | ||||
| 822 | 1600A000P9 | 10.73 | 12.98 | |
| Printed Circuit Board | ||||
| 829 | 1600A000PA | 55.25 | 66.85 | |
| Covering hood | ||||
| 836 | 1600A000UW | 49.56 | 59.97 | |
| Socket | ||||
| 838 | 1600A000PC | 23.75 | 28.74 | |
| Air Path | ||||
| 844 | 1600A000PD | 18.19 | 22.01 | |
| Suction Blower | ||||
| 847 | 1600A000PE | 168.86 | 204.32 | |
| Flap | ||||
| 849 | 1600A000PF | 5.33 | 6.45 | |
| Flap | ||||
| 853 | 1600A000PG | 4.70 | 5.69 | |
| Filter basket | ||||
| 857 | 1600A000PH | 26.84 | 32.48 | |
| Container | ||||
| 858 | 1600A000PJ | 67.25 | 81.37 | |
