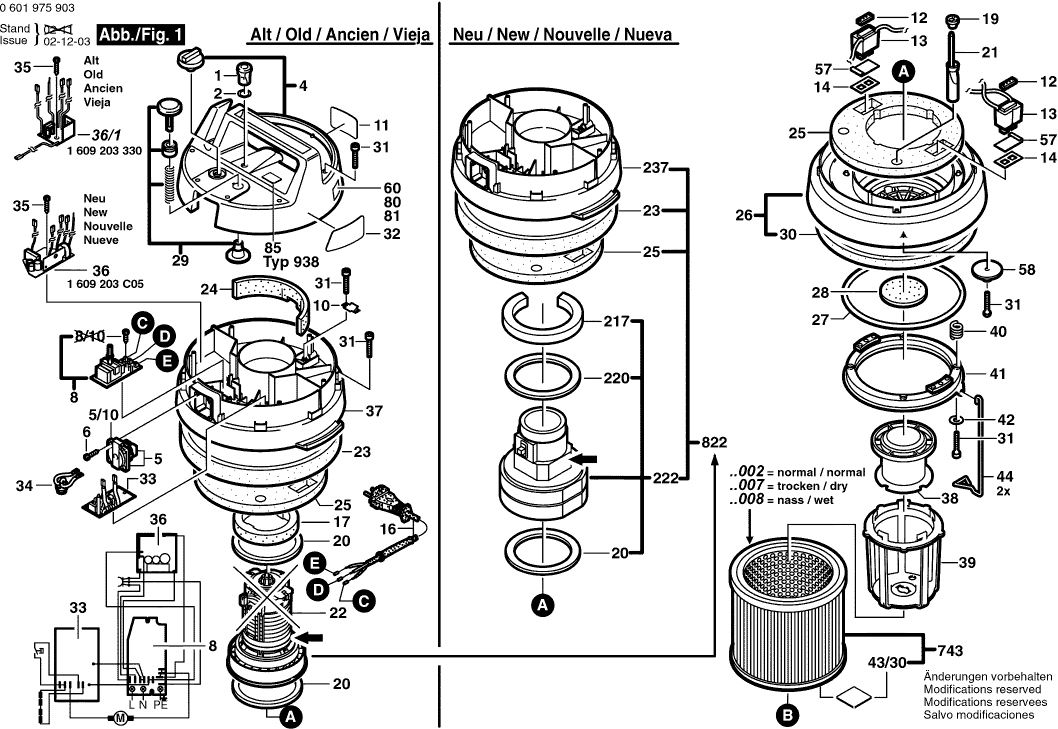

Technical drawing of model Bosch 0601975903 (GAS12-50RF)
Spare parts list of model Bosch 0601975903 (GAS12-50RF)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Indicator Lamp | ||||
| 1 | 1609201654 | 6.73 | 8.14 | |
| Seal Ring | ||||
| 2 | 1609201655 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 4 | 1609203650 | |||
| Socket | ||||
| 5 | 1609200948 | 18.94 | 22.92 | |
| Tapping Screw | ||||
| 6 | 2910601412 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 6 | 2910611015 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 8 | 1609201658 | |||
| No information available, not orderable | ||||
| 10 | 1609202693 | |||
| No information available, not orderable | ||||
| 11 | 1601118193 | |||
| Damping Plate | ||||
| 12 | 1609201660 | 1.49 | 1.80 | |
| Attachment Vibrator | ||||
| 13 | 1609201662 | 110.30 | 133.46 | |
| Sealing disk | ||||
| 14 | 1609201663 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 16 | 1609202714 | |||
| No longer available, no replacement | ||||
| 17 | 1609201666 | |||
| Seal Ring | ||||
| 19 | 1609201668 | 2.08 | 2.52 | |
| Seal Ring | ||||
| 20 | 1609201669 | 5.81 | 7.03 | |
| Guide Sleeve | ||||
| 21 | 1609202573 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 23 | 1609203478 | |||
| No longer available, no replacement | ||||
| 24 | 1609202764 | |||
| No longer available, no replacement | ||||
| 25 | 1609203423 | |||
| No information available, not orderable | ||||
| 26 | 1609203474 | |||
| No longer available, no replacement | ||||
| 27 | 1609201676 | |||
| No longer available, no replacement | ||||
| 28 | 1609201677 | |||
| No information available, not orderable | ||||
| 29 | 1609202716 | |||
| No longer available, no replacement | ||||
| 30 | 1609202765 | |||
| Tapping Screw | ||||
| 31 | 2910611015 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 32 | 1601118194 | |||
| No longer available, no replacement | ||||
| 33 | 1609202717 | |||
| Pressure Switch | ||||
| 34 | 1609203181 | 17.60 | 21.30 | |
| Tapping Screw | ||||
| 35 | 2910611015 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 36 | 1609203C05 | |||
| No longer available, no replacement | ||||
| 37 | 1609202698 | |||
| No longer available, no replacement | ||||
| 38 | 1609200952 | |||
| No longer available, no replacement | ||||
| 39 | 1609201684 | |||
| Compression Spring | ||||
| 40 | 1609201685 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 41 | 1609203182 | |||
| No information available, not orderable | ||||
| 42 | 1609201687 | |||
| Reference Plate | ||||
| 43/30 | 1601110830 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 44 | 1609203417 | |||
| No information available, not orderable | ||||
| 57 | 1609202192 | |||
| No information available, not orderable | ||||
| 58 | 1609203714 | |||
| Reference Plate | ||||
| 60 | 1601118753 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 217 | 1609203B12 | |||
| Seal Ring | ||||
| 220 | 1609203B13 | 5.96 | 7.21 | |
| No information available, not orderable | ||||
| 222 | 1609203Z37 | |||
| No longer available, no replacement | ||||
| 237 | 1609203B15 | |||
| Fitting | ||||
| 650/20 | 1609203V36 | 23.90 | 28.92 | |
| Fitting | ||||
| 650/30 | 1609390580 | 5.27 | 6.38 | |
| No longer available, no replacement | ||||
| 690 | 1609202711 | |||
| Impeller | ||||
| 690/10 | 1609202703 | 5.96 | 7.21 | |
| No information available, not orderable | ||||
| 690/100 | 1609202710 | |||
| Impeller | ||||
| 690/20 | 1609202712 | 30.08 | 36.40 | |
| Plug | ||||
| 690/30 | 1609202727 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 690/40 | 1609202708 | |||
| No information available, not orderable | ||||
| 690/50 | 2910611012 | |||
| Plain Washer | ||||
| 690/60 | 1609202726 | 1.50 | 1.82 | |
| Roller Axle | ||||
| 690/70 | 1609202709 | 13.02 | 15.75 | |
| Tapping Screw | ||||
| 690/80 | 2910611015 | 1.90 | 2.30 | |
| Plain Washer | ||||
| 690/90 | 1609202725 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 743 | 2607432002 | |||
| No information available, not orderable | ||||
| 750 | 2607000837 | |||
| No information available, not orderable | ||||
| 750/1 | 1609202230 | |||
| No information available, not orderable | ||||
| 751 | 2607000164 | |||
| No information available, not orderable | ||||
| 752 | 2607000162 | |||
| No information available, not orderable | ||||
| 753 | 2607000170 | |||
| No information available, not orderable | ||||
| 754 | 1609390478 | |||
| Flat Brush | ||||
| 754/10 | 1609390493 | 21.30 | 25.77 | |
| Flat Brush | ||||
| 754/20 | 1609390494 | 11.37 | 13.76 | |
| Strip brush | ||||
| 754/30 | 1609390495 | 14.94 | 18.08 | |
| No information available, not orderable | ||||
| 755 | 2607000165 | |||
| No information available, not orderable | ||||
| 756 | 1609201229 | |||
| No information available, not orderable | ||||
| 757 | 1609201230 | |||
| No information available, not orderable | ||||
| 759 | 2607000166 | |||
| Brush Insert | ||||
| 759/20 | 1609202534 | 2.86 | 3.46 | |
| No information available, not orderable | ||||
| 761 | 1609390481 | |||
| No information available, not orderable | ||||
| 762 | 2607000168 | |||
| No information available, not orderable | ||||
| 764 | 1600499005 | |||
| No information available, not orderable | ||||
| 765 | 1609200933 | |||
| No longer available, no replacement | ||||
| 773 | 2601411062 | |||
| No information available, not orderable | ||||
| 777 | 2607001248 | |||
| No information available, not orderable | ||||
| 780 | 2607000167 | |||
| Fitting | ||||
| 780/20 | 1609390577 | 5.81 | 7.03 | |
| No information available, not orderable | ||||
| 782 | 1609200968 | |||
| No information available, not orderable | ||||
| 783 | 2607000169 | |||
| No information available, not orderable | ||||
| 784 | 1609200970 | |||
| No longer available, no replacement | ||||
| 784/10 | 1609201109 | |||
| No longer available, no replacement | ||||
| 784/20 | 1609201110 | |||
| No information available, not orderable | ||||
| 786 | 1609200971 | |||
| No information available, not orderable | ||||
| 787 | 1609200976 | |||
| No information available, not orderable | ||||
| 822 | 1609203G98 | |||
