Here you will find all available parts and drawings of the 'Bosch 3601J7C100 (GAS12-25PL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

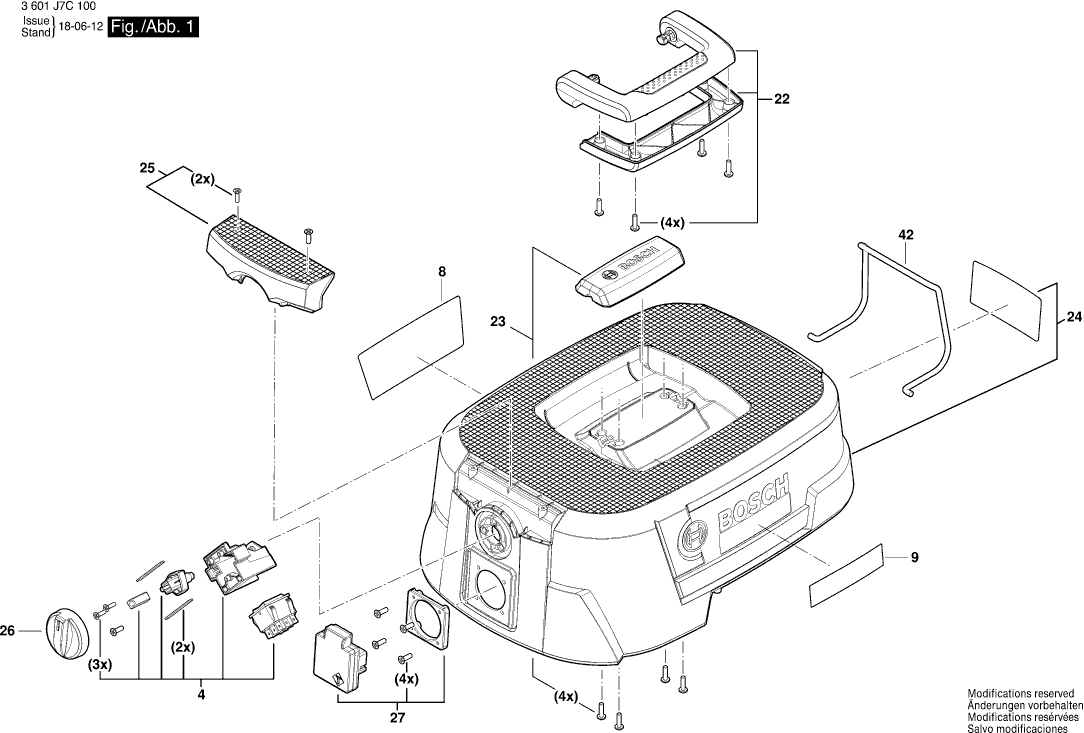

Technical drawing of model Bosch 3601J7C100 (GAS12-25PL)
Spare parts list of model Bosch 3601J7C100 (GAS12-25PL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB3211 | 16.79 | 20.32 | |
| Motor | ||||
| 2 | 1619PB3212 | 80.26 | 97.11 | |
| Switch Kit | ||||
| 4 | 1619PB3890 | 12.82 | 15.51 | |
| Power supply cord | ||||
| 5 | 1619PB3218 | 31.42 | 38.02 | |
| Clamping Piece | ||||
| 7 | 1619PA7304 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619PB3240 | 2.40 | 2.90 | |
| Nameplate GAS 12-25 PL | ||||
| 9 | 1619PB3250 | 2.40 | 2.90 | |
| Inductor | ||||
| 12 | 1619PB3252 | 6.73 | 8.14 | |
| Handle | ||||
| 22 | 1619PA7266 | 3.44 | 4.16 | |
| Cover | ||||
| 23 | 1619PA7269 | 1.00 | 1.21 | |
| Hood | ||||
| 24 | 1619PB3254 | 27.81 | 33.65 | |
| Cover | ||||
| 25 | 1619PA7268 | 3.44 | 4.16 | |
| Rotary Knob | ||||
| 26 | 1619PA7290 | 1.49 | 1.80 | |
| Socket | ||||
| 27 | 1619PA7409 | 9.67 | 11.70 | |
| Electronics Module | ||||
| 28 | 1619PB3262 | 43.12 | 52.18 | |
| Cushion | ||||
| 30 | 1619PB3265 | 7.46 | 9.03 | |
| Sponge | ||||
| 31 | 1619PB3266 | 2.40 | 2.90 | |
| Seal | ||||
| 32 | 1619PB3267 | 2.08 | 2.52 | |
| Seal | ||||
| 33 | 1619PB3268 | 7.46 | 9.03 | |
| Container | ||||
| 34 | 1619PB3269 | 47.53 | 57.51 | |
| Caster Wheel | ||||
| 35 | 1619PB3270 | 10.90 | 13.19 | |
| Wheel | ||||
| 36 | 1619PB3271 | 21.30 | 25.77 | |
| Latch | ||||
| 37 | 1619PB3272 | 5.81 | 7.03 | |
| Cable | ||||
| 38 | 1619PB3273 | 3.44 | 4.16 | |
| Valve | ||||
| 39 | 1619PA7306 | 2.40 | 2.90 | |
| Cover | ||||
| 40 | 1619PB3274 | 2.86 | 3.46 | |
| Clamping Ring | ||||
| 41 | 1619PB3275 | 1.00 | 1.21 | |
| Mounting Bracket | ||||
| 42 | 1619PB3276 | 4.18 | 5.06 | |
| Housing | ||||
| 43 | 1619PB3277 | 21.30 | 25.77 | |
| Seal | ||||
| 44 | 1619PB3278 | 1.49 | 1.80 | |
| Seal | ||||
| 45 | 1619PB3279 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 46 | 1619PB3280 | |||
| Filter Bracket | ||||
| 47 | 1619PB3281 | 8.35 | 10.10 | |
| Filter | ||||
| 48 | 1619PB3282 | 39.14 | 47.36 | |
| Filter holder | ||||
| 49 | 1619PA7316 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 50 | 1619PB3283 | |||
| Filter | ||||
| 51 | 1619PS8537 | 2.40 | 2.90 | |
| Filter | ||||
| 51 | 1619PB3284 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 52 | 1619PB3285 | 1.00 | 1.21 | |
| Rope | ||||
| 53 | 1619PB3255 | 5.81 | 7.03 | |
| Sticker | ||||
| 54 | 1619PB3256 | 2.18 | 2.64 | |
| Container | ||||
| 340 | 1619PC0025 | 52.45 | 63.46 | |
| Housing | ||||
| 430 | 1619PC0022 | 31.42 | 38.02 | |
| Seal | ||||
| 440 | 1619PC0023 | 4.94 | 5.98 | |
| Filter | ||||
| 500 | 1600A02EM2 | 43.12 | 52.18 | |
| Hose | ||||
| 651 | 1619PS0984 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 652 | 1619PA7325 | |||
| Suction Pipe | ||||
| 653 | 1619PA7324 | 14.94 | 18.08 | |
| Floor nozzle | ||||
| 654 | 1619PA7327 | 9.67 | 11.70 | |
| Crevice Nozzle | ||||
| 655 | 1619PA7328 | 2.40 | 2.90 | |
| Dust Bag | ||||
| 657 | 1619PB3827 | 8.35 | 10.10 | |
| Dust Bag | ||||
| 657 | 1619PA7329 | 2.08 | 2.52 | |
| Adapter | ||||
| 658 | 1600A030KS | 5.81 | 7.03 | |
| Adapter | ||||
| 658 | 1619PA7326 | 5.27 | 6.38 | |
| Dust Bag | ||||
| 659 | 1619PB4751 | 9.67 | 11.70 | |
| Hose | ||||
| 660 | 1619PB4750 | 21.30 | 25.77 | |
| Hose Blowing out | ||||
| 666 | 1607000EC3 | 34.82 | 42.13 | |
| Housing | ||||
| 843 | 1619PC0026 | 122.80 | 148.59 | |
