Here you will find all available parts and drawings of the 'Bosch 0601971273 (GAS1000RF)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

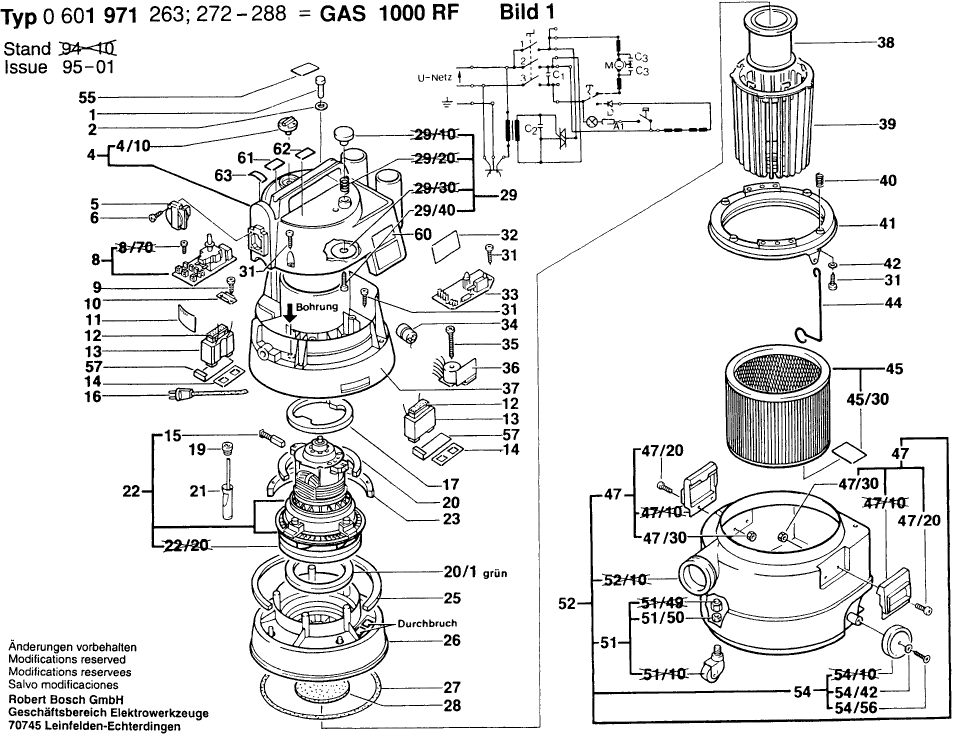

Technical drawing of model Bosch 0601971273 (GAS1000RF)
Spare parts list of model Bosch 0601971273 (GAS1000RF)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Indicator Lamp | ||||
| 1 | 1609201654 | 6.73 | 8.14 | |
| Seal Ring | ||||
| 2 | 1609201655 | 1.49 | 1.80 | |
| Covering hood | ||||
| 4 | 1609202365 | 47.53 | 57.51 | |
| Switch Button | ||||
| 4/10 | 1609203721 | 11.37 | 13.76 | |
| Socket | ||||
| 5 | 1609200948 | 18.94 | 22.92 | |
| Tapping Screw | ||||
| 6 | 2910612519 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 8 | 1609201658 | |||
| Tapping Screw | ||||
| 9 | 2910211208 | 1.00 | 1.21 | |
| Clamp | ||||
| 10 | 1609201659 | 2.40 | 2.90 | |
| Nameplate | ||||
| 11 | 1601110866 | 2.40 | 2.90 | |
| Damping Plate | ||||
| 12 | 1609201660 | 1.49 | 1.80 | |
| Attachment Vibrator | ||||
| 13 | 1609201662 | 110.30 | 133.46 | |
| Sealing disk | ||||
| 14 | 1609201663 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 15 | 1609201664 | |||
| Power supply cord | ||||
| 16 | 1609201665 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 17 | 1609201666 | |||
| Seal Ring | ||||
| 19 | 1609201668 | 2.08 | 2.52 | |
| Seal Ring | ||||
| 20 | 1609201669 | 5.81 | 7.03 | |
| Seal Ring | ||||
| 20/1 | 1609201669 | 5.81 | 7.03 | |
| Guide Sleeve | ||||
| 21 | 1609202573 | 3.44 | 4.16 | |
| Suction Blower | ||||
| 22 | 1609202695 | 273.59 | 331.04 | |
| No longer available, no replacement | ||||
| 23 | 1609201672 | |||
| No longer available, no replacement | ||||
| 25 | 1609201674 | |||
| Intermediate Flange | ||||
| 26 | 1609201675 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 27 | 1609201676 | |||
| No longer available, no replacement | ||||
| 28 | 1609201677 | |||
| Push-Button | ||||
| 29 | 1609201678 | 7.46 | 9.03 | |
| Tapping Screw | ||||
| 29/40 | 2910611015 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 31 | 2910611015 | 1.90 | 2.30 | |
| Manufacturer's nameplate | ||||
| 32 | 1601110712 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 33 | 1609201679 | |||
| Pressure Switch | ||||
| 34 | 1609201680 | 14.94 | 18.08 | |
| Tapping Screw | ||||
| 35 | 1609201681 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 36 | 1609203C05 | |||
| Intermediate housing | ||||
| 37 | 1609201683 | 31.42 | 38.02 | |
| No longer available, no replacement | ||||
| 38 | 1609200952 | |||
| No longer available, no replacement | ||||
| 39 | 1609201684 | |||
| Compression Spring | ||||
| 40 | 1609201685 | 2.40 | 2.90 | |
| Retaining snap ring | ||||
| 41 | 1609203182 | 64.67 | 78.25 | |
| Plain Washer | ||||
| 42 | 1609202726 | 1.50 | 1.82 | |
| Retaining Bracket | ||||
| 44 | 1609202406 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 45 | 1609202378 | |||
| Reference Plate | ||||
| 45/30 | 1601110830 | 2.40 | 2.90 | |
| Bent-Lever Closure | ||||
| 47 | 1609201690 | 11.37 | 13.76 | |
| Socket head cap screw | ||||
| 47/20 | 2910021193 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 47/30 | 2915011007 | 1.00 | 1.21 | |
| Impeller | ||||
| 51 | 1609201691 | 12.82 | 15.51 | |
| Hex Nut | ||||
| 51/50 | 2915011009 | 2.40 | 2.90 | |
| Dust container | ||||
| 52 | 1609201692 | 155.51 | 188.17 | |
| No longer available, no replacement | ||||
| 54 | 1609202221 | |||
| Plain Washer | ||||
| 54/42 | 1609202726 | 1.50 | 1.82 | |
| Tapping Screw | ||||
| 54/56 | 2910611027 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 55 | 1601110713 | 4.94 | 5.98 | |
| Leaf Spring | ||||
| 57 | 1609202192 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 704 | 2607432010 | |||
| No longer available, no replacement | ||||
| 705 | 1609201627 | |||
| No longer available, no replacement | ||||
| 705/20 | 1609201661 | |||
| No longer available, no replacement | ||||
| 750 | 2607000163 | |||
| Air Hose | ||||
| 750/1 | 1609202230 | 1.00 | 1.21 | |
| Setting Tube | ||||
| 751 | 2607000164 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 752 | 2607000162 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 753 | 2607000170 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 754 | 1609390478 | 1.00 | 1.21 | |
| Flat Brush | ||||
| 754/10 | 1609390493 | 21.30 | 25.77 | |
| Flat Brush | ||||
| 754/20 | 1609390494 | 11.37 | 13.76 | |
| Strip brush | ||||
| 754/30 | 1609390495 | 14.94 | 18.08 | |
| Crevice Nozzle | ||||
| 755 | 2607000165 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 756 | 1609201229 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 757 | 1609201230 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 759 | 2607000166 | 1.00 | 1.21 | |
| Brush Insert | ||||
| 759/20 | 1609202534 | 2.86 | 3.46 | |
| Suction Brush | ||||
| 761 | 1609390481 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 762 | 2607000168 | 1.00 | 1.21 | |
| Fitting | ||||
| 764 | 1600499005 | 1.00 | 1.21 | |
| Reduction Sleeve | ||||
| 765 | 1609200933 | 1.00 | 1.21 | |
| Air Hose | ||||
| 780 | 2607000167 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 782 | 1609200968 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 783 | 2607000169 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 784 | 1609200970 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 784/10 | 1609201109 | |||
| No longer available, no replacement | ||||
| 784/20 | 1609201110 | |||
| Crevice Nozzle | ||||
| 786 | 1609200971 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 787 | 1609200976 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 788 | 1609201235 | |||
