Here you will find all available parts and drawings of the 'Bosch 0601972703 (GAS10-50RFH)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

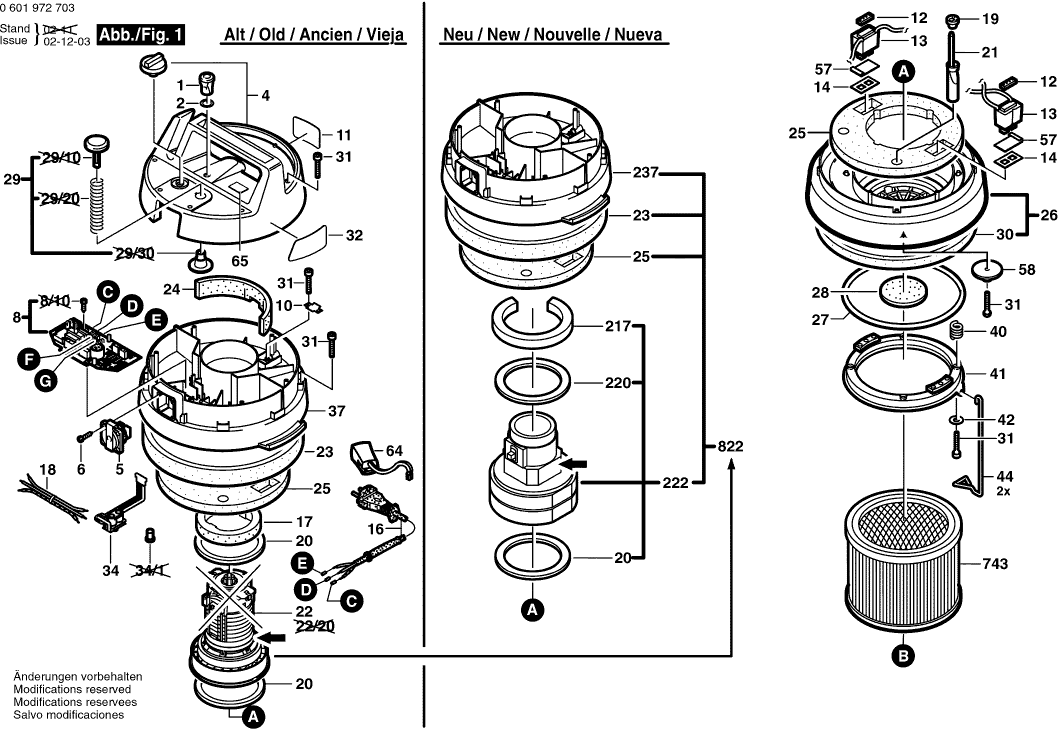

Technical drawing of model Bosch 0601972703 (GAS10-50RFH)
Spare parts list of model Bosch 0601972703 (GAS10-50RFH)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Indicator Lamp | ||||
| 1 | 1609201654 | 6.73 | 8.14 | |
| Seal Ring | ||||
| 2 | 1609201655 | 1.49 | 1.80 | |
| Covering hood | ||||
| 4 | 1609202713 | 35.58 | 43.05 | |
| Socket | ||||
| 5 | 1609200948 | 18.94 | 22.92 | |
| Tapping Screw | ||||
| 6 | 2910601412 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 6 | 2910611015 | 1.90 | 2.30 | |
| On-Off Switch | ||||
| 8 | 1609202734 | 320.45 | 387.74 | |
| Cable Clip | ||||
| 10 | 1609202693 | 1.24 | 1.50 | |
| Nameplate | ||||
| 11 | 1601118199 | 0.83 | 1.00 | |
| Damping Plate | ||||
| 12 | 1609201660 | 1.49 | 1.80 | |
| Attachment Vibrator | ||||
| 13 | 1609201662 | 110.30 | 133.46 | |
| Sealing disk | ||||
| 14 | 1609201663 | 2.08 | 2.52 | |
| Power supply cord | ||||
| 16 | 1609202714 | 47.68 | 57.69 | |
| No longer available, no replacement | ||||
| 17 | 1609201666 | |||
| Cable Set | ||||
| 18 | 1609202766 | 4.12 | 4.99 | |
| Seal Ring | ||||
| 19 | 1609201668 | 2.08 | 2.52 | |
| Seal Ring | ||||
| 20 | 1609201669 | 5.81 | 7.03 | |
| Guide Sleeve | ||||
| 21 | 1609202735 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 23 | 1609203478 | |||
| No longer available, no replacement | ||||
| 24 | 1609202764 | |||
| No longer available, no replacement | ||||
| 25 | 1609203423 | |||
| Intermediate Flange | ||||
| 26 | 1609203474 | 35.58 | 43.05 | |
| No longer available, no replacement | ||||
| 27 | 1609201676 | |||
| No longer available, no replacement | ||||
| 28 | 1609201677 | |||
| Rotary Knob | ||||
| 29 | 1609202767 | 11.94 | 14.45 | |
| No longer available, no replacement | ||||
| 30 | 1609202765 | |||
| Tapping Screw | ||||
| 31 | 2910611015 | 1.90 | 2.30 | |
| Manufacturer's nameplate | ||||
| 32 | 1601118200 | 6.96 | 8.42 | |
| Pressure Switch | ||||
| 34 | 1609202736 | 65.16 | 78.84 | |
| Intermediate housing | ||||
| 37 | 1609203187 | 31.65 | 38.30 | |
| Compression Spring | ||||
| 40 | 1609201685 | 2.40 | 2.90 | |
| Retaining snap ring | ||||
| 41 | 1609203182 | 64.67 | 78.25 | |
| Plain Washer | ||||
| 42 | 1609201687 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 44 | 1609203417 | |||
| Leaf Spring | ||||
| 57 | 1609202192 | 1.49 | 1.80 | |
| Damping Disc | ||||
| 58 | 1609203714 | 1.24 | 1.50 | |
| Siren | ||||
| 64 | 1609202738 | 50.23 | 60.78 | |
| Sticker | ||||
| 65 | 1609202742 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 217 | 1609203B12 | |||
| Seal Ring | ||||
| 220 | 1609203B13 | 5.96 | 7.21 | |
| Suction Blower | ||||
| 222 | 1609203Z37 | 262.05 | 317.08 | |
| No longer available, no replacement | ||||
| 237 | 1609203B15 | |||
| Fitting | ||||
| 650/20 | 1609203V36 | 23.90 | 28.92 | |
| Dust container | ||||
| 690 | 1609202728 | 141.37 | 171.06 | |
| Impeller | ||||
| 690/10 | 1609202703 | 5.96 | 7.21 | |
| Carrying Handle | ||||
| 690/100 | 1609202710 | 10.34 | 12.51 | |
| Cover Ring | ||||
| 690/110 | 1609202723 | 3.48 | 4.21 | |
| Vacuum Connection | ||||
| 690/120 | 1609202730 | 2.87 | 3.47 | |
| Plain Washer | ||||
| 690/130 | 1609202731 | 1.32 | 1.60 | |
| Impeller | ||||
| 690/20 | 1609202712 | 30.08 | 36.40 | |
| Plug | ||||
| 690/30 | 1609202727 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 690/40 | 1609202708 | |||
| Tapping Screw | ||||
| 690/50 | 2910611012 | 2.08 | 2.52 | |
| Plain Washer | ||||
| 690/60 | 1609202726 | 1.50 | 1.82 | |
| Roller Axle | ||||
| 690/70 | 1609202709 | 12.21 | 14.77 | |
| Tapping Screw | ||||
| 690/80 | 2910611015 | 1.90 | 2.30 | |
| Plain Washer | ||||
| 690/90 | 1609202725 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 743 | 2607432003 | |||
| Air Hose | ||||
| 750 | 2607000182 | 0.83 | 1.00 | |
| Air Hose | ||||
| 750/1 | 2607000209 | 0.83 | 1.00 | |
| Fitting | ||||
| 750/20 | 1609203V36 | 23.90 | 28.92 | |
| Suction Pipe | ||||
| 752 | 2607000162 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 753 | 2607000170 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 754 | 1609390478 | 1.00 | 1.21 | |
| Flat Brush | ||||
| 754/10 | 1609390493 | 21.30 | 25.77 | |
| Flat Brush | ||||
| 754/20 | 1609390494 | 11.37 | 13.76 | |
| Strip brush | ||||
| 754/30 | 1609390495 | 14.94 | 18.08 | |
| Crevice Nozzle | ||||
| 755 | 2607000165 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 792 | 2605411063 | |||
| Modification Set | ||||
| 822 | 1609203G98 | 285.84 | 345.87 | |
