Here you will find all available parts and drawings of the 'Bosch 0611221603 ( GAH500DSE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

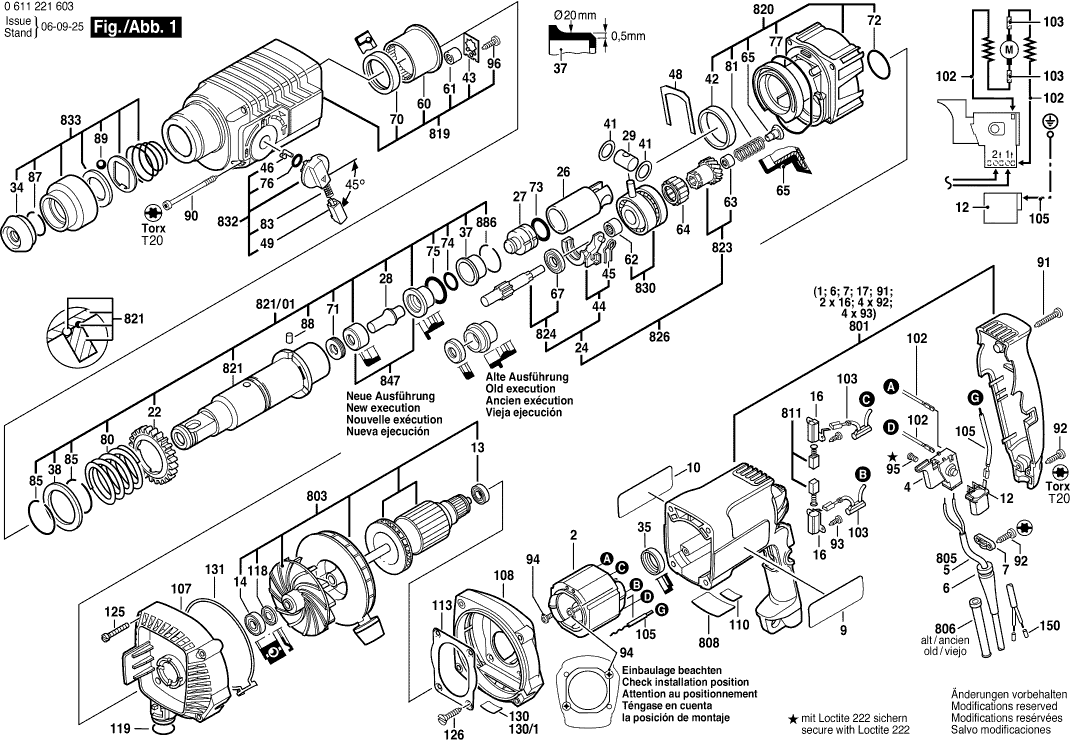

Technical drawing of model Bosch 0611221603 ( GAH500DSE )

Spare parts list of model Bosch 0611221603 ( GAH500DSE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 220-230V
2 2604220491 18.19 22.01
No longer available, no replacement
4 1617200089
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
5 1614460026 13.93 16.86
Grommet Ø7,3-Ø8,6x76 MM
6 2600703018 1.94 2.35
Cable Clip
7 1611035005 1.70 2.06
Manufacturer's nameplate
9 1611110651 3.31 4.01
Reference Plate
10 1611110652 3.31 4.01
Suppression Filter
12 1607328040 5.33 6.45
groove ball bearing 7x19x6
13 1610905032 4.10 4.96
groove ball bearing 9x24x7
14 1610905048 6.54 7.91
Brush Holder
16 2604337016 0.83 1.00
Cylindrical Gear Z=50
22 1616317602 9.53 11.53
Toothed Shaft Z=3/9
24 1617000518 36.85 44.59
No longer available, no replacement
26 1618700062
Striker
27 1618710057 12.41 15.02
Striker Pin
28 1613124040 4.10 4.96
Piston Pin
29 1613105012 2.71 3.28
Protective Cap L=17 MM, SDS-PLUS
34 1610508008 1.70 2.06
Rubber Ring
35 1610206021 1.18 1.43
Damping Bushing
37 1610390017 4.10 4.96
Supporting Disc
38 1610102026 1.94 2.35
Shim washer 1,2 MM THICK
41 1610101011 1.18 1.43
Plain bearing
42 1610202015 2.24 2.71
Tab Washer
43 1611098005 2.24 2.71
Switching Element
44 1615820092 1.94 2.35
Switch Spring
45 1614651014 1.18 1.43
Driver Pin
46 1614690002 1.18 1.43
Holding Plate
48 1611016003 1.70 2.06
Switch Button RED
49 1612026035 1.18 1.43
Needle-Roller Bearing
60 1610910073 8.45 10.22
Needle bearing
61 1610910098 2.71 3.28
Needle bearing
62 1610910074 2.71 3.28
No longer available, no replacement
63 1610910064
Needle-Roller Assembly
64 1610913010 3.31 4.01
Plain bearing
65 1610591016 2.24 2.71
groove ball bearing
67 1610905016 7.58 9.17
Shaft Seal
70 1610283019 5.83 7.05
Scraper
71 1610290029 2.71 3.28
O-Ring 24,0x2,5 MM
72 1610210068 1.18 1.43
O-Ring
73 1610210187 1.70 2.06
O-Ring 11,0x3,5 MM
74 1610210104 1.94 2.35
O-Ring 18,0x3,5 MM
75 1610210105 3.31 4.01
O-Ring 10,5x2,7 MM
76 1610210046 1.70 2.06
O-Ring 60,0x3,0 MM
77 1610210106 1.94 2.35
Compression Spring
80 1614634005 1.18 1.43
Compression Spring
81 1614611009 1.18 1.43
Compression Spring
83 1614611006 2.71 3.28
Retaining ring
85 1614601011 1.18 1.43
Retaining ring
87 160460102S 0.83 1.00
Roller
88 1613200007 1.18 1.43
Ball DIN 5401-Ø7MM-III-ST
89 1903230013 1.70 2.06
Socket head cap screw DIN 84-M5x65-4.8
90 1613410004 1.18 1.43
Lens Head Screw 4x32
91 2603490026 0.83 1.00
Torx Oval-Head Screw 4x20
92 2603490023 0.83 1.00
Tapping Screw DIN 7971-ST2,9x9,5-F
93 2910211005 0.83 1.00
Cross Recessed-Head Screw DIN 7981-ST3,5x9,5-F
94 2603435015 1.70 2.06
Socket head cap screw M3x6,5-4.8
95 2603410001 1.18 1.43
Tapping Screw DIN7981-ST3,9x13-C-Z
96 2912401018 0.83 1.00
Cable L=130 MM WHITE
102 2604448005 1.18 1.43
Suppression Filter L=55 MM WHITE
103 1614465008 5.83 7.05
Earth Conductor
105 1614449011 1.70 2.06
Blower Casing
107 1615190042 23.75 28.74
Fan Housing
108 1615190044 15.71 19.01
Profile Plate
113 1611038017 4.10 4.96
Sealing disk 609 AV NILOS-RING
118 2916130027 2.24 2.71
O-Ring 23,0x3,0 MM
119 1610210045 1.94 2.35
Auxiliary Handle M8
120 1612025019 5.33 6.45
Support clamp Ø43 MM
121 1618040048 6.54 7.91
T-Head Bolt M8x40 MM
122 1613490002 3.31 4.01
Clamping Band Ø43 MM
123 1611316006 1.94 2.35
Socket head cap screw DIN 84-AM5x35-8.8
125 2910021168 0.83 1.00
Recessed or Countersunk Head Tapping Screw
126 1613435005 1.94 2.35
No longer available, no replacement
130 1601110265
Sealing Frame
131 1611015039 2.24 2.71
Plug
653 1610591008 2.71 3.28
No information available, not orderable
700 1617000132
Countersunk-Head Screw M6x27 LEFTHAND THREADS
700/20 2603421226 1.18 1.43
Chuck
701 1608571088 23.75 28.74
Chuck Wrench SG2
701/700 2607950007 5.33 6.45
No longer available, no replacement
711 1617000133
Retaining ring
711/10/2 2604601004 1.18 1.43
Auxiliary Handle Ø43 MM
720 2602025070 11.88 14.37
Suction Device
727 1607000263 0.83 1.00
Corrugated Hose Ø 16,5x550 MM
728 1610712042 8.45 10.22
No longer available, no replacement
729 2605411044
Supporting Frame
729/10 1615190046 36.85 44.59
Support clamp
729/30 1612386001 2.24 2.71
Sliding Disc
729/40 1619200408 0.83 1.00
Union Nut
729/50 1619200409 2.24 2.71
Sealing disk
729/60 1610121001 1.18 1.43
Hose fitting
751 2607000178 0.83 1.00
O-Ring 23,0x3,0 MM
751/10 1610210045 1.94 2.35
Paper Bag 10 Pieces
752 1615411003 0.83 1.00
No information available, not orderable
754 2605411043
No information available, not orderable
755 1618580000
Flexible Connection
760 2607000176 0.83 1.00
PVC Hose
760/10 2600712004 0.83 1.00
Hose fitting
760/20 2605702024 0.83 1.00
No longer available, no replacement
760/30 2605702025
No information available, not orderable
761 1610793002
Motor Housing BLUE
801 1615108062 23.75 28.74
Armature With Fan 230V
803 1614010193 101.94 123.35
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1614460026 13.93 16.86
Grommet Ø8,3-Ø9,4x95 MM
806 2600703011 2.24 2.71
Grommet Ø7,6-Ø8,2x95 MM
806 2600703013 1.94 2.35
Nameplate
808 160111A3H5 1.94 2.35
No longer available, no replacement
811 1607014117
Housing Cover BLUE
817 1615132047 4.70 5.69
Gear Housing BLACK
819 1615806093 44.82 54.23
Intermediate Flange
820 1617000981 23.75 28.74
Ratchet Sleeve SDS-PLUS
821 1616490061 55.25 66.85
Ratchet Sleeve SDS-PLUS
821/01 1616490060 73.72 89.20
Gear Sleeve Z=26/6
823 1616328042 36.85 44.59
Toothed Shaft Z=3/9
826 1617000517 73.72 89.20
Drive bearing
830 1615819018 55.25 66.85
Clamp Handle BLACK
832 1612026037 7.58 9.17
Protection Sleeve SDS-PLUS
833 1617000163 5.83 7.05
Guide Ring
847 1617000348 11.88 14.37
Retaining ring
886 1614601024 1.18 1.43
